Question

can someone explain to me how to determine if I have outliers and if I do have outlier?

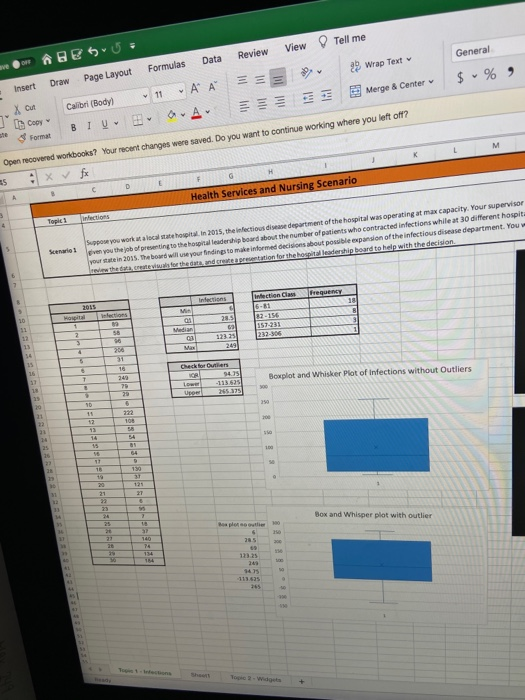

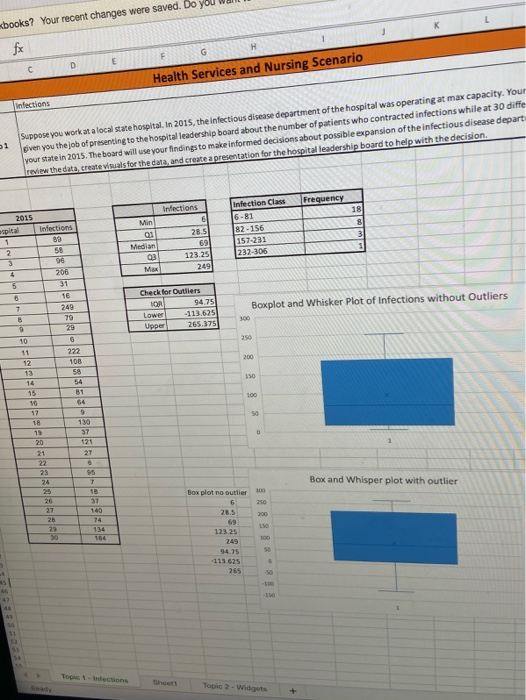

books? Your recent changes were saved. Do fx C D E G H Health Services and Nursing Scenario Infections 1 Suppose you work at a local state hospital. In 2015, the infectious disease department of the hospital was operating at max capacity. Your given you the job of presenting to the hospital leadership board about the number of patients who contracted infections while at 30 diffe your state in 2015. The board will use your findings to make informed decisions about possible expansion of the infectious disease depart review the data, create visuals for the data and create a presentation for the hospital leadership board to help with the decision Frequency 2015 spital 1 Min Qi Median 03 Infections 6 28 69 123.25 249 Infection Class 16-81 82-156 157-231 232-305 18 8 3 1 2 3 M 4 5 6 Infections 80 50 96 206 31 se 249 70 29 94.75 Check for Outliers TOR Lower -113.6251 Upper 265.375 7 Boxplot and Whisker Plot of Infections without Outliers 300 B 9 250 10 11 200 6 222 108 58 54 81 9 12 13 14 15 10 17 1 15 20 21 22 23 24 130 37 120 Box and Whisper plot with outlier 300 7 18 37 140 Box plot no outler 6 28.5 250 200 27 26 29 30 123.25 249 94.75 -113 625 265 46 -10 Top 1 dections Topic 2 - Widgets

Answer 1

We can detect outliers using IQR as well as Boxplot.

Outlier detection using IQR :

Any data points below the (first quartile - 1.5×IQR ) and above the (Third quartile + 1.5×IQR) is considered as outliers in the data.

eg. Here IQR= 94.75, first quartile Q₁= 28.5 and third quartile Q₃= 123.25 so data points below the (28.5-(1.5×94.75)) and (123.25+(1.5×94.75)) is considered as outliers.

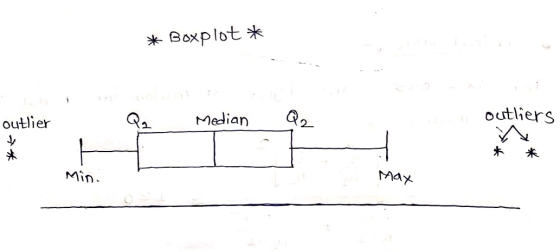

Outlier detection using Boxplot :

Points on the Boxplot that are outside outside of the whiskers i.e. far away from the minimum or maximum.

* Boxplot * outlier Median Q2 outliers * Min. Max

Hope this answers your question. If you understood, please rate positively. If you have any doubts please do comment.
