Question 19 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...

Question

Question

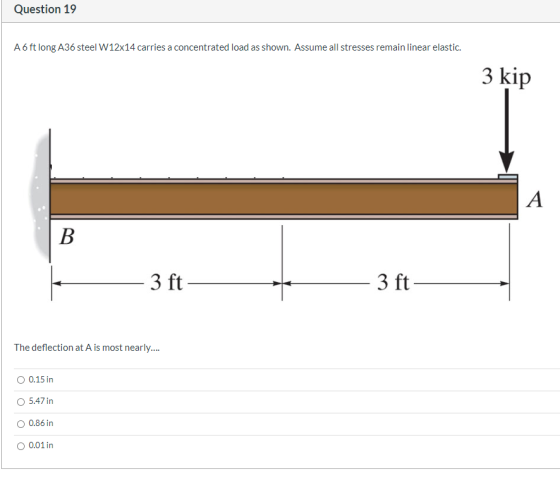

Question 19 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 ki

engineering Mechanical-Engineering

Answer 1

Answer #1

Given data l=oft = 72 in 3kip for A 36 stel E = fa 29000 ksi for Wladly X-Seetion beam by table ff K tw h = 11.91 in W: 3.97i

Answer 2

Similar Homework Help Questions

A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...

A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The deflection at A is most nearly.... 0 0.01 in O 0.86 in 05.47 in 0.15 in
Question 16 A6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all...

Question 16 A6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses remain linear elastic. 2 kip/ft A B C 3 ft 3 ft The deflection at A is most nearly.... 0.014 in 0.032 in 0.189 in 1.193 in Question 15 A6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses remain linear elastic. 2 kip/ft A B C 3 ft 3 ft The deflection at C is most nearly.......
Question 18 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...

Question 18 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 6.51 deg O N/A - there is no slope at A O 0.17 deg 1.03 deg

A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...

A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 0.17 deg O N/A - there is no slope at A 1.03 deg 6.51 deg
Question 17 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...

Question 17 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B - 3 ft 3 ft - The slope at B is most nearly.... O N/A - there is no slope at B 1.03 deg 0.17 deg 6.51 deg
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...

A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at B is most nearly.... 1.03 deg N/A - there is no slope at B 0.17 deg 6.51 deg

A6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses remain...

A6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses remain linear elastic. 2 kip/ft A B 3 ft 3 ft The deflection at A is most nearly.... O 1.193 in 0 0.014 in O 0.189 in O 0.032 in
A 6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses...

A 6 ft long A36 steel W12x14 carries a uniform load as shown. Assume all stresses remain linear elastic. 2 kip/ft A B 3 ft 3 ft The deflection at C is most nearly.... O 0.014 in O 0.511 in O 0.081 in O 0.002 in
b. The slope at A is most nearly…. Group of answer choices 6.51 deg 1.03 deg...

b. The slope at A is most nearly…. Group of answer choices 6.51 deg 1.03 deg N/A – there is no slope at A 0.17 deg c. The deflection at A is most nearly…. Group of answer choices 0.15 in 0.01 in 0.86 in 5.47 in A 6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at B is most nearly.......

a. A W12x14 A36 steel section is used as a column. If the column is 15...

a. A W12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly… Group of answer choices 783 kips 21 kips 150 kips 241 kips b. A W12x14 A36 steel section is used as a column. If the column is 5 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly…...
