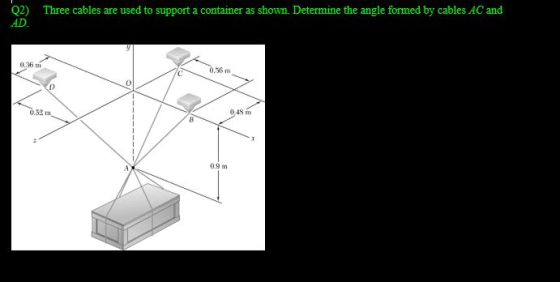

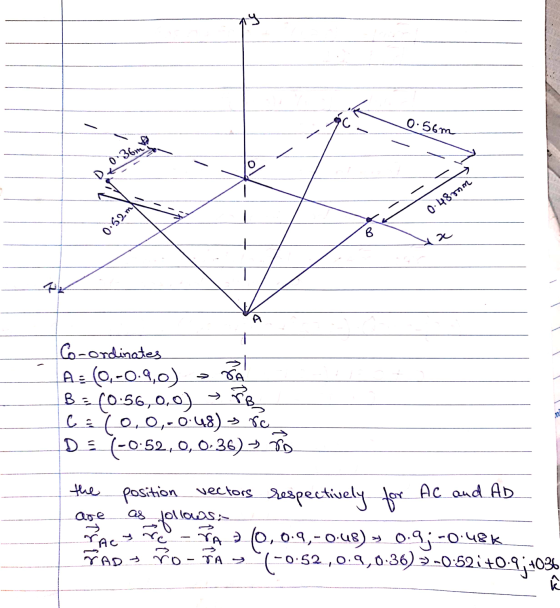

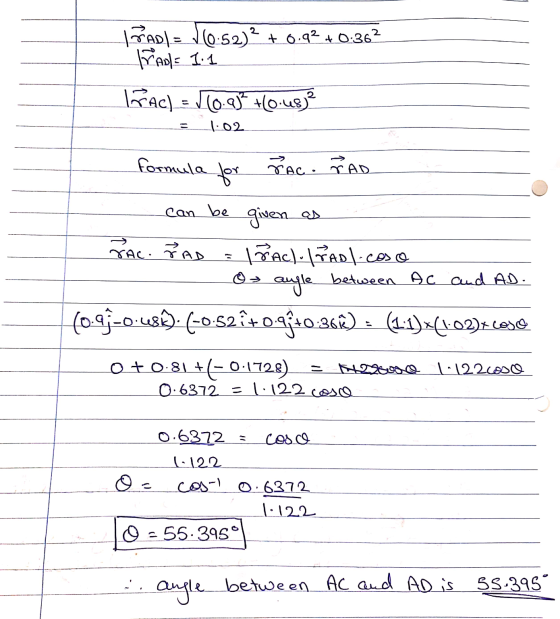

Q2) Three cables are used to support a container as shown. Determine the angle formed by...
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance...
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance from point B to the line AD (C) If the force in cable AC is 500N, find the component of that force in the direction of line AB If the force in cable AC is 500N, find the moment of this force about a line joining BD (D) What is the perpendicular distance from point B and cable AC? (E) 0.36 m 0.56 m...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
Tower OA is held by three cables that are attached to pin A as shown in...
Tower OA is held by three cables that are attached to pin A as shown in figure 6. The lengths of cables AB, AC and AD are 19.5 m, 25 m and 23 m respectively. The tower exerts an upward force of 9 kN on pin A. Determine the tension in the three cables. Given a= 15°. 16 m 20° Figure 6
A container is supported by three cables that are attached to a ceiling as shown
A container is supported by three cables that are attached to a ceiling as shown, Determine the weight of the container knowing that the tension in cable AB is 6 N.
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC
three cables are used to support two loads at B and C. 4. (25%) Three cables...
three cables are used to support two loads at B and
C.
4. (25%) Three cables are used to support two loads at B and C. The figure below shows the geometry of the system at equilibrium. Determine the cable tensions in AB, BC, and CD. D 30° A 120° С 60° B 500 N 750 N
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a ver...
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a vertical wall. Points A, B and C are on the y-z plane while Points C, D and E lie on the x-y plane. Line D-E and Line A-C-B are parallel to x-axis and z-axis, respectively. Given AC-CB and AB-AD-BD, W-10 kN and F -5 kN, determine the tension force in cables AD and BD. (7...
A container is supported by three cables that are attached to a ceiling as shown. Determine the weight W of the container, knowing that the tension in cable AB is 10 kN.
A container is supported by three cables that are attached to a ceiling as shown. Determine the weight W of the container, knowing that the tension in cable AB is 10 kN. The weight W of the container is _______ kN.
Problem#1 (7.5 points): Determine the force in the cables AD, AC and the elongation of the...
Problem#1 (7.5 points): Determine the force in the cables AD, AC and the elongation of the spring AB (k = 1.5 KN/m) necessary to support a mass of 40 kg as shown in the figure below. 60° 2 m 135 2 m 120 B k = 1.5 kN/my Problem#2 (7.5 points): Determine the force in the cables AD, AC, and AE necessary to support the structure shown in the figure below. FRE 9 m FAB = 3.5 kN 4.5 m...
3. The 6m x 6 m square steel plate shown is suspended at Aby three cables:...
3. The 6m x 6 m square steel plate shown is suspended at Aby three cables: AB, AC, and AD. If the tension in the hook AE is 40KN, determine the tension in each of the three cables. ZTE 40 KN A 4 m С В. 3 m х 3 m D 3 m 3 m V
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance from point B to the line AD (C) If the force in cable AC is 500N, find the component of that force in the direction of line AB If the force in cable AC is 500N, find the moment of this force about a line joining BD (D) What is the perpendicular distance from point B and cable AC? (E) 0.36 m 0.56 m...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
Tower OA is held by three cables that are attached to pin A as shown in figure 6. The lengths of cables AB, AC and AD are 19.5 m, 25 m and 23 m respectively. The tower exerts an upward force of 9 kN on pin A. Determine the tension in the three cables. Given a= 15°. 16 m 20° Figure 6
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC
three cables are used to support two loads at B and
C.
4. (25%) Three cables are used to support two loads at B and C. The figure below shows the geometry of the system at equilibrium. Determine the cable tensions in AB, BC, and CD. D 30° A 120° С 60° B 500 N 750 N
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a vertical wall. Points A, B and C are on the y-z plane while Points C, D and E lie on the x-y plane. Line D-E and Line A-C-B are parallel to x-axis and z-axis, respectively. Given AC-CB and AB-AD-BD, W-10 kN and F -5 kN, determine the tension force in cables AD and BD. (7...
Problem#1 (7.5 points): Determine the force in the cables AD, AC and the elongation of the spring AB (k = 1.5 KN/m) necessary to support a mass of 40 kg as shown in the figure below. 60° 2 m 135 2 m 120 B k = 1.5 kN/my Problem#2 (7.5 points): Determine the force in the cables AD, AC, and AE necessary to support the structure shown in the figure below. FRE 9 m FAB = 3.5 kN 4.5 m...
3. The 6m x 6 m square steel plate shown is suspended at Aby three cables: AB, AC, and AD. If the tension in the hook AE is 40KN, determine the tension in each of the three cables. ZTE 40 KN A 4 m С В. 3 m х 3 m D 3 m 3 m V
