Homework Answers
All forces pls 4 m 4 m 4 m Ey Ex E F H 2.5 m...
All forces pls
4 m 4 m 4 m Ey Ex E F H 2.5 m D A B С 3 kN 3 kN 3 kN
Can you find all the forces using methods of joint and methods of section? Ex, Ey,...
Can you find all the forces using methods of joint and methods

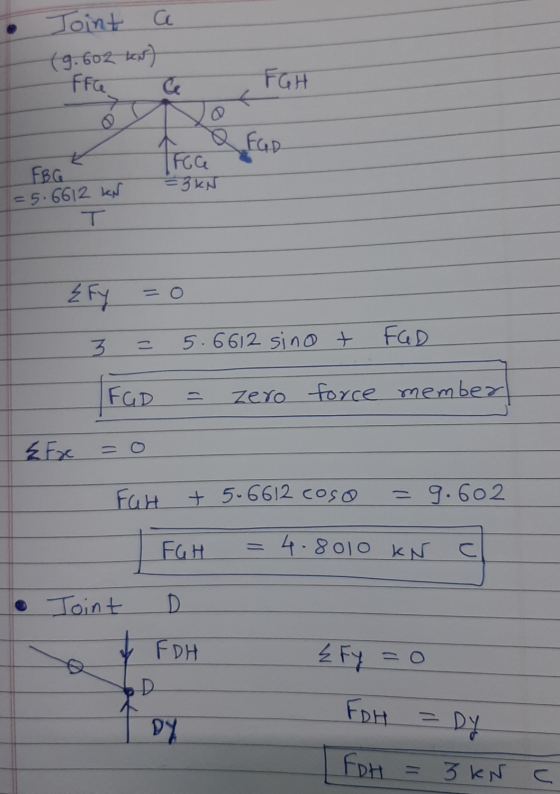

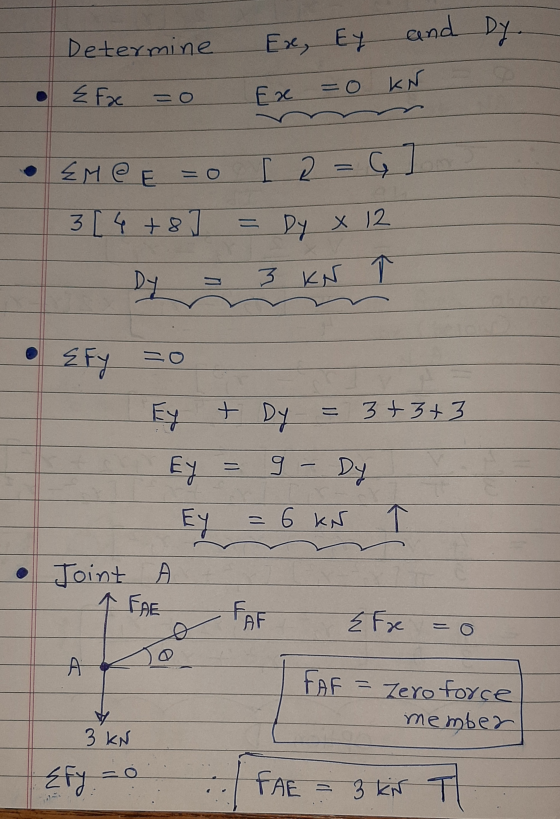

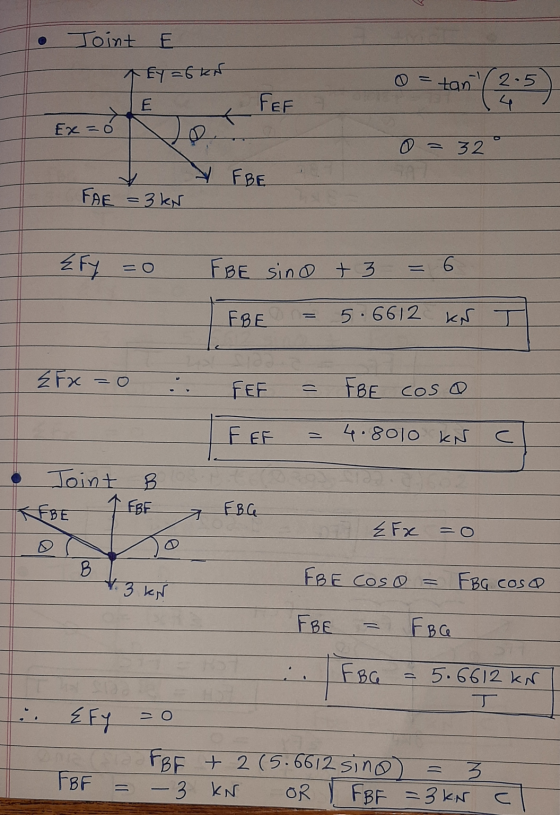

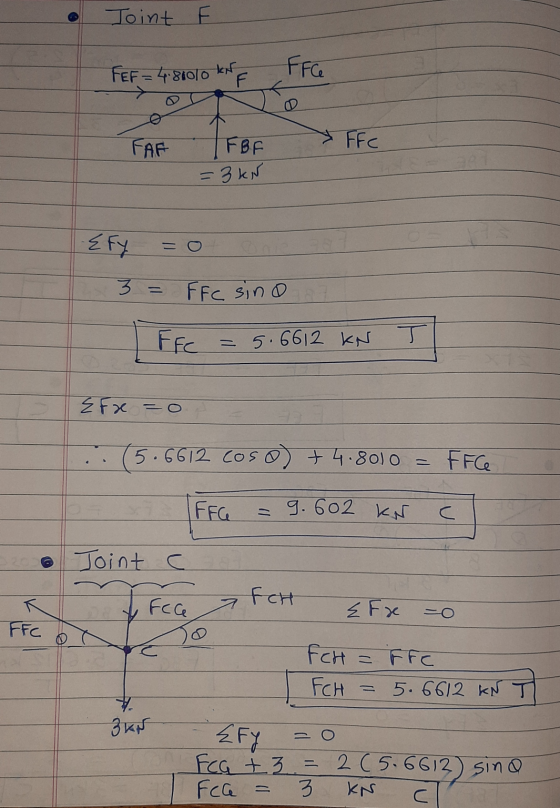

of section? Ex, Ey, Dy, Force EA, Force EF, Force EB, Force FG,
Force FB, Force FC, Force GD, Force GC, Force GH, Force HD. Thank
you!
Question Completion Status: Question 3 10 points What is the force on member FG (KN)? 4 m -4 m 4 m Ey Ex E F G H 2.5 m D A B с [: 13 kN 3 kN 3 kN DY
What is the force on member FG (KN)? -4 m -4 m 4 m EY EX...
What is the force on member FG (KN)? -4 m -4 m 4 m EY EX E F G H 2.5 m D A B [: (3 kN 3 kN 3 KN D
Q1 a) List all the zero force members in the truss below Find Forces in AB,...
Q1 a) List all the zero force members in the truss below Find Forces in AB, An and MN 2 m B C D E F G H I 2 KN 2 KN 5 KN 3 KN - 16 m, 8 @ 2 m
Q = 170 kN F = 80kN The x component of the reaction at E,Ex (in...
Q = 170 kN F = 80kN
The x component of the reaction at E,Ex (in kN)
The y component of the reaction at E, Ey (in kN)
The y component of the reaction at A, Ay (in kN)
The force in member ED (in kN)
The force in member IB (in kN)
The force in member IH (in kN)
Question 2
W = 115 lb P = 80 lb
The x component of the reaction at H,Hx (in lbs)...
Find the forces on each member Z С B D 6 m A E = 17...
Find
the forces on each member
Z С B D 6 m A E = 17 KN X 6 m 3 m 3 m у
Find all forces in Members AB AH BH BC CD CF GF (a) Determine the forces...
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] l...
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
For the armor shown, determine the forces on the BD and BF members. -4 m-fo4 m--fe-4...
For the armor shown, determine the forces on the BD and BF
members.
-4 m-fo4 m--fe-4 m-44 m- A В. C 6 m DC E F G H 20 kN 20 KN 20 KN
Find the internal forces for the truss shown below in member BF D 4 M EL...
Find the internal forces for the truss shown below in member BF D 4 M EL F 4 m 30KN - Select one: O a. 21.21 kN (T) b.21.21 KN (C) c. 15 kN (0) d. 15 kN (T) e. None of the above
All forces pls
4 m 4 m 4 m Ey Ex E F H 2.5 m D A B С 3 kN 3 kN 3 kN
Can you find all the forces using methods of joint and methods
of section? Ex, Ey, Dy, Force EA, Force EF, Force EB, Force FG,
Force FB, Force FC, Force GD, Force GC, Force GH, Force HD. Thank
you!
Question Completion Status: Question 3 10 points What is the force on member FG (KN)? 4 m -4 m 4 m Ey Ex E F G H 2.5 m D A B с [: 13 kN 3 kN 3 kN DY
What is the force on member FG (KN)? -4 m -4 m 4 m EY EX E F G H 2.5 m D A B [: (3 kN 3 kN 3 KN D
Q1 a) List all the zero force members in the truss below Find Forces in AB, An and MN 2 m B C D E F G H I 2 KN 2 KN 5 KN 3 KN - 16 m, 8 @ 2 m
Q = 170 kN F = 80kN
The x component of the reaction at E,Ex (in kN)
The y component of the reaction at E, Ey (in kN)
The y component of the reaction at A, Ay (in kN)
The force in member ED (in kN)
The force in member IB (in kN)
The force in member IH (in kN)
Question 2
W = 115 lb P = 80 lb
The x component of the reaction at H,Hx (in lbs)...
Find
the forces on each member
Z С B D 6 m A E = 17 KN X 6 m 3 m 3 m у
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
For the armor shown, determine the forces on the BD and BF
members.
-4 m-fo4 m--fe-4 m-44 m- A В. C 6 m DC E F G H 20 kN 20 KN 20 KN
Find the internal forces for the truss shown below in member BF D 4 M EL F 4 m 30KN - Select one: O a. 21.21 kN (T) b.21.21 KN (C) c. 15 kN (0) d. 15 kN (T) e. None of the above
