Question

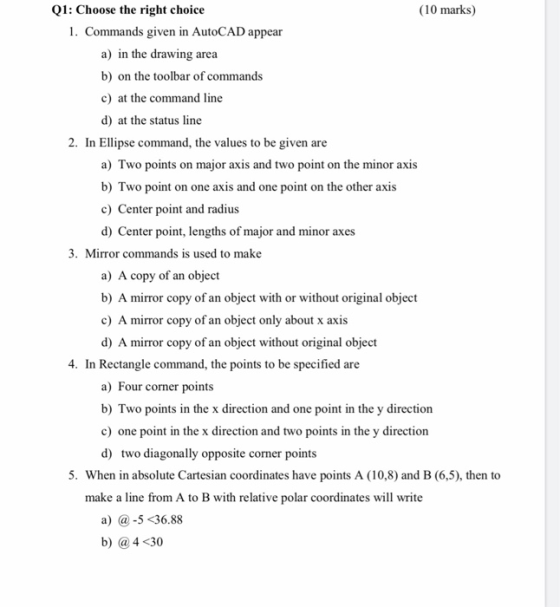

Q1: Choose the right choice (10 marks) 1. Commands given in AutoCAD appear a) in the drawing area b) on the toolbar of commands c) at the command line d) at the status line 2. In Ellipse command, the values to be given are a) Two points on major axis and two point on the minor axis b) Two point on one axis and one point on the other axis c) Center point and radius d) Center point, lengths of major and minor axes 3. Mirror commands is used to make a) A copy of an object b) A mirror copy of an object with or without original object c) A mirror copy of an object only about x axis d) A mirror copy of an object without original object 4. In Rectangle command, the points to be specified are a) Four corner points b) Two points in the x direction and one point in the y direction c) one point in the x direction and two points in the y direction d) two diagonally opposite corner points 5. When in absolute Cartesian coordinates have points A (10,8) and B (6,5), then to make a line from A to B with relative polar coordinates will write a) @-5 <36.88 b) @ 4 <30

Answer 1

1-C

2-D

3-A

4-D

5-A
