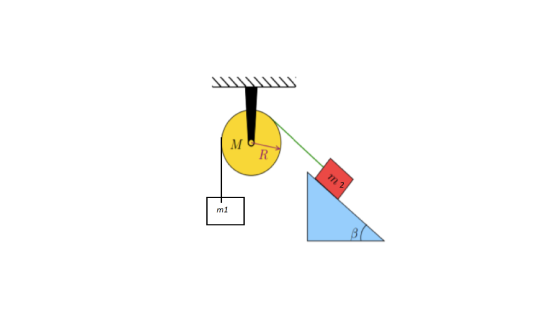

A pulley is set up in the following fashion on an incline
surface. The incline surface has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia,
and a mass M.
a. Find angular acceleration
b. Find the tension.
c. Find the reaction forces at the pulley
Homework Answers

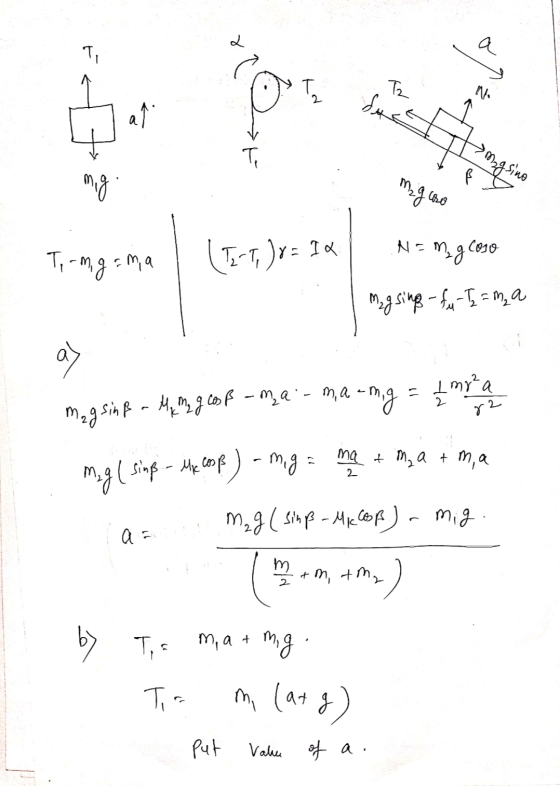

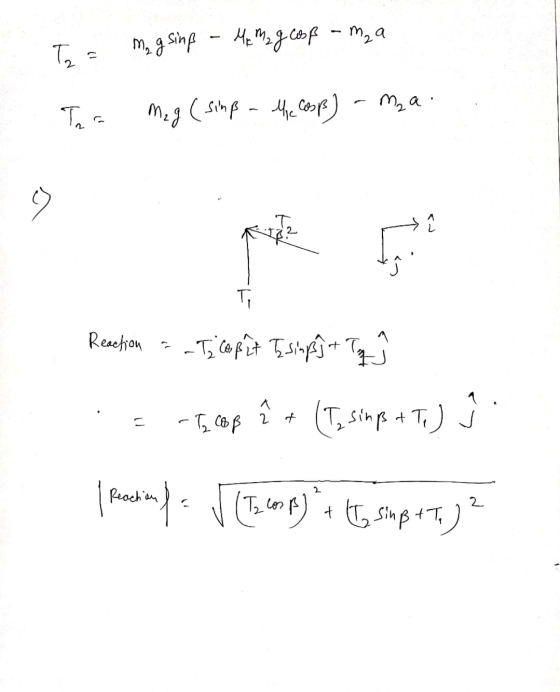

![Ma g sing - Mr Mag Cosp - mza 1 IN Tao Meg (sinß a Mic Casp) -maai r> quae Т. Reaction -Ti capit I siap] + Ty -Tz Coß ? + ît](http://img.homeworklib.com/questions/808007d0-ffcb-11ea-abd6-39e09208031d.png?x-oss-process=image/resize,w_560)
Add Answer to:
A pulley is set up in the following fashion on an incline
surface. The incline surface...
A pulley is set up on an incline surface. The incline surface has a static coefficient...
A pulley is set up on an incline surface. The incline surface
has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia I =
and a mass M.
a. Find angular acceleration of the pulley.
b. Find the tension resulting from the two masses in the
string.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this...
A disk pulley system is set up as shown. (Use moment of inertia of the center...
A disk pulley system is set up as shown. (Use moment of inertia
of the center of a disk)
a. Symbolically find the value m1/m2 that would result
in a net zero torque on the disks.
b. In the situation from part a, symbolically find the
angular acceleration of the disks and tension in the ropes
if m2 gains a new mass, M.
r2 m2 TU
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are...
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are initially arranged as shown in the figure. They are tied to a massless rope going around the pulley. The pulley has a form of a cylinder with a mass of M = 8 kg and radius of R = 40 cm. Both the incline and the horizontal surface have a coefficient of kinetic friction ulk = 0.15. The incline is at the angle o...
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are...
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are initially arranged as shown in the figure. They are tied to a massless rope going around the pulley. The pulley has a form of a cylinder with a mass of M = 8 kg and radius of R = 40 cm. Both the incline and the horizontal surface have a coefficient of kinetic friction x = 0.15. The incline is at the angle =...
As shown in the figure below, two blocks are connected by a string of negligible mass passing over a pulley of radius 0...
As shown in the figure below, two blocks are connected by a
string of negligible mass passing over a pulley of radius 0.270 m
and moment of inertia I. The block on the frictionless incline is
moving with a constant acceleration of magnitude a = 1.20 m/s2.
(Let m1 = 15.5 kg, m2 = 22.0 kg, and θ = 37.0°.) From this
information, we wish to find the moment of inertia of the
pulley.
(a) What analysis model is appropriate...
Two blocks are connected by a lightweight string passing over a pulley, as shown in the figure below. The block with ma...
Two blocks are connected by a lightweight string passing over a pulley, as shown in the figure below. The block with mass m1 = 16.5 kg on the incline plane accelerates up the plane with negligible friction. The block's acceleration is a = 1.40 m/s2, and the tension in the segment of string attached to this block is T1. The hanging block has a mass of m2 = 23.5 kg, and the tension in the string attached to it is T2....
Two blocks are connected to a string, and the string is hung over a pulley connected...
Two blocks are connected to a string, and the string is hung over a pulley connected to the ceiling, as shown in the figure below. Two blocks, labeled m1 and m2, are connected to a string which is hung over a pulley connected to the ceiling. The pulley is of mass M and radius R. A block labeled m1 hangs suspended off the surface on the left side of the pulley. A block m2 is on the right side of...
7. (9 pts) A block is pushed up a 30 incline by an applied force as...
7. (9 pts) A block is pushed up a 30 incline by an applied force as shown. If F-35 N, M 3.4 ks and the coefficient of kinetic friction is 0.12, what is the magnitude of the resulting acceleration of the block? 8.(10 pts) Two blocks, ms 1.0kg and m-2.0 kg, are connected by a light string as shown In the figure. If the radius of the pulley is 1.0 m and its moment of inertia is s.0 kg-m2, a)...
A mass m1 = 5.50 kg is connected by a light string that passes over a...
A mass m1 = 5.50 kg is connected by a light string
that passes over a pulley of mass M = 11.5 kg to a mass
m2 = 11.5 kg sliding on a horizontal surface (see
figure). The coefficient of kinetic friction between the mass
m2 and the surface is 0.17. There is no slippage between
the string and the pulley. What is the magnitude of the tension
that is acting on mass m1? (The moment of inertia of the...
3. 35 points Two blocks (m1 = 2kg, m2 = 4kg) are connected over a pulley...
3. 35 points Two blocks (m1 = 2kg, m2 = 4kg) are connected over a pulley as shown below. The pulley (C=1/2) has mass M = 2kg and radius R = 60cm. The horizontal surface is rough with coefficient of kinetic friction of 0.7. a) [10 points] What is the linear acceleration of blocks? b) (10 points) What is the tension in the rope on either side of the pulley? c) (10 points) Find the magnitude of angular acceleration of...
A pulley is set up on an incline surface. The incline surface
has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia I =
and a mass M.
a. Find angular acceleration of the pulley.
b. Find the tension resulting from the two masses in the
string.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this...
A disk pulley system is set up as shown. (Use moment of inertia
of the center of a disk)
a. Symbolically find the value m1/m2 that would result
in a net zero torque on the disks.
b. In the situation from part a, symbolically find the
angular acceleration of the disks and tension in the ropes
if m2 gains a new mass, M.
r2 m2 TU
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are initially arranged as shown in the figure. They are tied to a massless rope going around the pulley. The pulley has a form of a cylinder with a mass of M = 8 kg and radius of R = 40 cm. Both the incline and the horizontal surface have a coefficient of kinetic friction ulk = 0.15. The incline is at the angle o...
Problem #1 m1 m2 Two blocks mı = 4 kg and m2 = 9 kg are initially arranged as shown in the figure. They are tied to a massless rope going around the pulley. The pulley has a form of a cylinder with a mass of M = 8 kg and radius of R = 40 cm. Both the incline and the horizontal surface have a coefficient of kinetic friction x = 0.15. The incline is at the angle =...
As shown in the figure below, two blocks are connected by a
string of negligible mass passing over a pulley of radius 0.270 m
and moment of inertia I. The block on the frictionless incline is
moving with a constant acceleration of magnitude a = 1.20 m/s2.
(Let m1 = 15.5 kg, m2 = 22.0 kg, and θ = 37.0°.) From this
information, we wish to find the moment of inertia of the
pulley.
(a) What analysis model is appropriate...
7. (9 pts) A block is pushed up a 30 incline by an applied force as shown. If F-35 N, M 3.4 ks and the coefficient of kinetic friction is 0.12, what is the magnitude of the resulting acceleration of the block? 8.(10 pts) Two blocks, ms 1.0kg and m-2.0 kg, are connected by a light string as shown In the figure. If the radius of the pulley is 1.0 m and its moment of inertia is s.0 kg-m2, a)...
A mass m1 = 5.50 kg is connected by a light string
that passes over a pulley of mass M = 11.5 kg to a mass
m2 = 11.5 kg sliding on a horizontal surface (see
figure). The coefficient of kinetic friction between the mass
m2 and the surface is 0.17. There is no slippage between
the string and the pulley. What is the magnitude of the tension
that is acting on mass m1? (The moment of inertia of the...
3. 35 points Two blocks (m1 = 2kg, m2 = 4kg) are connected over a pulley as shown below. The pulley (C=1/2) has mass M = 2kg and radius R = 60cm. The horizontal surface is rough with coefficient of kinetic friction of 0.7. a) [10 points] What is the linear acceleration of blocks? b) (10 points) What is the tension in the rope on either side of the pulley? c) (10 points) Find the magnitude of angular acceleration of...
