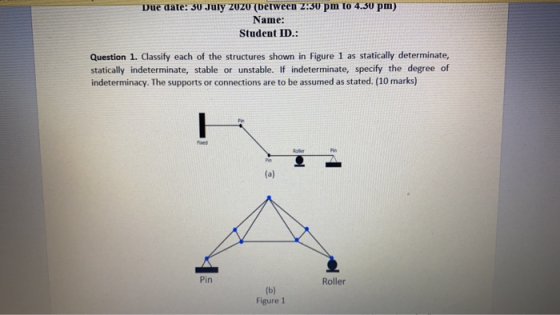

Due date: 30 July 2020 (between 2:30 pm to 4.30 pm) Name: Student ID.: Question 1....

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

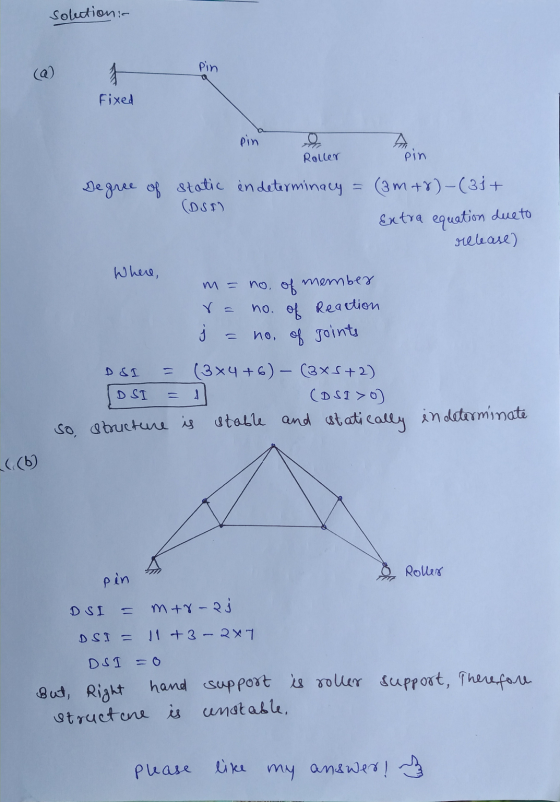

solution Pin Fixed pin Roller pin Degree of static in determinacy (DST) (3m+8)-(31+ Extra equation due to release) Where, mem

Answer 2

Similar Homework Help Questions

Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate, stable or...

Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate, stable or unstable. If indeterminate, specify the degree of indeterminacy. The supports or connections are to be assumed as stated. Pin Fixed Roller Pin Pin Pin Roller
Question 1. Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate,...

Question 1. Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate, stable or unstable. If indeterminate, specify the degree of indeterminacy. The supports or connections are to be assumed as stated. (10 marks) Pored Roller Pin (a) Pin Roller (b)
Question 1. Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate,...

Question 1. Classify each of the structures shown in Figure 1 as statically determinate, statically indeterminate, stable or unstable. If indeterminate, specify the degree of indeterminacy. The supports or connections are to be assumed as stated. (10 marks) Pin Fixed Roller Pin Pin (a) Pin Roller (b) Figure 1

The supports or connections are to be assumed as stated.

Classify each of the structures as statically determinate, Statically indeterminate, stable, or unstable. If indeterminate, specify the degree of indeterminacy. The supports or connections are to be assumed as stated.
SUBJECT QUIZ 2 LECTURE # Classify each of the structures as statically determinate, statically indeterminate, or...

SUBJECT QUIZ 2 LECTURE # Classify each of the structures as statically determinate, statically indeterminate, or unstable. II indeterminate, specify the degree of indeterminacy. B O 3=30 ABVE Botically determinaler roller pistollera Suable and statica Octomirono V 1+2+1+2+3:9 r7 r-3n Tr>6 Stancolul indeterminoue Ist degree & STABLE 300/1st] Com Note: Determine internal determinacy indeterminacy 1 = 3 inteinas indetermine cu n=2 1. To old degrece 2 STABLE Y-
ignore pencil marks please help! Problem 2 (30%) for ABET outcome (1) and (2). Determine following...

ignore pencil marks please help! Problem 2 (30%) for ABET outcome (1) and (2). Determine following structures shown below Check stability and determinacy • If indeterminate, specify the degree of indeterminacy • If the structure is either unstable and/or indeterminate, make it to a stable and determinate structure ? - Rigid Connection 230 stable, indeterminde to 1279 Rigid Connection habe 5 A vitable indeterminate to & 3 95 À TÀ . a stable, indeterminate to 776
