Q2: Draw the influence lines for the members HC and CD of the truss shown in Fig. (2), and then determine the maximum tensile
1.2 kft Pin 25 15ft 15k 2011 151 w 30 ft Fig. () Fig. (2) 10 2m 10 R S AGB B -1.5m +1.5 m 21 20 KN Ecom 40KN Fig. (3) Fig. (4
0 0
Add a comment Improve this question Transcribed image text
Answer #1

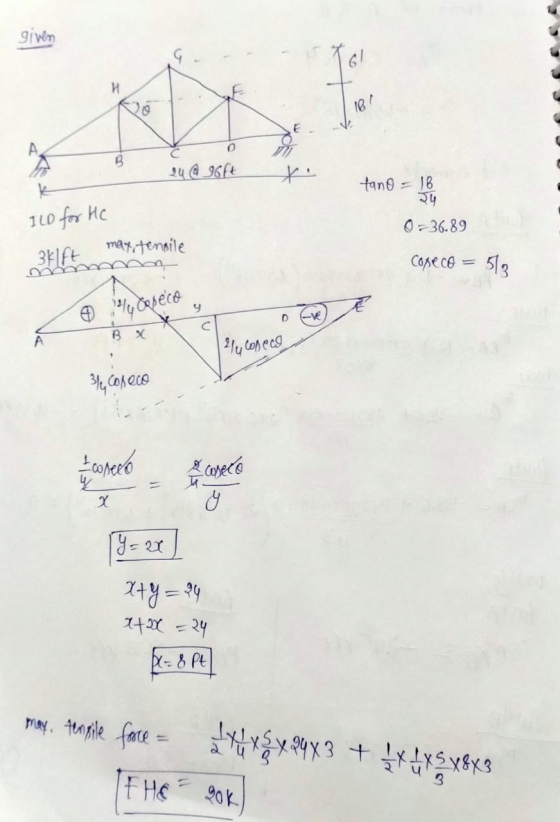

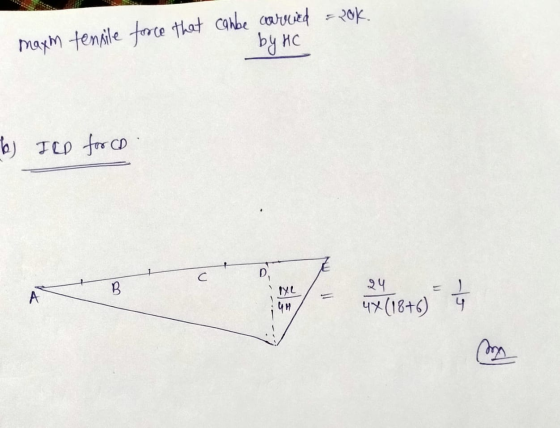

given G! И 18/ B 24 @ 9667 K tano = 18 24 0 -36.89 ILD for HC 3klft max, tensile copeco = 513 % Sepeco D в х A 1/4 coseco 31,maxm tensile force that can be carried ook. by hc b) IED for CD B 24 IXL I A 9 4x(18+6) 4

Add a comment
Know the answer?
Add Answer to:
Q2: Draw the influence lines for the members HC and CD of the truss shown in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Q2: Draw the influence lines for the members HC and CD of the truss shown in...

    Q2: Draw the influence lines for the members HC and CD of the truss shown in Fig. (2), and then determine the maximum tensile force that can be developed in member HC due to moving uniform distributed load of 3k/ft. 25% 18 с D 4@24-26 (2

  • Q2: Draw the influence lines for the members HC and CD of the truss shown in...

    Q2: Draw the influence lines for the members HC and CD of the truss shown in Fig. (2), and then determine the maximum tensile force that can be developed in member HC due to moving uniform distributed load of 3k/ft. I need it in 30min or 1 h Н 18 B D с L 424-96 Fig. (2)

  • 22: Draw the influence lines for the members HC and CD of the truss shown in...

    22: Draw the influence lines for the members HC and CD of the truss shown in Fig. (2), and then determine the maximum tensile force that can be developed in member HC due to moving uniform distributed load of 3k/ft. 25% D

  • (Influence Line Truss) Problem 3. Using STATICS DRAW the INFLUENCE LINES for the FORCE IN MEMBERS...

    (Influence Line Truss) Problem 3. Using STATICS DRAW the INFLUENCE LINES for the FORCE IN MEMBERS FG. SHOW ALL VALUES. LABEL ALL POINTS. MAGNITUDES, AND DISTANCES, Assume the support 'A' is a pin, and 'E is a roller. (6 points) FREE BODY DIAGRAMS & CALCULATIONS H 15 ft A B C D 200 | 2004-2005-2011 IL FFO What is max IL FFG TT T Arial 3 (12pt) > > Path: P Words:0 OLIETION 16 points Save

  • Q.3 For the non-parallel chord truss bridge shown in Fig. 3(a) (1) determine the influence lines...

    Q.3 For the non-parallel chord truss bridge shown in Fig. 3(a) (1) determine the influence lines for Fco, Fca and Fee: (2) The bridge is to be designed for the equivalent moving load detailed in Fig. 3(b). Compute the maximum tensile and compressive axial forces in member Cd. (Answer: Fcd max, T = 133.46 kN) L L P-115 kN JI ,-10 kN/m 4.5m 6@5m (Note that L2 may be varied or split up to achieve the desired effects, and that...

  • Problem #11 Draw the influence line for the force in member IH of the bridge truss....

    Problem #11 Draw the influence line for the force in member IH of the bridge truss. Determine the maximum force (tension or compression) that can be developed in this member due to a 72-k truck having the wheel loads shown. Assume the truck can travel in either direction along the center of the deck, so that half its load is transferred to each of the two side trusses. Also assume the members are pin connected at the gusset plates. 32...
