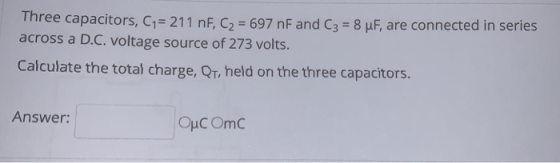

Three capacitors, C = 211 nF, C2 = 697 nF and C3 = 8 uF, are...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

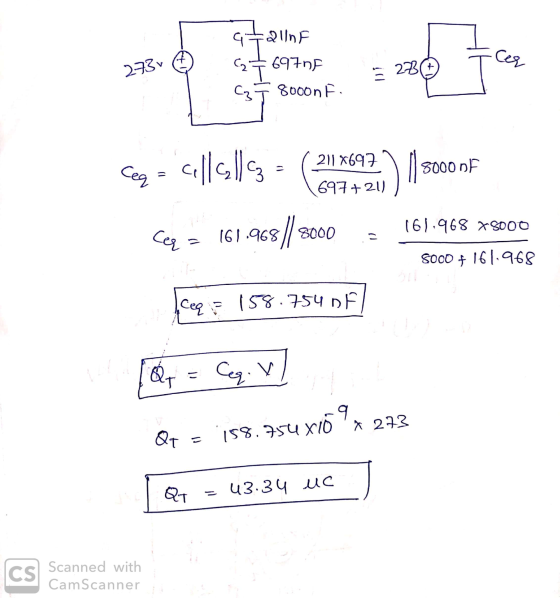

97 QuinF Сся, 273 v (76977F E 27 8000nf. Coq = (16|| 3 - ( 211 2697 211 X697 697+21) 8000 DF 161.968 X8000 Cer 161.968 / 8000

Answer 2

Similar Homework Help Questions

Three capacitors, C = 641 nF, C = 780.9 nF and 3 = 3.3 pF, are...

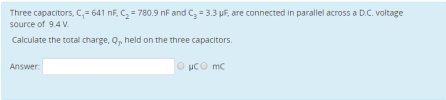

Three capacitors, C = 641 nF, C = 780.9 nF and 3 = 3.3 pF, are connected in parallel across a D.C. voltage source of 9.4V. Calculate the total charge, Q, held on the three capacitors. Answer: OUCO mc
Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1...

Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1 uF, are connected to a 20 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? C a. Ca C3 b. ΑΣΦ ? YC
hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0...

hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0 V battery as shown in the figure C1 Дез C2 Calculate the charge on C3. Submit Answer Tries 0/20 Calculate the voltage across C1 Submit Answer Tries 0/20

please show work Three capacitors C = 3.0 uF, C2 = 1.0 uF, and C3 =...

please show work Three capacitors C = 3.0 uF, C2 = 1.0 uF, and C3 = 2.0 uF are connected as shown in the Figure to a battery AV = 6.0 V. a) Calculate the equivalent capacitance between the 6V the battery. b) Calculate the charge on C1 c) Calculate the electric potential difference on C2 d) Calculate the electric energy stored on C3 С1 C2 = = = C3 AV
Three different capacitors are connected in series with a Vo 1.00 V potential source, as shown...

Three different capacitors are connected in series with a Vo 1.00 V potential source, as shown in the figure below. Let C1- 120 nF, C2 -228 nF C3 -251 nF. Calculate the voltage across the middle capacitor, C2. Enter answer here 2.63 Volts 2.63 Volts nower Your
Three different capacitors are connected in series with a Vo 1.00 V potential source, as shown...

Three different capacitors are connected in series with a Vo 1.00 V potential source, as shown in the figure below. Let C1- 120 nF, C2 -228 nF C3 -251 nF. Calculate the voltage across the middle capacitor, C2. Enter answer here 2.63 Volts 2.63 Volts nower Your

3. You are given three capacitors C1 10.0 uF, C2 = 20.0 uF and C3 =...

3. You are given three capacitors C1 10.0 uF, C2 = 20.0 uF and C3 = 40.0 uF. The capacitors are connected as shown. The capacitors start out discharged, and then a battery (not shown) is connected between points A and B and all three capacitors become fully charged. C1 C2 A) [3 pts] Using and “=”, rank from greatest to least the charges on the A capacitors, Q1, Q2, Q3. Using physical principles (not just rules), explain. HA C3...
Question 7 Three different capacitors are connected in series with a Vo 1.00 V potential source,...

Question 7 Three different capacitors are connected in series with a Vo 1.00 V potential source, as shown in the figure below. Let C1-173 nF, C2 228 nF, C3- 276 nF. Calculate the voltage across the middle capacitor, C2 C3 Enter answer here Volts 72.5 Volts Anewer Your 1 of 6 attempts used CHECK ANSWER
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20...

2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20 uF to a 6.00 V battery. a. The three capacitors are connected in series across the battery. i. Find the equivalent capacitance of the circuit. ii. Calculate the total charge stored in the combination. b. The three capacitors are now connected in parallel. i. What is equivalent capacitance? ii. What is the energy stored by the combination of the capacitors? 3. A graph of...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 =...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 C [a] What is the charge (in units of uC) on capacitor Cz? (Example: If your answer is 75.0°C, enter your answer as 75.0 in the answer box.) Prob. 2. The...
