Q5: Using force method, determine the reactions of the supports for the beam shown in...
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Using force method , determine the reactions of the supports for the beam shown in Figure...
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,

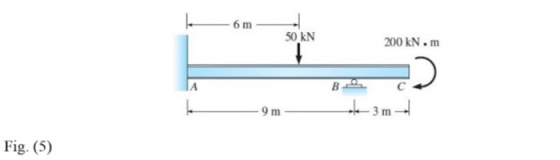

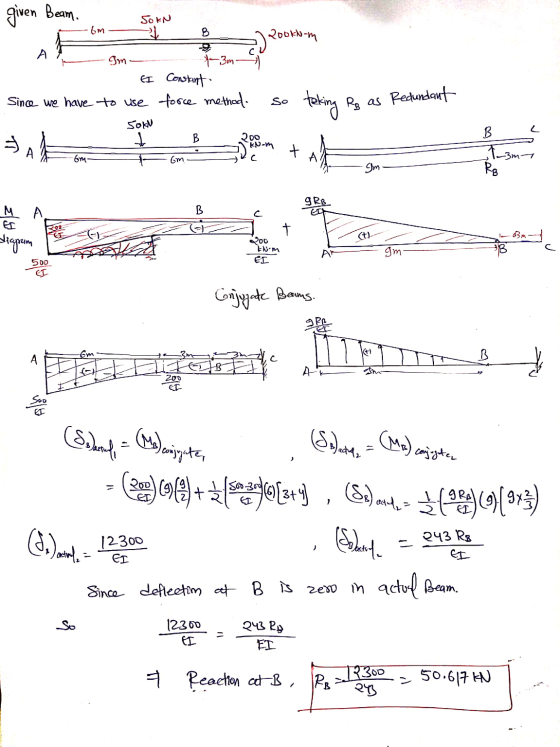

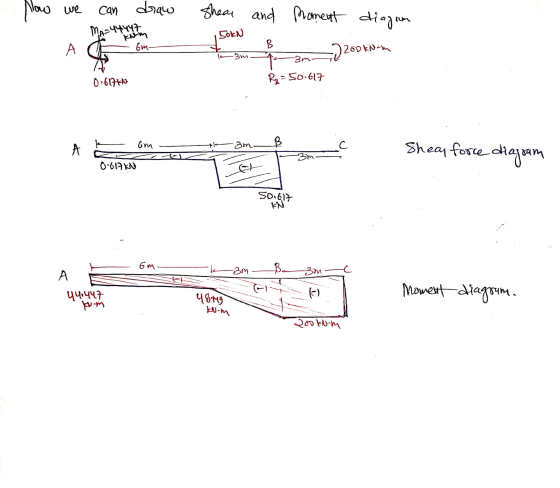

6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
i need the answer quickly fast as you can Q5: Using force method, determine the reactions...
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
Any one Can solve this Fast please i need it now Q5: Using force method, determine...
Any one Can solve this Fast please i need it
now
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. El is constant Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 2 B 9 m
asap Q4: Using slope-deflection method, determine the reactions of the supports for the frame shown in...
asap
Q4: Using slope-deflection method, determine the reactions of the supports for the frame shown in Figure (4). Then draw shear and bending moment diagrams for the frame. E is constant. 5k/ft E D 10 ft B-10k 5 ft -20 ft tsa -21 E = constant Fig. (4)
Required Information For the beam shown, find the reactions at the supports and plot the shear-force...
Required Information For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V1 = 2 KN and V2 = 4 kN. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Vi V2 1.2 min А R2 Determine the values of the moments My, M2, and M3 In kNm. Provide values at all key points shown in the given shear-force and bending-moment diagrams....
A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions....
A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions. (b) Use the graphical method to construct the shear-force and bending moment diagrams for the beam. Also label the values of shear-force and bending=moment at all key points. 30 kN/m 25 kN 12 kN/m 80 kN.m х A В C D E F 1 m 3 m 1 m 1 m 1 m
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1 Use the Slop...
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
Any one Can solve this Fast please i need it
now
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. El is constant Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 2 B 9 m
asap
Q4: Using slope-deflection method, determine the reactions of the supports for the frame shown in Figure (4). Then draw shear and bending moment diagrams for the frame. E is constant. 5k/ft E D 10 ft B-10k 5 ft -20 ft tsa -21 E = constant Fig. (4)
Required Information For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V1 = 2 KN and V2 = 4 kN. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Vi V2 1.2 min А R2 Determine the values of the moments My, M2, and M3 In kNm. Provide values at all key points shown in the given shear-force and bending-moment diagrams....
A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions. (b) Use the graphical method to construct the shear-force and bending moment diagrams for the beam. Also label the values of shear-force and bending=moment at all key points. 30 kN/m 25 kN 12 kN/m 80 kN.m х A В C D E F 1 m 3 m 1 m 1 m 1 m
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
