Homework Answers

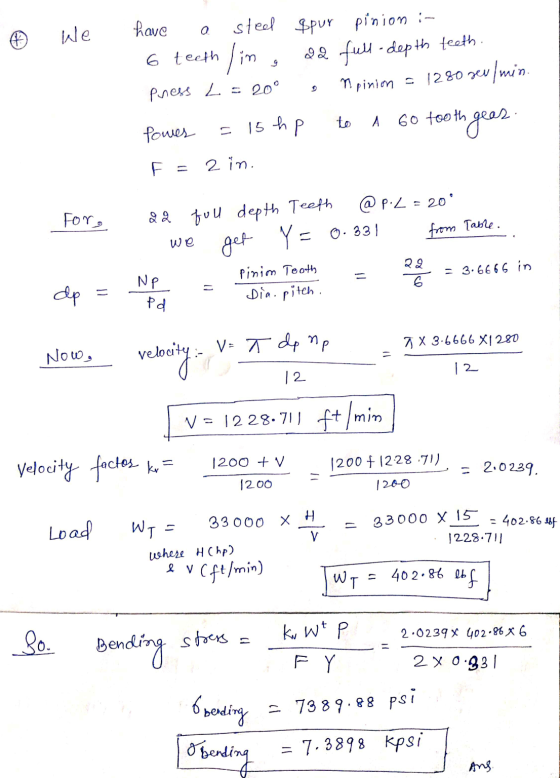

Using analysis of spur gear.Ans =7.39kpsi
Add Answer to:

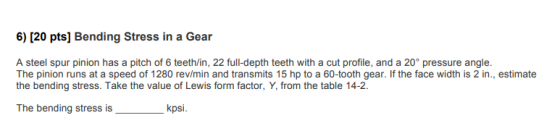

6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of...
(1 ) Problem 2: A 20° full-depth steel (milled profile) spur pinion has a diametral pitch...
(1 ) Problem 2: A 20° full-depth steel (milled profile) spur pinion has a diametral pitch of 8 teeth/in and 30 teeth and transmits 5 hp at a speed of 150 rev/min. Determine an appropriate face width if the allowable bending stress is 24 kpsi. Consider factor of safety is 1.28. (35) Problem 3: A plain ended helical compression spring is to be made of music in spring index of 8. This spring has 10 moilo
Please help. Thx Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a...
Please help.
Thx
Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a pitch diameter of 2 inches, and has 20 teeth. The gear "Ghas 120 teeth. All teeth have a pressure angle of 20, full-depth, hobbed profile, and a face width of 0.5 inches. All materials are steel. Determine: A) Minimum number of pinion teeth: Np,min This shows that...
7) [30 pts] Factor of Safety for Contact Stress A steel spur pinion has 16 teeth...
7) [30 pts] Factor of Safety for Contact Stress A steel spur pinion has 16 teeth cut on the 20 full-depth system with a module of 8 mm and a face width of 90 mm. The pinion rotates at 150 rev/min and transmits 3 kW to the mating steel gear. This pinion is to mesh with a steel gear with a gear ratio of 4:1. The Brinell hardness of the teeth is 200, and the tangential load transmitted by the...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/i...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
9. AGMA Shigley 5th Ed. 14-27 A 17-tooth 20°-pressure angle spur pinion rotates at 1800 rev/min...
9. AGMA Shigley 5th Ed. 14-27 A 17-tooth 20°-pressure angle spur pinion rotates at 1800 rev/min and transmits 4 hp to a 52-tooth gear. The diametral pitch is 10, the face width is 1.25 in, the quality standard is No. 6, and the mounting is with exceptional rigidity. The pinion is steel, hardened to Brinell 240, and the gear is of No. 30 cast iron. Find the factor of safety based on surface fatigue strength if the life is to...
Student Name (Print): Q3. (10 points) A steel spur pinion has 18 teeth cut on the...
Student Name (Print): Q3. (10 points) A steel spur pinion has 18 teeth cut on the 20° full-depth system and a module of 1.25 mm. This pinion will carry 0.6 kW at 1500 rev/min. Determine the pitch line velocity, Lewis Form Factor and the dynamic factor to use when calculating the bending stress. (Note: Do not calculate the bending stress.)
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emi...
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emin required to transmit at least 11 hp horsepower with a corresponding speed and moderate applications. Which material is the best choice for the spu ones in Table 5 considering the maximum allowable bending stres (factor of safety, nd-2.5)? U quations...
designs QIII) A 15-tooth, precision-made spur pinion is to drive a 25-tooth gear. A pitch of...
designs
QIII) A 15-tooth, precision-made spur pinion is to drive a 25-tooth gear. A pitch of 6 teeth/in has been selected with a 2.25 in face width. Also, the teeth are to be 25 full depth, with a ddendum of 1.35/ pa for a pinion speed of 1150 rpm, and 10 hp is to transmitted under steady load conditions. The material selected for both gears is a through-hardened steel of a hardness of 302 Bhn . Determined the actors of...
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20...
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20 degrees pressure angle, full-depth and milled profile teeth with a face width of 1.5 in. The pitch line velocity is 750 ft/min. The gear is made of a material AISI 1040 HR steel What is the maximum allowable tangential load (b) that the Eear teeth can sustain based on the tooth bending stress criteria (provide answer to one decimal place?
27 Two 20° straight bevel gears have a diametral pitch of 4, and 24 and 48 teeth, respectively The tooth face width is 2 in. The pinion rotates at 1000 rev/min and transmits 50 hp. The shafts are...
27 Two 20° straight bevel gears have a diametral pitch of 4, and 24 and 48 teeth, respectively The tooth face width is 2 in. The pinion rotates at 1000 rev/min and transmits 50 hp. The shafts are at 90. Determine the components of the gear tooth force and show these on a sketch of the ge
27 Two 20° straight bevel gears have a diametral pitch of 4, and 24 and 48 teeth, respectively The tooth face width is...
(1 ) Problem 2: A 20° full-depth steel (milled profile) spur pinion has a diametral pitch of 8 teeth/in and 30 teeth and transmits 5 hp at a speed of 150 rev/min. Determine an appropriate face width if the allowable bending stress is 24 kpsi. Consider factor of safety is 1.28. (35) Problem 3: A plain ended helical compression spring is to be made of music in spring index of 8. This spring has 10 moilo
Please help.
Thx
Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a pitch diameter of 2 inches, and has 20 teeth. The gear "Ghas 120 teeth. All teeth have a pressure angle of 20, full-depth, hobbed profile, and a face width of 0.5 inches. All materials are steel. Determine: A) Minimum number of pinion teeth: Np,min This shows that...
7) [30 pts] Factor of Safety for Contact Stress A steel spur pinion has 16 teeth cut on the 20 full-depth system with a module of 8 mm and a face width of 90 mm. The pinion rotates at 150 rev/min and transmits 3 kW to the mating steel gear. This pinion is to mesh with a steel gear with a gear ratio of 4:1. The Brinell hardness of the teeth is 200, and the tangential load transmitted by the...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
9. AGMA Shigley 5th Ed. 14-27 A 17-tooth 20°-pressure angle spur pinion rotates at 1800 rev/min and transmits 4 hp to a 52-tooth gear. The diametral pitch is 10, the face width is 1.25 in, the quality standard is No. 6, and the mounting is with exceptional rigidity. The pinion is steel, hardened to Brinell 240, and the gear is of No. 30 cast iron. Find the factor of safety based on surface fatigue strength if the life is to...
Student Name (Print): Q3. (10 points) A steel spur pinion has 18 teeth cut on the 20° full-depth system and a module of 1.25 mm. This pinion will carry 0.6 kW at 1500 rev/min. Determine the pitch line velocity, Lewis Form Factor and the dynamic factor to use when calculating the bending stress. (Note: Do not calculate the bending stress.)
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emin required to transmit at least 11 hp horsepower with a corresponding speed and moderate applications. Which material is the best choice for the spu ones in Table 5 considering the maximum allowable bending stres (factor of safety, nd-2.5)? U quations...
designs
QIII) A 15-tooth, precision-made spur pinion is to drive a 25-tooth gear. A pitch of 6 teeth/in has been selected with a 2.25 in face width. Also, the teeth are to be 25 full depth, with a ddendum of 1.35/ pa for a pinion speed of 1150 rpm, and 10 hp is to transmitted under steady load conditions. The material selected for both gears is a through-hardened steel of a hardness of 302 Bhn . Determined the actors of...
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20 degrees pressure angle, full-depth and milled profile teeth with a face width of 1.5 in. The pitch line velocity is 750 ft/min. The gear is made of a material AISI 1040 HR steel What is the maximum allowable tangential load (b) that the Eear teeth can sustain based on the tooth bending stress criteria (provide answer to one decimal place?
27 Two 20° straight bevel gears have a diametral pitch of 4, and 24 and 48 teeth, respectively The tooth face width is 2 in. The pinion rotates at 1000 rev/min and transmits 50 hp. The shafts are at 90. Determine the components of the gear tooth force and show these on a sketch of the ge
27 Two 20° straight bevel gears have a diametral pitch of 4, and 24 and 48 teeth, respectively The tooth face width is...
