Question

Please use C++

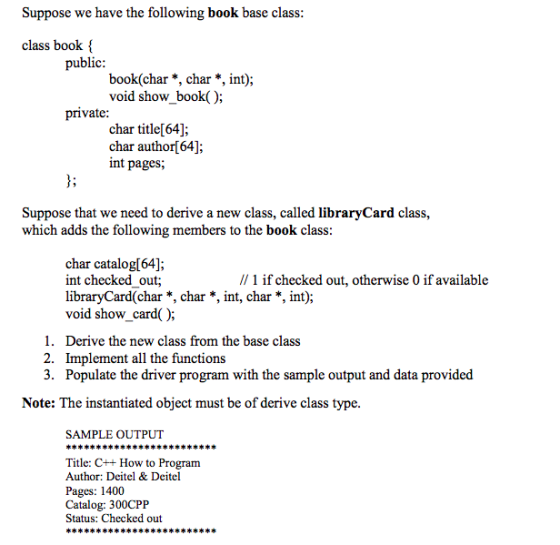

Suppose we have the following book base class: class book { public: book(char*, char *, int); void show_book(); private: char title[64]; char author[64]; int pages; }; Suppose that we need to derive a new class, called libraryCard class, which adds the following members to the book class: char catalog[64]; int checked_out; // 1 if checked out, otherwise 0 if available libraryCard(char*, char *, int, char *, int); void show_card(); 1. Derive the new class from the base class 2. Implement all the functions 3. Populate the driver program with the sample output and data provided Note: The instantiated object must be of derive class type. SAMPLE OUTPUT **** **** Title: C++ How to Program Author: Deitel & Deitel Pages: 1400 Catalog: 300CPP Status: Checked out

Answer 1

PLEASE NOTE : FEEL FREE TO ASK ANY DOUBTS by COMMENTING

• I used inbuilt strcpy method to copy strings.
• If you want me to add/change anythin, Please let me know by commenting.
• Comments starts with ' // '. Check spellings for printing statements.
• Please refer to the screenshot of the code to understand the indentation of the code

Language : C++ Programming

IDE : Dev C++

:::::::::::::::::::::::::::::::::::::::::::: CODE ::::::::::::::::::::::::::::::::::::::::

#include <iostream>
#include <cstring>
using namespace std;

// book class
class book{
   // public variables
   public:

       // constructor
       book(char*,char *,int);

       // to show book details
       void show_book();

   // private variables
   private:

       // title, author, pages
       char title[64];
       char author[64];
       int pages;
};

// implementing class functions
book::book(char *title,char *author, int pages){

   // copying title, author. Assigning pages
   strcpy(this->title,title);
   strcpy(this->author,author);
   this->pages = pages;
}

void book::show_book(){

   // showing book details
   cout << "Title: " << title << endl;
   cout << "Author: " << author << endl;
   cout << "Pages: " << pages << endl;
}

// class LibraryCard that inherits book class
class LibraryCard:book{
   // private variables
   private:
       // chatalog and checked_out value
       char catalog[64];
       int checked_out;

   // public variables
   public:
       // constructor
       LibraryCard(char *,char *,int,char*,int);
       // to show catalog details
       void show_card();
};

// constructor that calls base class constructor
LibraryCard::LibraryCard(char *title,char *author,int pages,
   char *catalog,int checked_out):book(title,author,pages){

   // copy catalog and assign checkedout value
   strcpy(this->catalog,catalog);
   this->checked_out = checked_out;
}

void LibraryCard::show_card(){

   // call base class method show_book
   book::show_book();

   // print catalog
   cout << "Catalog: " << catalog << endl;

   // if checked_out value is 1, printing "Checked out"
   cout << "Status: ";

   if(checked_out==1){
       cout << "Checked out";
   }

   // if checked_out value is not 1, printing "Avaiable"
   else{
       cout << "Available";
   }

   cout << endl;
}

int main(){

   // required variables with values
   char title[] = "C++ How to Program";

   char author[] = "Deitel & Deitel";

   int pages = 1400;

   char catalog[] = "300CPP";

   int checked_out = 1;

   // creating LibraryCard instance
   LibraryCard l(title,author,pages,catalog,checked_out);

   // calling show_card of above instance
   cout << "*************************\n";

   l.show_card();

   cout << "*************************\n";

   return 0;
}

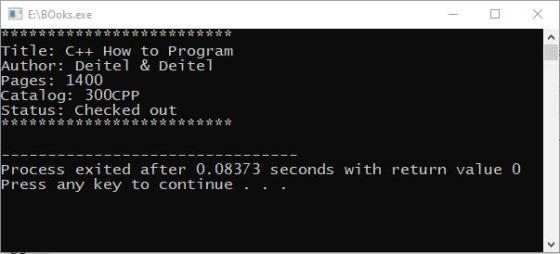

:::::::::::::::::::::::::::::::::::::::::::: OUTPUT ::::::::::::::::::::::::::::::::::::::::

E: BOoks.exe ***** Title: C++ How to Program Author: Deitel & Deitel Pages: 1400 Catalog: 300CPP Status: checked out ************************* Process exited after 0.08373 seconds with return value o Press any key to continue

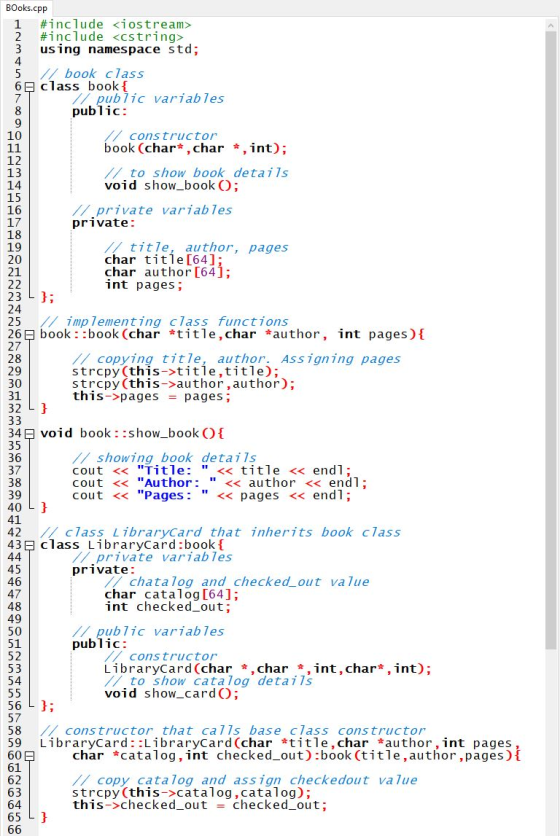

:::::::::::::::::::::::::::::::::::::: CODE in EDITOR ::::::::::::::::::::::::::::::::::

BOoks.cpp #include <iostream> #include <cstring> using namespace std; 4 5 / book class 6 class book 7 Il public variables 8 public: 10 // constructor 11 book (char*, char *, int); 12 13 // to show book details 14 void show_book (); 15 16 // private variables 17 private: 18 19 // title, author, pages 20 char title [64]; 21 char author [64); 22 int pages; 23 }; 24 25 // implementing class functions 269 book :: book (char *title, char *author, int pages) { 27 28 // copying title, author: Assigning pages strcpy(this->title,title); 30 strcpy(this->author, author); 31 this->pages = pages; 32 } 33 34 void book::show_book (){ 35 36 // showing book details 37 cout << "Title: «< title << endl; 38 cout << "Author: " « author << endl; 39 cout << "Pages : << pages << endl; 40 41 42 // class Librarycard that inherits book class 439 class LibraryCard:book { 44 Il private variables 45 private: 46 // chatalog and checked_out value 47 char catalog [64]; 48 int checked_out; 49 50 // public variables 51 public: 52 // constructor 53 LibraryCard(char *, char *, int,char* , int); 54 // to show catalog details 55 void show_card(); 56 }; 57 58 // constructor that calls base class constructor 59 LibraryCard::Librarycard (char *title, char *author, int pages 60 A char *catalog, int checked_out): book (title, author,pages) { 62 // copy catalog and assign checkedout value 63 strcpy(this->catalog, catalog); 64 this->checked_out = checked_out; 65 66 portion 61 اسا

NNNNNN LON ܢܟ AWN 84 85 67 9 void LibraryCard::show_card(){ 68 69 // call base class method show_book 70 book::show_book (); 71 72 // print catalog 73 cout << "Catalog: " « catalog < endl; 75 // if checked_out value is i, printing "checked out" 76 cout << "Status: "; 77 78 if (checked_out==1) { 79 cout << "checked out"; 80 81 82 // if checked_out value is not 1, printing "Avaiable" 83 else{ cout << "Available"; } 86 87 cout << endl; 88 } 89 90 9 int main(){ 91 // required variables with values 93 char title[] = "C++ How to Program"; 95 char author [] "Deitel & Deitel"; 96 97 int pages = 1400; 98 99 char catalog[] = "300CPP"; LOO L01 int checked_out = 1; LO2 LO3 // creating Librarycard instance L04 LibraryCard 1(title, author,pages,catalog, checked_out); LO5 L06 // calling show_card of above instance LO7 cout << "**** ******\n"; L08 L09 1.show_card(); L10 L11 cout << ****\n"; L12 L13 return 0; L14 OO OO OO OO OO OO OO OO OO OO 92 94 II }
