A hollow, uniformly charged sphere has an inner radius of r1=0.085 m and an outer radius of r2 = 0.34 m

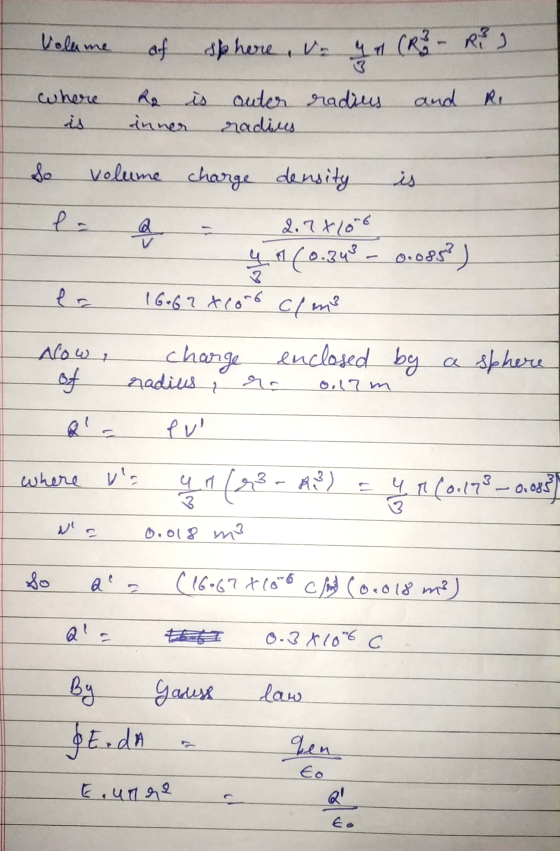

A hollow, uniformly charged sphere has an inner radius of r1=0.085 m and an outer radius of r2 = 0.34 m. The sphere has a net charge of Q = 2.7μC.

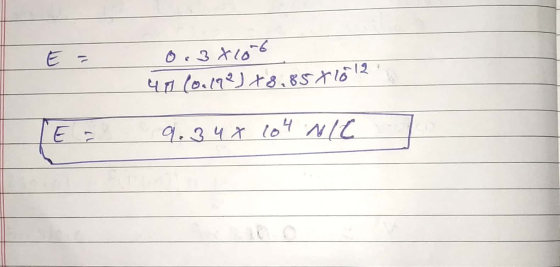

What is the magnitude of the electric field, in newtons per coulomb, at a distance of r = 0.17 m from the center of the sphere?

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment
