A 1-m-diameter cylindrical mass, M, is connected to a 2-m- wide rectangular gate as shown in Fig. P2.143.

Question

Question

A 1-m-diameter cylindrical mass, M, is connected to a 2-m- wide rectangular gate as shown in Fig. P2.143.

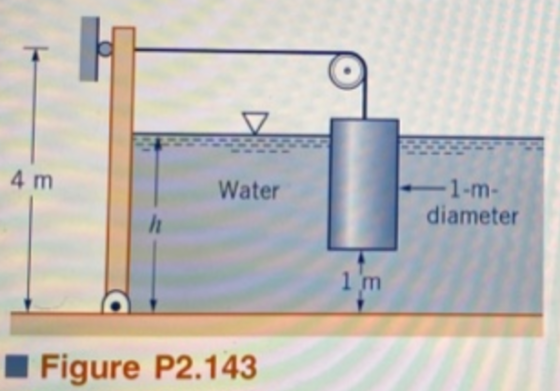

A 1-m-diameter cylindrical mass, M, is connected to a 2-m- wide rectangular gate as shown in Fig. P2.143. The gate is to open when the water level, h, drops below 2.5 m. Determine the required value for M. Neglect friction at the gate hinge and the pulley.

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

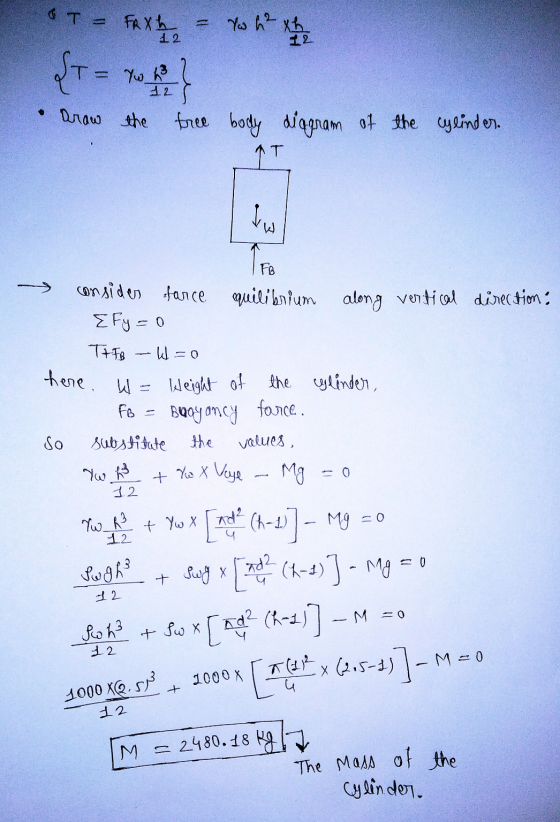

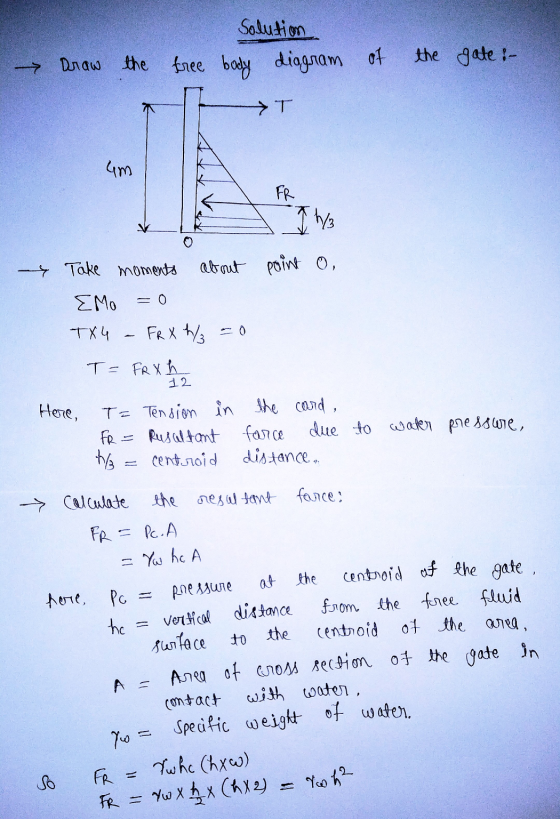

Answer 1

✔ Recommended Answer

Answer #1

Thank you.

Add a comment

Answer 2

Answer #2

Why hc = h/2 if the center is at h/3, h-h/3 =2h/3 isn't it?

source: ufsb

answered by: gabigol

Add a comment

Answer 3

A 1-m-diameter cylindrical mass, M, is connected to a 2-m- wide rectangular gate as shown in Fig. P2.143.
