Question

mips language

In many user applications, there are built in pauses that stop the execution of the program until the user hits a key (such as the escape key).

Write a function (and not a complete program) wait_for_esc that features a loop that keeps repeating until the user hits the escape key. You may assume that the keyboard control register can be accessed using memory location 0xFFFF0000 and that the keyboard data register can be accessed using memory location 0xFFFF0004. The ASCII code for the escape character is 27 (base 10).

Answer 1

PROGRAM:

wait_for_esc:
   lw $t0,0xffff0000
   andi $t0,$t0,0x1       # Isolate ready bit
   beqz $t0, wait_for_esc

   # Read the key pressed into $a0
   lbu $a0,0xffff0004
   andi $t0,$a0,27           # Compare the key with ascii value of escape key(27 in decimal)
   beqz $t0,wait_for_esc       # If the key pressed is not the escape key, repeat the process

   jr $ra

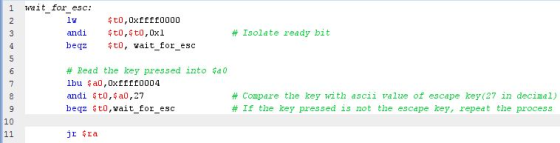

Please refer to the following screenshot of the program for indentation of the code:

1 wait_for_esc: 2 lw $t0, 0xffff0000 3 andi $t0,$t0,0x1 # Isolate ready bit beqz $t0, wait_for_esc 5 6 # Read the key pressed into $a0 7 lbu $a0, Oxffff0004 andi $t0,$a0,27 # Compare the key with ascii value of escape key (27 in decimal) 9 beqz $t0,wait_for_esc # If the key pressed is not the escape key, repeat the process 10 11 jr fra
