Question

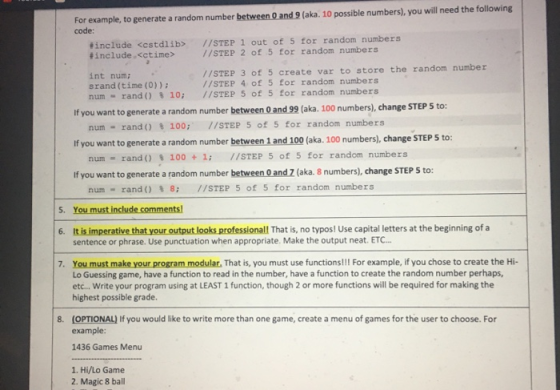

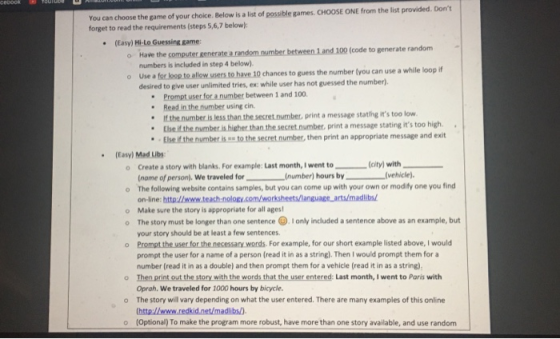

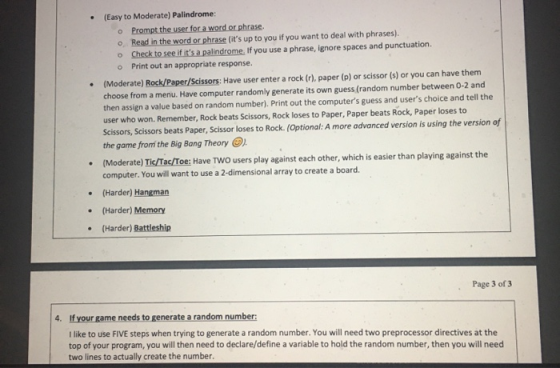

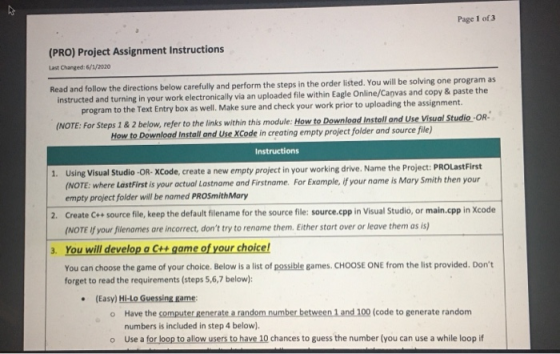

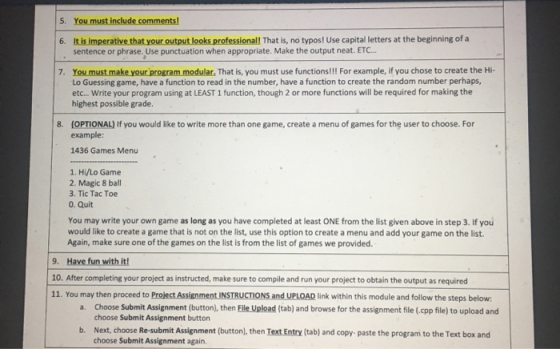

Page 1 of 3 (PRO) Project Assignment Instructions Last Charged: 6/1/2020 Read and follow the directions below carefully and perform the steps in the order listed. You will be solving one program as instructed and turning in your work electronically via an uploaded file within Eagle Online/Canvas and copy & paste the program to the Text Entry box as well. Make sure and check your work prior to uploading the assignment (NOTE: For Steps 1 & 2 below, refer to the links within this module: How to Download Install and Use Visual Studio -OR- How to Download Install and Use XCode in creating empty project folder and source file) Instructions 1. Using Visual Studio -OR- XCode, create a new empty project in your working drive. Name the Project: PROLastFirst (NOTE: where LastFirst is your actual Lastname and Firstname. For example, if your name is Mary Smith then your empty project folder will be named PROSmith Mary 2. Create C++ source file, keep the default filename for the source file: source.cpp in Visual Studio, or main.cpp in Xcode (NOTE 1/ your filenames are incorrect, don't try to rename them. Either start over or leave them as is) 3. You will develop a C++ game of your choice! You can choose the game of your choice. Below is a list of possible games. CHOOSE ONE from the list provided. Don't forget to read the requirements (steps 5,6,7 below): • Easy) Hi-Lo Guessing game: o Have the computer generate a random number between 1 and 100 (code to generate random numbers is included in step 4 below). Use a for loop to allow users to have 10 chances to guess the number (you can use a while loop if 0

in c++ please

Answer 1

Screenshot

#include <iostream> #include<string> using namespace std; Microsoft Visual Studio Debug Console 1436 Gamee Menu #define ROWS 3 #define COLS 3 1. HI/LO Guessing 2. Tic Tac Toe 3. Palindrome Checker 2. Quit Enter your choice: 1 Guess the secret number between 1-100: 24 OOPS!!! YOUR GUESS IS LOW!!! //Function prototypes int getMenu(); void playGuessGame(); void playTicTacToe(); void getChoice(char[ROWS] [COLS], bool); void fillBoard(char[ROWS] [COLS]); void showBoard(char[ROWS][COLS]); bool gameOver(char[ROWS][COLS]); void checkPalindrome(); bool checkPalindrome (string); string reverse(string); string removeOther(string); 1436 Gamee Menu int main() { 1/Get option int opt = getMenu(); // Loop until user prefer while (opt != 0) { if (opt 1) { playGuessGame(); 1. HI/LO Guessing 2. Tic Tac Toe 3. Palindrome Checker e. Quit Enter your choice: 2 1 2 3 1 2 3 player 1, Row: 1 player 1, Column: 1 1 2 3 1 X * 2 * * 3 player 2, Row: 2 player 2, Column: 1 == } else if (opt == 2) { playTicTacToe(); } else if (ont == 3) { Ln 33 Col 29 Ch 20

Program

#include <iostream>
#include<string>
using namespace std;

#define ROWS 3
#define COLS 3

//Function prototypes
int getMenu();
void playGuessGame();
void playTicTacToe();
void getChoice(char[ROWS][COLS], bool);
void fillBoard(char[ROWS][COLS]);
void showBoard(char[ROWS][COLS]);
bool gameOver(char[ROWS][COLS]);
void checkPalindrome();
bool checkPalindrome(string);
string reverse(string);
string removeOther(string);

int main()
{

    //Get option
   int opt = getMenu();
   //Loop until user prefer
   while (opt != 0) {
       if (opt == 1) {
           playGuessGame();
       }
       else if (opt == 2) {
           playTicTacToe();
       }
       else if (opt == 3) {
           checkPalindrome();
       }
       cout << endl;
       opt = getMenu();
   }
}

/*
   Function: getMenu
   Param In: None
   Param Out: opt, user choice;
   Description: Display 3 different games and exit option
                Read user choice , check correctness and return option
*/
int getMenu() {
   int opt;
   cout << "1436 Gamee Menu\n";
   cout << "----------------\n";
   cout << "1. HI/LO Guessing \n2. Tic Tac Toe\n3. Palindrome Checker\n0. Quit\n";
   cout << "Enter your choice: ";
   cin >> opt;
   while (opt < 0 || opt>3) {
       cout << "Error!!!Option should be 0-3!!\n";
       cout << "Enter your choice: ";
       cin >> opt;
   }
   return opt;
}

/*
Function: playGuessGame
ParamIn: none
Param Out: none
Description: Prompt for user a number 1-100
               If it correct congradulate
               Otherwise mension low or high
*/
void playGuessGame() {
   int num, secretNum = rand() % 100 + 1;
   cout << "\nGuess the secret number between 1-100: ";
   cin >> num;
   if (num == secretNum) {
       cout << "CONGRADULATIONS!!!YOUR GUESS IS CORRECT!!!\n";
   }
   else if (num <secretNum) {
       cout << "OOPS!!!YOUR GUESS IS LOW!!!\n";
   }
   else {
       cout << "OOPS!!!YOUR GUESS IS HIGH!!!\n";
   }
}

/*
Function: playTicTacToe
Param In: none
ParamOut: none
Description: Create a 3*3 charcter board
               Loop until a winner or tie happen
*/
void playTicTacToe() {
   char board[3][3];
   bool playerToggle = false;
   fillBoard(board);
   showBoard(board);

   while (!gameOver(board))
   {
       getChoice(board, playerToggle);
       showBoard(board);
       playerToggle = !playerToggle;
   }
}

/*
Function: fillBoard
ParamIn: board
ParamOut: none
Description: Fill the array with stars
*/
void fillBoard(char gameboard[ROWS][COLS]) {
   for (int i = 0; i < ROWS; i++) {
       for (int j = 0; j < COLS; j++) {
           gameboard[i][j] = '*';
       }
   }
}
/*
Function: showBoard
ParamIn: board
ParamOut: None
Description: Display board details
*/
void showBoard(char board[ROWS][COLS]) {
   cout << " ";
   for (int i = 0; i < COLS; i++) {
       cout << i + 1 << " ";
   }
   cout << endl;

   for (int i = 0; i < ROWS; i++) {
       cout << i + 1 << " ";
       for (int j = 0; j < COLS; j++) {
           cout << board[i][j] << " ";
       }
       cout << endl;
   }
};
/*
Function: getChoice
Paramin: board and bool value
ParamOut: None
Desription: Get player choice row and col
Check availability and add into board
*/
void getChoice(char gameBoard[ROWS][COLS], bool playerToggle)
{
   string player;
   char c;
   int row, col;

   if (playerToggle == false) {
       player = "player 1";
       c = 'X';
   }
   else {
       player = "player 2";
       c = 'O';
   }

   do
   {
       do
       {
           cout << player << ", " << "Row: ";
           cin >> row;

       } while (!(row >= 1 && row <= 3));

       do
       {
           cout << player << ", " << "Column: ";
           cin >> col;
       } while (!(col >= 1 && col <= 3));

   } while ((gameBoard[row - 1][col - 1] == 'X' || gameBoard[row - 1][col - 1] == 'O'));
   gameBoard[row - 1][col - 1] = c;
}
/*
Function: gameOver
Paramin: board
Param out: winner
Description: check the rowwise or column sie or diagonal match of player character
              If match foundreturn true otherwise false
*/
bool gameOver(char gameBoard[ROWS][COLS])
{
   bool gameOver = false;
   bool asterisk = false;
   bool xWin = false;
   bool oWin = false;
   bool Tie = false;
   //xwin check
   if (gameBoard[0][0] == 'X' && gameBoard[0][1] == 'X' && gameBoard[0][2] == 'X')
   {
       xWin = true;
   }
   else if (gameBoard[1][0] == 'X' && gameBoard[1][1] == 'X' && gameBoard[1][2] == 'X') {
       xWin = true;
   }
   else if (gameBoard[2][0] == 'X' && gameBoard[2][1] == 'X' && gameBoard[2][2] == 'X') {
       xWin = true;
   }
   else if (gameBoard[0][0] == 'X' && gameBoard[1][0] == 'X' && gameBoard[2][0] == 'X') {
       xWin = true;
   }
   else if (gameBoard[0][1] == 'X' && gameBoard[1][1] == 'X' && gameBoard[2][1] == 'X') {
       xWin = true;
   }
   else if (gameBoard[0][2] == 'X' && gameBoard[1][2] == 'X' && gameBoard[2][2] == 'X') {
       xWin = true;
   }
   else if (gameBoard[0][0] == 'X' && gameBoard[1][1] == 'X' && gameBoard[2][2] == 'X') {
       xWin = true;
   }
   else if (gameBoard[0][2] == 'X' && gameBoard[1][1] == 'X' && gameBoard[2][0] == 'X') {
       xWin = true;
   }
   //owin check
   if (gameBoard[0][0] == 'O' && gameBoard[0][1] == 'O' && gameBoard[0][2] == 'O')
   {
       oWin = true;
   }
   else if (gameBoard[1][0] == 'O' && gameBoard[1][1] == 'O' && gameBoard[1][2] == 'O') {
       oWin = true;
   }
   else if (gameBoard[2][0] == 'O' && gameBoard[2][1] == 'O' && gameBoard[2][2] == 'O') {
       oWin = true;
       cout << "Player 2 wins!";
   }
   else if (gameBoard[0][0] == 'O' && gameBoard[1][0] == 'O' && gameBoard[2][0] == 'O') {
       oWin = true;
   }
   else if (gameBoard[0][1] == 'O' && gameBoard[1][1] == 'O' && gameBoard[2][1] == 'O') {
       oWin = true;
   }
   else if (gameBoard[0][2] == 'O' && gameBoard[1][2] == 'O' && gameBoard[2][2] == 'O') {
       oWin = true;
   }
   else if (gameBoard[0][0] == 'O' && gameBoard[1][1] == 'O' && gameBoard[2][2] == 'O') {
       oWin = true;
   }
   else if (gameBoard[0][2] == 'O' && gameBoard[1][1] == 'O' && gameBoard[2][0] == 'O') {
       oWin = true;
   }
   if (xWin == true) {
       cout << "Player 1 wins!";
   }
   if (oWin == true) {
       cout << "Player 2 wins!";
   }

   else // Otherwise both are tie!!!
   {

       for (int i = 0; i < ROWS; i++) {
           for (int j = 0; j < COLS; j++) {
               if (gameBoard[i][j] == '*') {
                   asterisk = true;
               }
           }
       }
       Tie = !asterisk;
       if (Tie) {
           cout << "Tie!";
       }
   }
   gameOver = Tie || xWin || oWin;
   return gameOver;
}

/*
Function: checkPalindrome
ParamIn: none
ParamOut: None
Description: Prompt for a word or phrase
               Display palindrome or not
*/
void checkPalindrome() {
   string word;
   cin.ignore();
   cout << "\n a word or phrase to check palindrome(or q to quit): ";
   getline(cin, word);
   //If palindrome
   if (checkPalindrome(word)) {
       cout << word << " is palindrome!!" << endl;
   }
   //Otherwise
   else {
       cout << word << " is not palindrome!!" << endl;
   }
}
/*
   Function to check palindrome
   Param In: word, string to check
   Param Out: True/False
*/
bool checkPalindrome(string word) {
   if (removeOther(word) == removeOther(reverse(word))) {
       return true;
   }
   return false;
}
/*
   Function to reverse a string
   Param In: word, String to reverse
   Param Out: reversed string
*/
string reverse(string word) {
   string reverseString = "";
   for (int i = word.length() - 1; i >= 0; i--) {
       reverseString += word[i];
   }
   return reverseString;
}
/*
Function: removeOther
Param In: Stringto rempve
ParamOut: removed string
Description: Function to remove all characters other than letters and numbers
and change all alphabets into lowercase
*/
string removeOther(string word) {
   string temp = "";
   for (int i = 0; i < word.length(); i++) {
       if (isalpha(word[i])) {
           temp += tolower(word[i]);
       }
       else if (isdigit(word[i])) {
           temp += tolower(word[i]);
       }
   }
   return temp;
}

Output

1436 Gamee Menu
----------------
1. HI/LO Guessing
2. Tic Tac Toe
3. Palindrome Checker
0. Quit
Enter your choice: 1

Guess the secret number between 1-100: 24
OOPS!!!YOUR GUESS IS LOW!!!

1436 Gamee Menu
----------------
1. HI/LO Guessing
2. Tic Tac Toe
3. Palindrome Checker
0. Quit
Enter your choice: 2
1 2 3
1 * * *
2 * * *
3 * * *
player 1, Row: 1
player 1, Column: 1
1 2 3
1 X * *
2 * * *
3 * * *
player 2, Row: 2
player 2, Column: 1
1 2 3
1 X * *
2 O * *
3 * * *
player 1, Row: 1
player 1, Column: 2
1 2 3
1 X X *
2 O * *
3 * * *
player 2, Row: 2
player 2, Column: 2
1 2 3
1 X X *
2 O O *
3 * * *
player 1, Row: 1
player 1, Column: 3
1 2 3
1 X X X
2 O O *
3 * * *
Player 1 wins!
1436 Gamee Menu
----------------
1. HI/LO Guessing
2. Tic Tac Toe
3. Palindrome Checker
0. Quit
Enter your choice: 3

a word or phrase to check palindrome(or q to quit): Malayalam
Malayalam is palindrome!!

1436 Gamee Menu
----------------
1. HI/LO Guessing
2. Tic Tac Toe
3. Palindrome Checker
0. Quit
Enter your choice: 4
Error!!!Option should be 0-3!!
Enter your choice: 0
