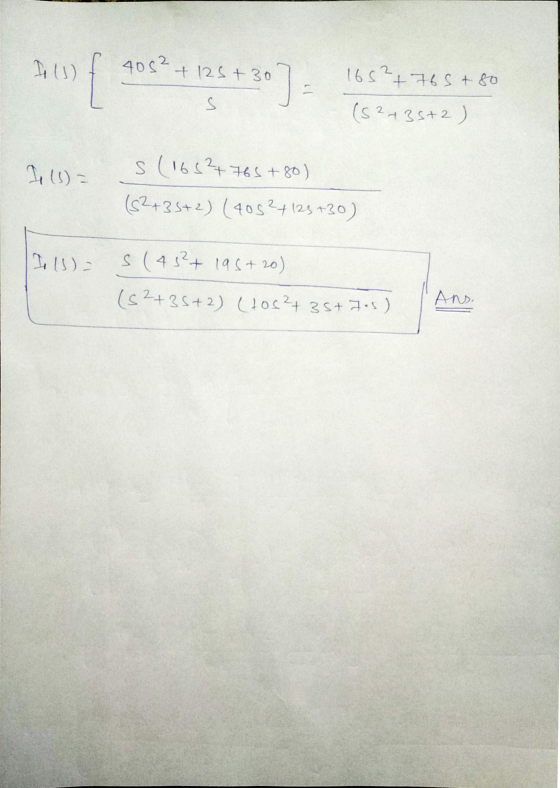

![4052 20{ +125+30] 1652765 +80 (52 435+2) S 1,1) s (1652+765 +80) (52+35+2) (4052+123 +30) I ) s (45?+ 195+20) (52+35+2) (1032](http://img.homeworklib.com/questions/0f444c00-0218-11eb-8ee6-f77d8918facb.png?x-oss-process=image/resize,w_560)
Add Answer to:
Can you help me solve this problem and show the steps?
Find the current ii(t) using...

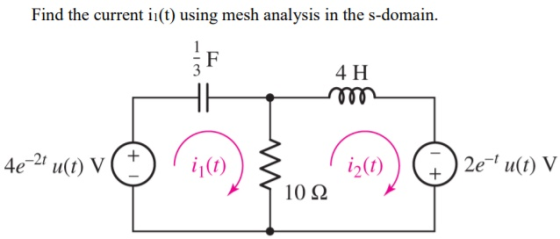

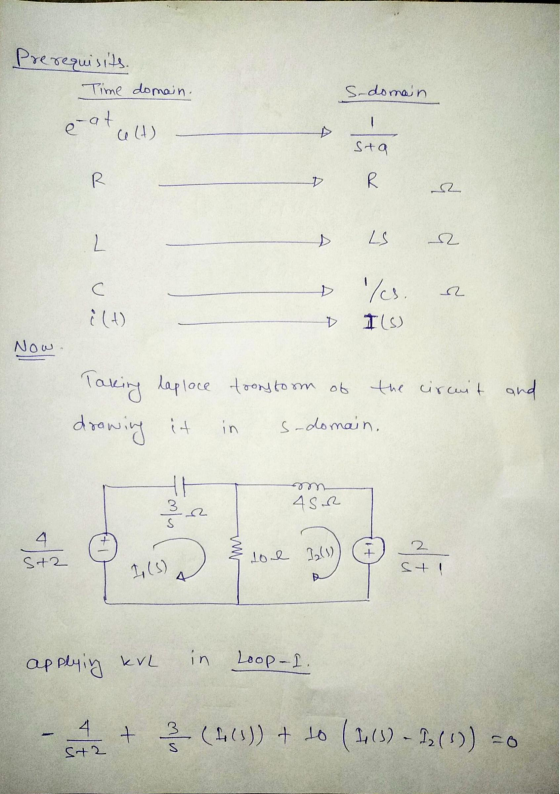

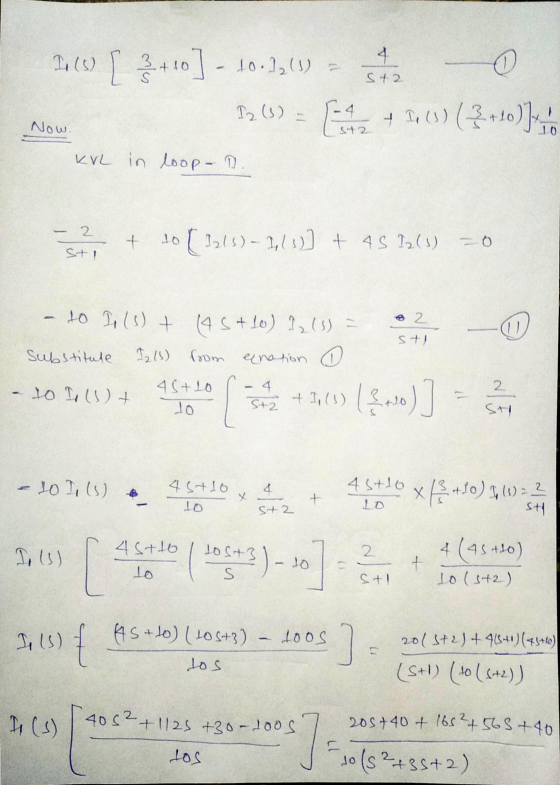

5. Find the current is(t) using mesh analysis in the s-domain. (20 pts) F 4H mm...
5. Find the current is(t) using mesh analysis in the s-domain. (20 pts) F 4H mm HH 4e-2t u(t) V i2(1) 2eu(t) V 102
Can you help me solve this problem and show the steps? What is the current, I,...
Can you help me solve this problem and show the steps?
What is the current, I, in the transistor? Assume Vrn=0.60 V. +0.2 V W =10 +5
Can you help me solve this problem and show the steps? Compute the Laplace transform of...
Can you help me solve this problem and show the steps?
Compute the Laplace transform of the function f(t) = 2u(t - 2). Do not skip steps.
Can you help me solve this problem and show the steps? Find the Q-point for the...
Can you help me solve this problem and show the steps?
Find the Q-point for the BJT circuit Assume that βε= 50 and VBE = 0.7V. +9 V 68 ΚΩ 43 kΩ 36 ΚΩ 27 ΚΩ Η.
Can you help me solve this problem and show the steps? For the circuit given, determine...
Can you help me solve this problem and show the steps?
For the circuit given, determine the average power dissipated in the 100 kq resistor 100 Ω ww 11:10 + + 50 V rms 2+ V V2 12 100 k22
Can you help me solve this problem and show the steps? Assume K'n is (100*10^-6) Find...
Can you help me solve this problem and show the steps? Assume
K'n is (100*10^-6)
Find the Q-point for the transistor in the circuit if Vpp = +12 V. Assume VIN=0.60 V gloo 100 k12 HEX-20 W 20 L 1
I need help solving this problem. Vi V2 Problem 1) Show steps below to solve V1...
I need help solving this problem.
Vi V2 Problem 1) Show steps below to solve V1 and V2 using Nodal Analysis i) Write equation for controlling current I, in terms of node voltage V2 [2] 21 2 ΚΩk 8 kΩΣ 4 ΚΩΣ ii) Write KVL equation for Supernode source [1] iii) Write Node equation for V, and simplify in terms of V, and V2 [2] iv) Write Node equation for V2 and simplify in terms of V, and V2 [2]...
Can you help me solve this problem and show the steps? Demonstrate with calculations the transfer...
Can you help me solve this problem and show the steps?
Demonstrate with calculations the transfer function of the circuit below. Then calculate the pole and zero for R = 1 kOhm and C = 10 uF (micro Farads). Then draw the magnitude and phase plots as a function of frequency. If your drawing is not square, you will lose 2 pts per crooked line. R + + Vin(t) C: Vou(t)
Can you help me solve this problem and show the steps? Design a resistively loaded NMOS...
Can you help me solve this problem and show the steps?
Design a resistively loaded NMOS inverter to operate from a 3.3-V power supply. The inverter should dissipate not more than P = 0.2 mW. The low voltage input (flow logic input') is VL = 0.2 V. Assume VIN = 0.7 V. Also the transconductance value is Kn = 100x106 A/V2. Assumptions: (a) the transistor is 'off when Vi = VL and (b) the transistor is the triode region for...
Can you help me solve this problem and show the steps? The local transformer shown below...
Can you help me solve this problem and show the steps?
The local transformer shown below provides the last voltage stepdown in a power distribution system. A common sight on utility poles in residential areas, it is a single-phase transformer that typically has a 13.8-kV rms line to neutral on its primary coil, and a center tap secondary coil provides both 120 V rms and 240 V rms to service several residences. A typical example of this transformer is shown...
5. Find the current is(t) using mesh analysis in the s-domain. (20 pts) F 4H mm HH 4e-2t u(t) V i2(1) 2eu(t) V 102
Can you help me solve this problem and show the steps?
What is the current, I, in the transistor? Assume Vrn=0.60 V. +0.2 V W =10 +5
Can you help me solve this problem and show the steps?
Compute the Laplace transform of the function f(t) = 2u(t - 2). Do not skip steps.
Can you help me solve this problem and show the steps?
Find the Q-point for the BJT circuit Assume that βε= 50 and VBE = 0.7V. +9 V 68 ΚΩ 43 kΩ 36 ΚΩ 27 ΚΩ Η.
Can you help me solve this problem and show the steps?
For the circuit given, determine the average power dissipated in the 100 kq resistor 100 Ω ww 11:10 + + 50 V rms 2+ V V2 12 100 k22
Can you help me solve this problem and show the steps? Assume
K'n is (100*10^-6)
Find the Q-point for the transistor in the circuit if Vpp = +12 V. Assume VIN=0.60 V gloo 100 k12 HEX-20 W 20 L 1
I need help solving this problem.
Vi V2 Problem 1) Show steps below to solve V1 and V2 using Nodal Analysis i) Write equation for controlling current I, in terms of node voltage V2 [2] 21 2 ΚΩk 8 kΩΣ 4 ΚΩΣ ii) Write KVL equation for Supernode source [1] iii) Write Node equation for V, and simplify in terms of V, and V2 [2] iv) Write Node equation for V2 and simplify in terms of V, and V2 [2]...
Can you help me solve this problem and show the steps?
Demonstrate with calculations the transfer function of the circuit below. Then calculate the pole and zero for R = 1 kOhm and C = 10 uF (micro Farads). Then draw the magnitude and phase plots as a function of frequency. If your drawing is not square, you will lose 2 pts per crooked line. R + + Vin(t) C: Vou(t)
Can you help me solve this problem and show the steps?
Design a resistively loaded NMOS inverter to operate from a 3.3-V power supply. The inverter should dissipate not more than P = 0.2 mW. The low voltage input (flow logic input') is VL = 0.2 V. Assume VIN = 0.7 V. Also the transconductance value is Kn = 100x106 A/V2. Assumptions: (a) the transistor is 'off when Vi = VL and (b) the transistor is the triode region for...
Can you help me solve this problem and show the steps?
The local transformer shown below provides the last voltage stepdown in a power distribution system. A common sight on utility poles in residential areas, it is a single-phase transformer that typically has a 13.8-kV rms line to neutral on its primary coil, and a center tap secondary coil provides both 120 V rms and 240 V rms to service several residences. A typical example of this transformer is shown...
