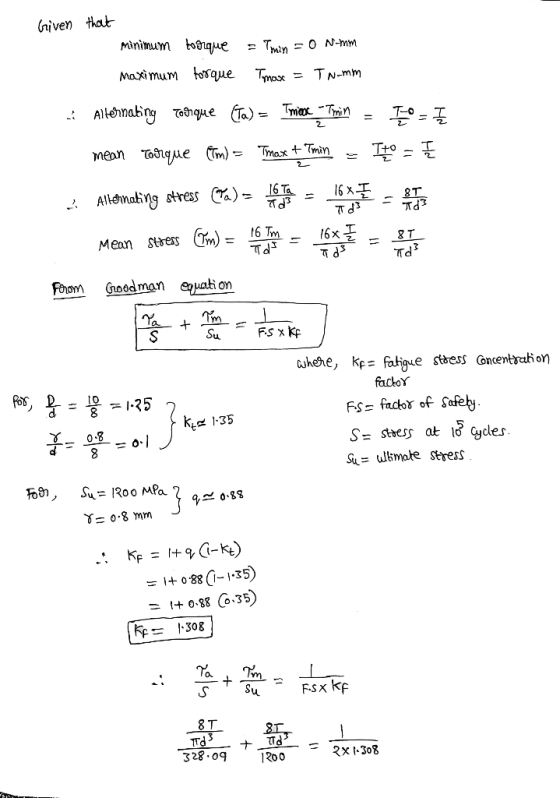

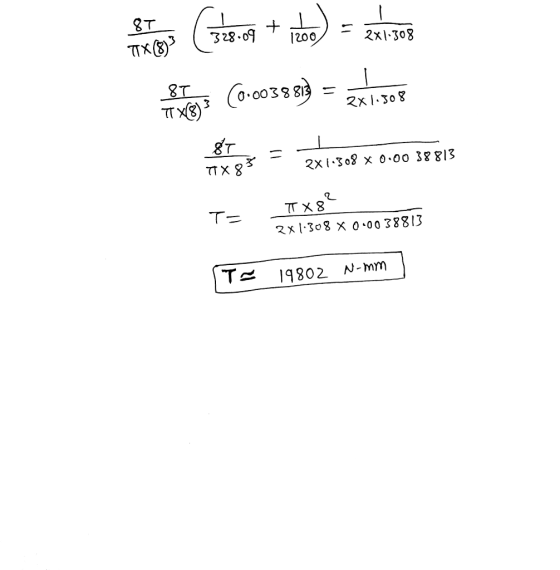

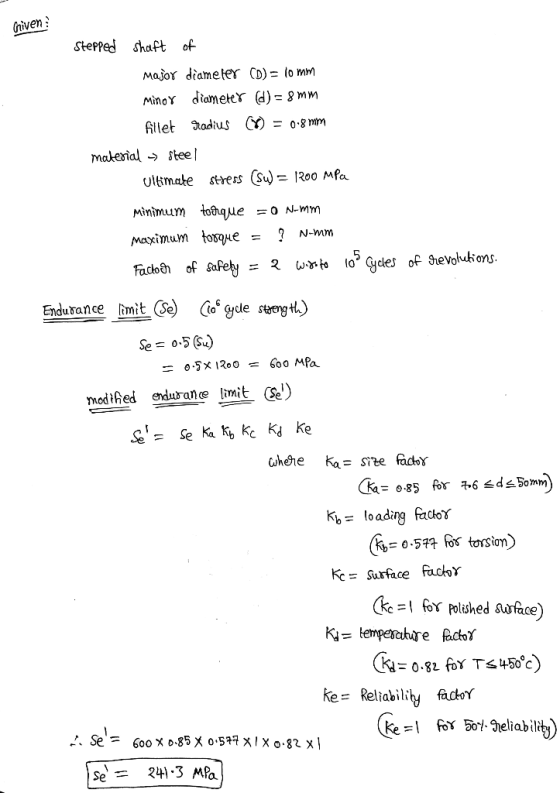

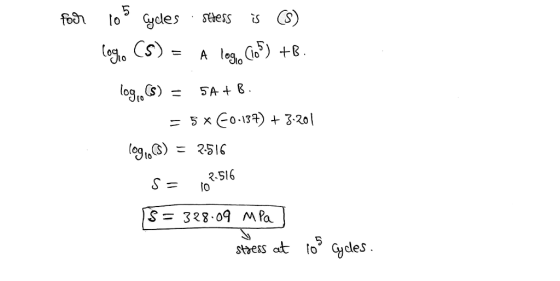

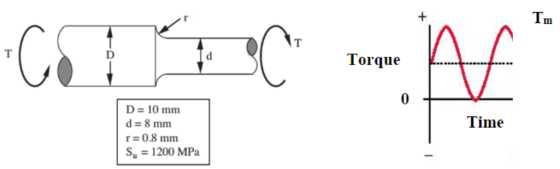

A stepped shaft as shown, has the dimensions D = 10mm, d = 8mm, r=0.8mm. It is made of steel having Su = 1200 MPa
A stepped shaft as shown, has the dimensions D = 10mm, d = 8mm, r=0.8mm. It is made of steel having Su = 1200 MPa (~ 180 Ksi) and is finished with grinding operation. In service, it is loaded with a fluctuating Zero - to - Maximum torque (unknown). Estimate this Maximum torque with a safety factor of 2 with respect to 105Cycles of revolutions.
Homework Answers
Add Answer to:
A stepped shaft as shown, has the dimensions D = 10mm, d = 8mm, r=0.8mm. It is made of steel having Su = 1200 MPa
A stepped shaft with a ground finish is made of steel with an ultimate tensile strength of 1200 MPa. The shaft is l...
A stepped shaft with a ground finish is made of steel with an ultimate tensile strength of 1200 MPa. The shaft is loaded with a fully reversed torque of 20 Nm. Dimensions of the shaft are given below. (5) a) Given the stress concentration for fatigue loading, Kfs 1.3, find the location and magnitude of the maximum stress in the shaft. (14) b) Find the endurance limit, assuming room temperature and a reliability of 99%. (1) c)Will the part have...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown below, along with the external torques applied on it. The shaft has a fixed support at point A. Answer the following: (35 pt) a. Plot the internal torque diagram. b. Find the maximum shearing stress on a section 3 m from the left end of the shaft (A). 35 kNm C. Find the maximum shearing strain on a 1 m section 3 m from...
The shaft shown in figure is subjected to a reversed bending torque .The moment is distributed along the shaft as if...
The shaft shown in figure is subjected to a reversed bending torque .The moment is distributed along the shaft as iflustra values 2000N.m and 3000 transmitted torque T-4000 N.m .The shaft is made of hardened steel having (Sy-900 MP, Su-1200 MP. ),and all important surfaces are finished by grinding For reliability of 99% and a safety factor of 2.5. (a) Determine the diameter d against static failure (b) Determine the diameter d against fatigue failure using Goodman approach if D-1.1d...
A notched circular shaft shown is subjected to fully reversed bending. D=12.7mm, d=10.16 mm, and r=0.5mm. The steel material has the following mechanical and fatigue properties: yield strength (σ0)=10...
A notched circular shaft shown is subjected to fully reversed
bending. D=12.7mm, d=10.16 mm, and r=0.5mm. The steel material has
the following mechanical and fatigue properties: yield strength
(σ0)=1000 MPa, ultimate strength (σu)=1200 MPa, the fatigue
strength coefficient (σf’)=1600 MPa, the fatigue strength exponent
(b)=-0.1, and the fatigue limit (σe)=400 MPa.
5. (20 pts) A notched circular shaft shown is subjected to fully reversed bending. D-12.7mm, d-10.16 mm, and r-0.5mm. The steel material has the following mechanical and fatigue properties:...
5. (20 pts) A notched circular shaft shown is subjected to fully reversed bending. D-12.7mm, d-10.16 mm, and r-0.5mm. The steel material has the following mechanical and fatigue properties: yield str...
5. (20 pts) A notched circular shaft shown is subjected to fully reversed bending. D-12.7mm, d-10.16 mm, and r-0.5mm. The steel material has the following mechanical and fatigue properties: yield strength (0o)-1000 MPa, ultimate strength (o ) 1200 MPa, the fatigue strength coefficient (σ) 1600 MPa, the fatigue strength exponent (b) 0.1, and the fatigue limit (oe)-400 MPa. a) (10 pts) Determine the fatigue (S-N) curve for the given notched circular shaft under fully reversed bending (computer generated graph is...
A stepped shaft with a ground finish is made of steel with an ultimate tensile strength of 1200 MPa. The shaft is loaded with a fully reversed torque of 20 Nm. Dimensions of the shaft are given below. (5) a) Given the stress concentration for fatigue loading, Kfs 1.3, find the location and magnitude of the maximum stress in the shaft. (14) b) Find the endurance limit, assuming room temperature and a reliability of 99%. (1) c)Will the part have...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown below, along with the external torques applied on it. The shaft has a fixed support at point A. Answer the following: (35 pt) a. Plot the internal torque diagram. b. Find the maximum shearing stress on a section 3 m from the left end of the shaft (A). 35 kNm C. Find the maximum shearing strain on a 1 m section 3 m from...
The shaft shown in figure is subjected to a reversed bending torque .The moment is distributed along the shaft as iflustra values 2000N.m and 3000 transmitted torque T-4000 N.m .The shaft is made of hardened steel having (Sy-900 MP, Su-1200 MP. ),and all important surfaces are finished by grinding For reliability of 99% and a safety factor of 2.5. (a) Determine the diameter d against static failure (b) Determine the diameter d against fatigue failure using Goodman approach if D-1.1d...
A notched circular shaft shown is subjected to fully reversed
bending. D=12.7mm, d=10.16 mm, and r=0.5mm. The steel material has
the following mechanical and fatigue properties: yield strength
(σ0)=1000 MPa, ultimate strength (σu)=1200 MPa, the fatigue
strength coefficient (σf’)=1600 MPa, the fatigue strength exponent
(b)=-0.1, and the fatigue limit (σe)=400 MPa.
5. (20 pts) A notched circular shaft shown is subjected to fully reversed bending. D-12.7mm, d-10.16 mm, and r-0.5mm. The steel material has the following mechanical and fatigue properties:...
5. (20 pts) A notched circular shaft shown is subjected to fully reversed bending. D-12.7mm, d-10.16 mm, and r-0.5mm. The steel material has the following mechanical and fatigue properties: yield strength (0o)-1000 MPa, ultimate strength (o ) 1200 MPa, the fatigue strength coefficient (σ) 1600 MPa, the fatigue strength exponent (b) 0.1, and the fatigue limit (oe)-400 MPa. a) (10 pts) Determine the fatigue (S-N) curve for the given notched circular shaft under fully reversed bending (computer generated graph is...
