Question

Choose your own adventure games, movies and books are a not so popular sub section of entertainment media, where each story is written from a second-person point of view, with the reader assuming the role of the protagonist and making choices that determine the main character’s actions and the plot’s outcome. These actions are usually only a choice between two deciding factors where sometimes the stories advance to different paths or a path you were position you had previously been to is revisited. Occasionally when revisiting a node that you have been to before actions may have changed ever so slightly. In this problem we are going to design the logic for this system using our knowledge of data structures. In PRIMARY LANGUAGE: Create an ChooseYourAdventure Class:

In this problem you will create a class named ChooseYourAdventure that will create an object that lets the user design their own ”Choose You Own Adventure App.” This app will be created from interconnected elements that are related to each other by unidirectional links. One element can have at most two links leaving that element and going to another. Links leaving the element can be added to any element that isn’t marked ENDING; and the links can be connected to any node. When constructing your ChooseYourAdventure objects they must take in ONE STRING for the STARTING ELEMENT, and an ARRAY OF STRINGS for the ENDING elements that must have a size be greater than 0. A ChooseYourAdventure object must only have one STARTING element that cannot be replaced ( though the string that it presents can be edited ); the same thing applies to each ENDING ELEMENT. ENDING ELEMENTS MAY NOT BE REMOVED OR ADDED TO. You may add elements to the ChooseYourAdventure object that include their own string to present to the user. Each element should be able to tell: how long the user has been on the game; how often the user has traveled to this element; which node that the user has traveled to it from. A ChooseYourAdventure object should also be able to show the history of every choice made to progress the story. In a comment block before the class definition you will describe the data structures and primitive data types used to satisfy the requirements for this class. In a comment block, before each method/function not only will you describe the inputs and outputs of the method, but you will also state how it works and its Big-O time complexity and space complexity.

ChooseYourAdventure Requirements ( can be renamed ):

• numberOfElements

• addElement

• addLink

• removeElement

• removeLink

• choiceHistory

Element Requirements ( can be renamed ):

• links

• isEnding

• storyLines - the string or STRINGS presented to the user based on times visited, how many choices the user has made and where the user visited from where

• printStory - prints the correct storyline based on times visited, how many choices the user has made and where the user visited from where

(No outside library such as java.util* be used except Scanner, Date, Timer)

(Please put it in Java)

Answer 1

Working code implemented in Java and appropriate comments provided for better understanding:

Here I am attaching code for these files:

• Main.java
• ChooseYourAdventure.java

Source code for Main.java:

import java.util.Scanner;

public class Main {
public static void main(String[] args) {
ChooseYourAdventure chooseYourAdventure = new ChooseYourAdventure();
creator(chooseYourAdventure);
play(chooseYourAdventure);
}

public static void menu(){
System.out.println("1. Show elements");
System.out.println("2. Add element");
System.out.println("3. Update element");
System.out.println("4. Remove element");
System.out.println("5. Add link");
System.out.println("6. Remove link");
System.out.println("7. Finish creation");
}

public static void play(ChooseYourAdventure chooseYourAdventure){
System.out.println("\n\n\nBegin\n");
chooseYourAdventure.play();
}

public static void creator(ChooseYourAdventure chooseYourAdventure){
chooseYourAdventure.init();
int choice = 0;
while(choice!=7){
menu();
Scanner scanner = new Scanner(System.in);
System.out.print("Enter: ");
choice = scanner.nextInt();
switch (choice){
case 1:{
chooseYourAdventure.printNodes();
break;
}
case 2:{
chooseYourAdventure.addElement();
break;
}
case 3:{
chooseYourAdventure.update();
break;
}
case 4:{
chooseYourAdventure.removeElement();
break;
}
case 5:{
chooseYourAdventure.addLink();
break;
}
case 6:{
chooseYourAdventure.removeLink();
break;
}
default: {
break;
}
}
}
}
}

Source code for ChooseYourAdventure.java:

import java.util.Scanner;

/**
* A class to create Choose Your Adventure App and using it.
*
* To satisfy the requirements for this class are used types: int, String.
* Data structures: list, tree.
*
*/
public class ChooseYourAdventure {

private Node head;
private Element root;
private int size;
private int maxId;

public ChooseYourAdventure() {
head = null;
root = null;
size = 0;
maxId = 0;
}

/**
* A method to start play.
* <p>
* Prints starting story. Then checks the user's selection and
* prints the next stories until the user reaches the ending story.
* <p>
* Time complexity: O(log(n))
* Space complexity: O(n).
*/
public void play() {
System.out.println(root.story);
root.timesVisited++;
Element.addStoryLine(root.story);
Element tmp = root;
while (tmp != null) {
if (tmp.isEnding()) {
System.out.println("\nThe end of the story!");
break;
}
if (tmp.left != null) {
System.out.print("Choose next branch from");
System.out.print(" (1)");
if (tmp.right != null) {
System.out.print(", (2)");
}
System.out.print(": ");
Scanner scanner = new Scanner(System.in);
int choice = scanner.nextInt();
if (choice == 1) {
tmp = tmp.left;
System.out.println(tmp.story);
tmp.timesVisited++;
Element.addStoryLine(" -> \n" + tmp.story);
} else if (choice == 2) {
if (tmp.right != null) {
tmp = tmp.right;
System.out.println(tmp.story);
tmp.timesVisited++;
Element.addStoryLine(" -> \n" + tmp.story);
} else {
System.out.println("Branch (" + choice + ") doesn't exist.");
}
} else {
System.out.println("Branch (" + choice + ") doesn't exist.");
}
} else {
System.out.println("\nThe end of the story!");
break;
}
}

}

/**
* A method to print not ending nodes.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*
* @return number of not ending elements.
*/
public int printNotEndingNodes() {
int count = 0;
Node tmp = null;
if (head != null) {
tmp = head.next;
}
while (tmp != null) {
if (!tmp.element.isEnding()) {
System.out.print("Element #" + tmp.id);
System.out.println(": " + tmp.element.story);
count++;
}
tmp = tmp.next;
}
return count;
}

/**
* A method to update element.
* <p>
* Checks if there are elements to update. Take element id.
* Update element with that id.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void update() {
if (size != 0) {
int count = printNotEndingNodes();
if (count != 0) {
int id;
System.out.print("Enter element number: ");
Scanner scanner = new Scanner(System.in);
id = scanner.nextInt();
if (id <= maxId) {
if (size == 1 || id == 1) {
System.out.println("You can't update starting element.");
} else {
Node tmp = head;
while (tmp.next.id != id) {
tmp = tmp.next;
if (tmp.next == null) {
System.out.println("Element number " + id + " doesn't exist.");
return;
}
}
if (!tmp.next.element.isEnding()) {
System.out.print("Enter new story: ");
Scanner updateScanner = new Scanner(System.in);
String story = updateScanner.nextLine();
tmp.next.element.updateStory(story);
} else {
System.out.println("You can't update ending element.");
}
}
} else {
System.out.println("Element number " + id + " doesn't exist.");
}
} else {
System.out.println("There are no elements to update.");
}
} else {
System.out.println("There are no elements.");
}
}

/**
* A method to print nodes.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void printNodes() {
Node tmp = head;
while (tmp != null) {
System.out.print("Element #" + tmp.id);
if (tmp.element.isEnding()) {
System.out.print(" (Ending)");
}
System.out.println(": " + tmp.element.story);
tmp = tmp.next;
}
}

/**
* A method to initialise Choose Your Adventure App.
* <p>
* Creates start element. Take number of ending elements.
* Creates ending elements.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void init() {
System.out.print("Enter story for start element: ");
Scanner scanner = new Scanner(System.in);
String story = scanner.nextLine();
root = new Element(null, null, story, false);
head = new Node(null, root, ++maxId);
size++;
System.out.print("Enter the number of ending elements: ");
int num = scanner.nextInt();
size += num;
for (int i = 0; i < num; i++) {
Scanner scanner1 = new Scanner(System.in);
int number = i + 1;
System.out.print("Enter story for ending element #" + number + ": ");
String endingStory = scanner1.nextLine();
Element element = new Element(null, null, endingStory, true);
Node node = new Node(null, element, ++maxId);

Node tmp = head;
while (tmp.next != null) {
tmp = tmp.next;
}
tmp.next = node;
}
}

/**
* A method to print nodes with free links.
* <p>
* Goes through the list of nodes. Prints nodes with free links and keeps
* their ids.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*
* @return ids nodes with free links.
*/
public int[] printNodesWithFreeLinks() {
Node tmp = head;
int[] ids = new int[maxId];
int i = 0;
while (tmp != null) {
if ((tmp.element.left == null || tmp.element.right == null) && !tmp.element.isEnding()) {
System.out.println("Element #" + tmp.id + ": " + tmp.element.story);
ids[i] = tmp.id;
i++;
}
tmp = tmp.next;
}
return ids;
}

/**
* A method to add link.
* <p>
* Finds nodes with ids from and to.
* Adds link between them.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*
* @param from - node id from the element of which the link will go.
* @param to - node id to the element of which the link will go.
*/
private void addLink(int from, int to) {
Element fromElement = null, toElement = null;
Node tmp = head;
while (tmp != null) {
if (tmp.id == from) {
fromElement = tmp.element;
}
if (tmp.id == to) {
toElement = tmp.element;
}
tmp = tmp.next;
}
assert fromElement != null;
if (fromElement.left == null) {
fromElement.left = toElement;
} else {
fromElement.right = toElement;
}
}

/**
* A method to remove link.
* <p>
* Finds nodes with ids from and to.
* Removes link between them.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*
* @param from - node id from the element of which the link will be removed.
* @param to - node id to the element of which the link will be removed.
*/
private void removeLink(int from, int to) {
Node tmp = head;
Element elementFrom = null, elementTo = null;
while (tmp != null) {
if (tmp.id == from) {
elementFrom = tmp.element;
}
if (tmp.id == to) {
elementTo = tmp.element;
}
tmp = tmp.next;
}
if (elementFrom != null) {
if (elementFrom.right != null) {
if (elementFrom.right == elementTo) {
elementFrom.right = null;
}
}
if (elementFrom.left != null) {
if (elementFrom.left == elementTo) {
elementFrom.left = null;
}
}
}
}

/**
* A method to add link.
* <p>
* Checks of there are elements to link.
* Asks the user between which elements he wants to add a link.
* Calls private addLink method.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void addLink() {
int[] ids = printNodesWithFreeLinks();
if (ids.length == 0) {
System.out.println("There are no elements to link.");
return;
}
if (ids[0] == 0) {
System.out.println("There are no elements to link.");
return;
}
System.out.println("Choose which element you want to add the link to: ");
System.out.print("Enter element number: ");
Scanner scanner = new Scanner(System.in);
int id = scanner.nextInt();
boolean idExists = false;
for (int i = 0; i < ids.length; i++) {
if (id == ids[i]) {
idExists = true;
}
}
if (idExists) {
System.out.println("Choose which element you want to link to: ");
printNodes();
System.out.print("Enter element number: ");
int nextId = scanner.nextInt();
if (nextId != id) {
addLink(id, nextId);
} else {
System.out.println("You cannot link an element to itself");
}
} else {
System.out.println("Element with id = " + id + " doesn't exist.");
}
}

/**
* A method to remove link.
* <p>
* Asks the user between which elements he wants to remove a link.
* Calls private removeLink method.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void removeLink() {
System.out.println("Select the elements between which you want to remove the link: ");
printNodes();
Scanner scanner = new Scanner(System.in);
System.out.print("Enter the element number the link you want to remove from: ");
int from = scanner.nextInt();
System.out.print("Enter the element number the link you want to remove: ");
int to = scanner.nextInt();
removeLink(from, to);
}

/**
* A method to return number of elements.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*
* @return number of elements.
*/
public int numberOfElements() {
return size;
}

/**
* A method to add element.
* <p>
* Takes story from creator. Creates element and adds it to list.
* <p>
* Time complexity: O(n)
* Space complexity: O(n).
*/
public void addElement() {
String story;
System.out.print("Enter story: ");
Scanner scanner = new Scanner(System.in);
story = scanner.nextLine();
Element element = new Element(null, null, story, false);
Node node = new Node(null, element, ++maxId);
if (head == null) {
head = node;
} else {
Node tmp = head;
while (tmp.next != null) {
tmp = tmp.next;
}
tmp.next = node;
}
size++;
}

/**
* A method to remove element.
* <p>
* Checks if there are elements to remove.
* Takes element number to remove. Removes if element exists.
* Remove links connected with that element.
* <p>
* Time complexity: O(n^2)
* Space complexity: O(n).
*/
public void removeElement() {
if (size != 0) {
int count = printNotEndingNodes();
if (count != 0) {
int id;
System.out.print("Enter element number: ");
Scanner scanner = new Scanner(System.in);
id = scanner.nextInt();
if (id <= maxId) {
if (size == 1 || id == 1) {
System.out.println("You can't remove starting element.");
} else {
Node tmp = head;
while (tmp.next.id != id) {
tmp = tmp.next;
if (tmp.next == null) {
System.out.println("Element number " + id + " doesn't exist.");
return;
}
}
if (!tmp.next.element.isEnding()) {
for (int i = 1; i <= maxId; i++) {
if (i != id) {
removeLink(id, i);
removeLink(i, id);
}
}
tmp.next = tmp.next.next;
} else {
System.out.println("You can't remove ending element.");
}
}
size--;
} else {
System.out.println("Element number " + id + " doesn't exist.");
}
} else {
System.out.println("There are no elements to remove.");
}
} else {
System.out.println("There are no elements.");
}
}

private static class Element {
private Element left;
private Element right;
private String story;
private boolean ending;
private static String storyLine;
private int timesVisited;

public Element(Element left, Element right, String story, boolean ending) {
this.left = left;
this.right = right;
this.story = story;
this.ending = ending;
}

/**
* A method to add story to storyLine.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*
* @param story - story to add.
*/
public static void addStoryLine(String story) {
storyLine = storyLine.concat(story);
}

/**
* A method to return isEnding.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*
* @return is ending element.
*/
public boolean isEnding() {
return ending;
}

/**
* A method to update story.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*
* @param story - new story.
*/
public void updateStory(String story) {
this.story = story;
}

/**
* A method to remove story.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*/
public void removeStory() {
story = "";
}

/**
* A method to print times visited.
* <p>
* Time complexity: O(1)
* Space complexity: O(1).
*/
public void printTimesVisited() {
System.out.println("This element was " + timesVisited + " times visited.");
}

}

private static class Node {
private Node next;
private Element element;
private int id;

public Node(Node next, Element element, int id) {
this.next = next;
this.element = element;
this.id = id;
}
}
}

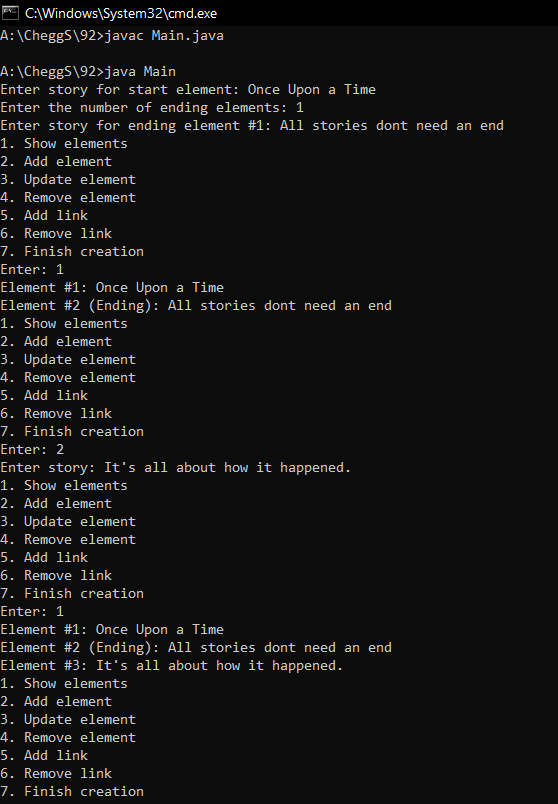

Sample Output Screenshots:

Hope it helps, if you like the answer give it a thumbs up. Thank you.
