Homework Answers
rotor frequency of the induction motor is depends on the slip of the rotor
fr = slip * supply frequency
rotor reactance = 2* pi* fr* rotor inductance
Xr
slip of the rotor (option C)
induced emf in rotor
slip of the rotor
so the motor produces more torque and the speed of the motor increases due to Lenz law
Add Answer to:

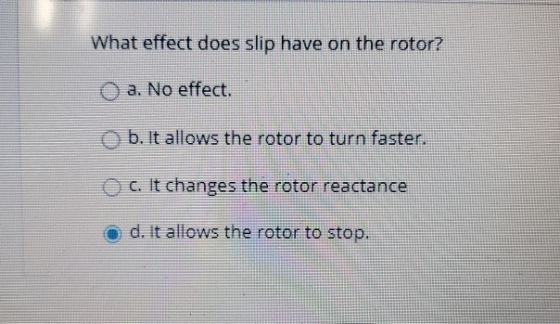

What effect does slip have on the rotor? O a. No effect. b. It allows the...
