1. Describe the interference pattern for four-slit experiment. 2. Describe the interference pattern for two-slit experiment:...

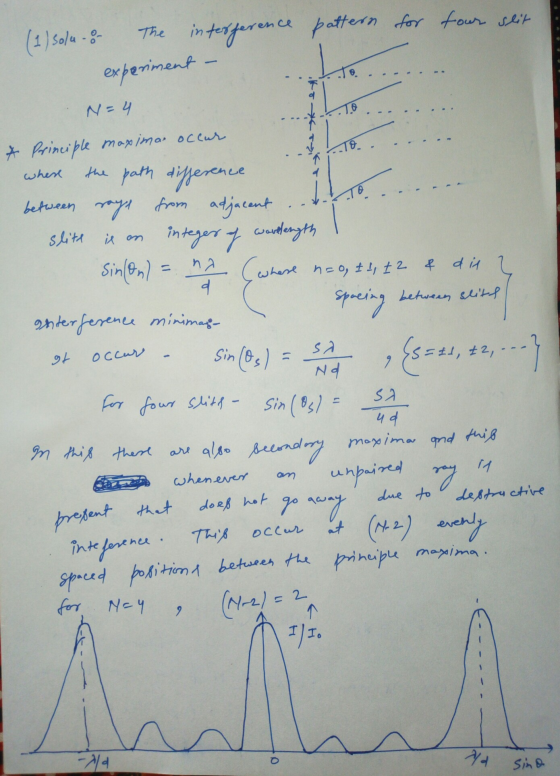

1. Describe the interference pattern for four-slit experiment.

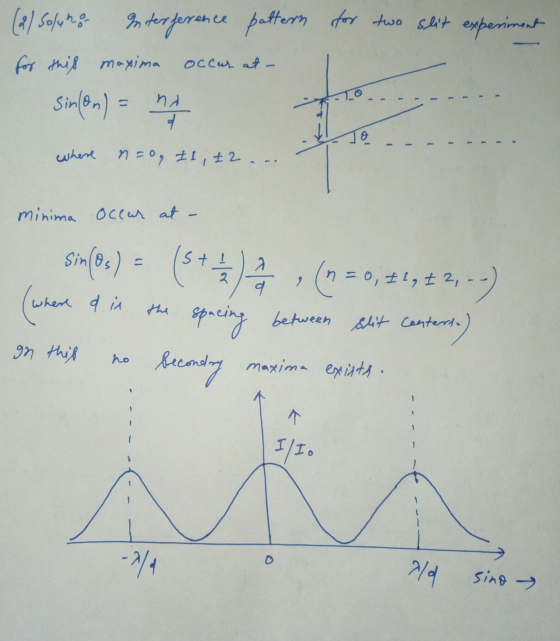

2. Describe the interference pattern for two-slit experiment:

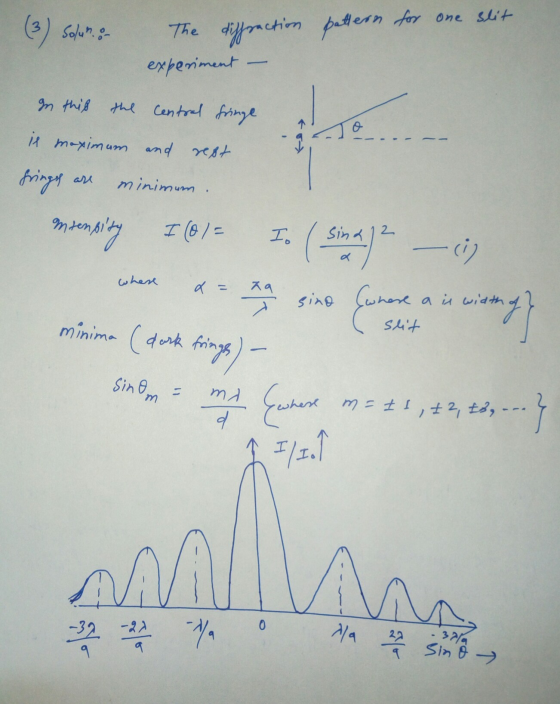

3. Describe the diffraction pattern for one-slit experiment:
-Please provide details and explain the CORRECT answer, do not guess, only answer it if you know the correct answers.
Homework Answers
