A 1.2-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed...

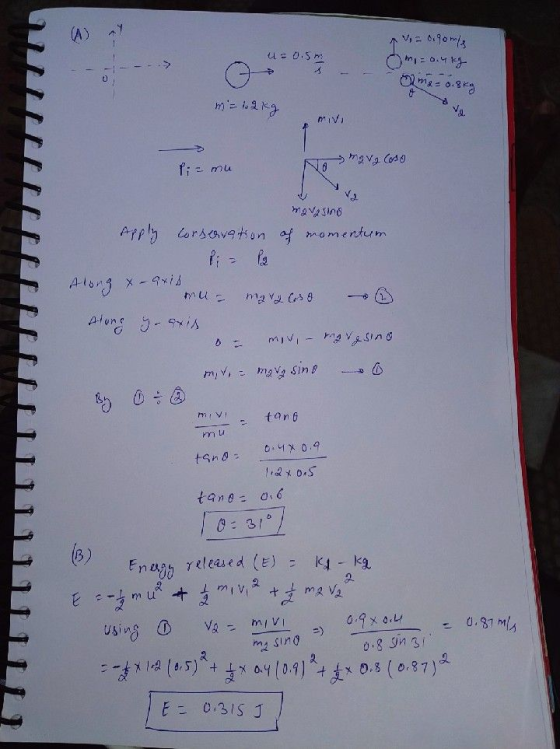

A 1.2-kg spring-activated toy bomb slides on a smooth surface along
the x-axis with a speed of 0.50 m/s. At the origin 0, the bomb
explodes into two fragments. Fragment 1 has a mass of 0.40 kg and a
speed of 0.90 m/s along the negative y-axis.
A. Find the angle θ, made by the velocity vector of fragment 2 and
the x-axis.
B. What is the energy released by the explosion?
Homework Answers
Add Answer to:
A 1.2-kg spring-activated toy bomb slides on a smooth surface along
the x-axis with a speed...
8. 20-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed...
8. 20-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed of 0.500 m/s. At the origin 0, the bomb explodes into two fragments. Fragment 1 has a mass of 0.400 kg and a speed of 0.900 m/s along the negative y- axis. In the figure, the angle , is made by the velocity vector of fragment 2 and the x-axis. Find the momentum vector of fragment 2 after the collision using conservation of momentum...
a.) Find the angle θ, made by the velocity vector of fragment 2 and the x-axis....
a.) Find the angle θ, made by the velocity vector of fragment 2
and the x-axis.
b.) What is the energy released by the explosion?
A 1.2-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed of 0.50 m/s. At the origin O, the bomb explodes into two fragments. Fragment 1 has a mass of 0.40 kg and a speed of 0.90 m/s along the negative y-axis. у у V2 0.80 kg 0.50 m/s o...
A 32.0-$kg$ body is moving in the direction of the positive x axis with a speed...
A 32.0-$kg$ body is moving in the direction of the positive x axis with a speed of 376 $m/s$ when, owing to an internal explosion, it breaks into three pieces. One part, whose mass is 9.5 $kg$, moves away from the point of explosion with a speed of 371 $m/s$ along the positive y axis. A second fragment, whose mass is 3.0 $kg$, moves away from the point of explosion with a speed of 486 $m/s$ along the negative x...
A 50.0 kg body is moving in the direction of the positive x axis with a...
A 50.0 kg body is moving in the direction of the positive x axis with a speed of 384 m/s when, owing to an internal explosion, it breaks into three pieces. One part, whose mass is 9.0 kg, moves away from the point of explosion with a speed of 353 m/s along the positive y axis. A second fragment, whose mass is 5.0 kg, moves away from the point of explosion with a speed of 313 m/s along the negative...
A 5 kg collar is attached to a spring and it slides along a smooth bar....
A 5 kg collar is attached to a spring and it slides along a
smooth bar. The spring has undeformed length of 35 cm and a
constant k= 700 N/m. The collar is released from rest as shown
below. Determine the force exerted by the rod on the collar
when;
a) The collar is at point A
b) The collar is at point B.
Not that both A and B are on the curved portion of the rod.
A 5...
Topic - center of mass and linear momentum: A 15 kg package is moving at a...
Topic - center of mass and linear momentum: A 15 kg package is moving at a speed of 10.0m/s vertically upward along a y-axis when it explodes intro three fragments: a 2.00kg fragment is shot upward with an initial speed of 20.0m/s and a 3.00 kg fragment is shot in the positive direction of a horizontal x axis with an initial speed of 5.00m/s. Find a) the speed of the third fragment right after the explosion. b) the total kinetic...
A leggs of mass 12g slides along a frictionaless surface with an initial speed of 2.6...
A leggs of mass 12g slides along a frictionaless surface with an initial speed of 2.6 m/s . If the leggs slides up a ramp and comes to rest, at what height does the leggs come to rest? If the leggo slides into an uncompressed spring (k=6.2 kg/s^2) on a smooth horizontal surface, wnat is the maximum compression of the pring by the leggo? If the leggo sldes into an uncopressed spring (6.2 kg/s^2) on a smooth horizontal surface, what...
(3) A particle of mass 3 kg travels along the y-axis with a speed of 5...
(3) A particle of mass 3 kg travels along the y-axis with a speed of 5 m/s. Then the particle explodes into two pieces. One piece moves as: m = 2 kg = 3i+2j m/s (a) Find the velocity (vector) of the other piece. (b) Find the impulse, J (a vector), on the 2 kg piece. (c) Find the impulse, J (a vector), on the other piece. (d) Considering the energy, what can you say about the explosion?
Exploding object A 25.0-Kq body is moving in the direction of the positive x axis with...
Exploding object A 25.0-Kq body is moving in the direction of the positive x axis with a speed of 323 m/s when, owing to an internal explosion, it breaks into three pieces. One part, whose mass is 6.0 kq, moves away from the point of explosion with a speed of 358 m/S along the positive y axis. A second fragment, whose mass is 3.5 kg, moves away from the point of explosion with a speed of 467 m/s along the...
A7 kg block is sliding along a smooth horizontal surface with an initial speed of the...
A7 kg block is sliding along a smooth horizontal surface with an initial speed of the graph plotted. 3 m/s. It is acted upon by e Fit), which varies in the manner illustrated in Vo-3 m/s 7 kg FIN 30 The velocity of the block when t1s is: Hint You will need to use Fat-"i-v,) to solve this problem. Select one: a.3m/s b. 12.57 m/s c, 5.25 m/s o d. 6.21 m/s O A 3 kg package slides down a...
8. 20-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed of 0.500 m/s. At the origin 0, the bomb explodes into two fragments. Fragment 1 has a mass of 0.400 kg and a speed of 0.900 m/s along the negative y- axis. In the figure, the angle , is made by the velocity vector of fragment 2 and the x-axis. Find the momentum vector of fragment 2 after the collision using conservation of momentum...
a.) Find the angle θ, made by the velocity vector of fragment 2
and the x-axis.
b.) What is the energy released by the explosion?
A 1.2-kg spring-activated toy bomb slides on a smooth surface along the x-axis with a speed of 0.50 m/s. At the origin O, the bomb explodes into two fragments. Fragment 1 has a mass of 0.40 kg and a speed of 0.90 m/s along the negative y-axis. у у V2 0.80 kg 0.50 m/s o...
A 5 kg collar is attached to a spring and it slides along a
smooth bar. The spring has undeformed length of 35 cm and a
constant k= 700 N/m. The collar is released from rest as shown
below. Determine the force exerted by the rod on the collar
when;
a) The collar is at point A
b) The collar is at point B.
Not that both A and B are on the curved portion of the rod.
A 5...
(3) A particle of mass 3 kg travels along the y-axis with a speed of 5 m/s. Then the particle explodes into two pieces. One piece moves as: m = 2 kg = 3i+2j m/s (a) Find the velocity (vector) of the other piece. (b) Find the impulse, J (a vector), on the 2 kg piece. (c) Find the impulse, J (a vector), on the other piece. (d) Considering the energy, what can you say about the explosion?
Exploding object A 25.0-Kq body is moving in the direction of the positive x axis with a speed of 323 m/s when, owing to an internal explosion, it breaks into three pieces. One part, whose mass is 6.0 kq, moves away from the point of explosion with a speed of 358 m/S along the positive y axis. A second fragment, whose mass is 3.5 kg, moves away from the point of explosion with a speed of 467 m/s along the...
A7 kg block is sliding along a smooth horizontal surface with an initial speed of the graph plotted. 3 m/s. It is acted upon by e Fit), which varies in the manner illustrated in Vo-3 m/s 7 kg FIN 30 The velocity of the block when t1s is: Hint You will need to use Fat-"i-v,) to solve this problem. Select one: a.3m/s b. 12.57 m/s c, 5.25 m/s o d. 6.21 m/s O A 3 kg package slides down a...
