the circuit is figure 1 a) Consider the electrical circuit in Figure 1. Determine the state...
Question 1 a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) (10 MARKS] 122 112 112 M + + vi(t) 1 H llll 1 H elle 1F vo(t)

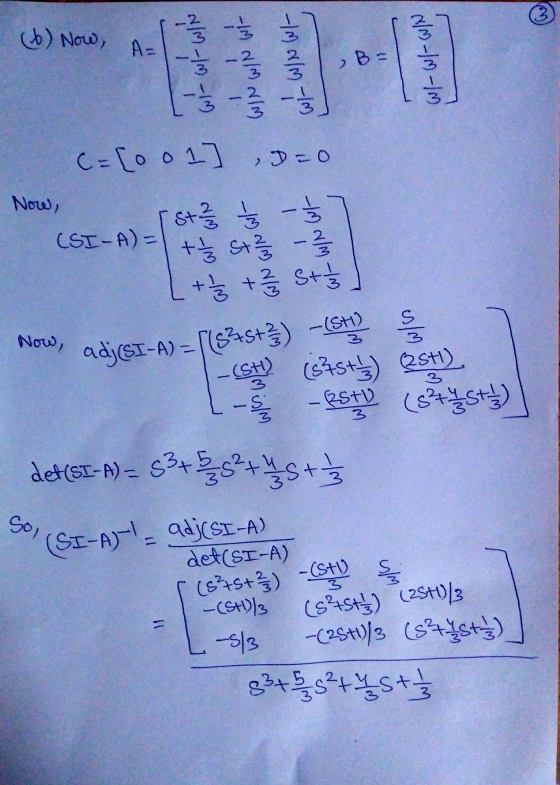

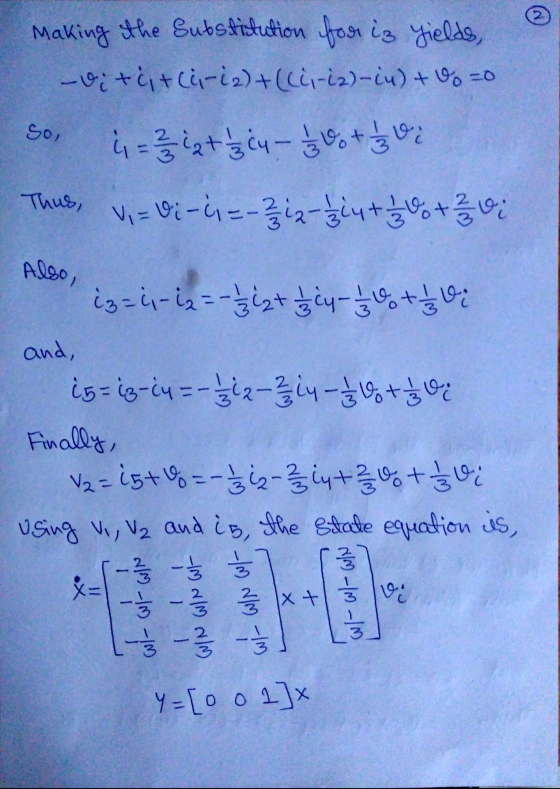

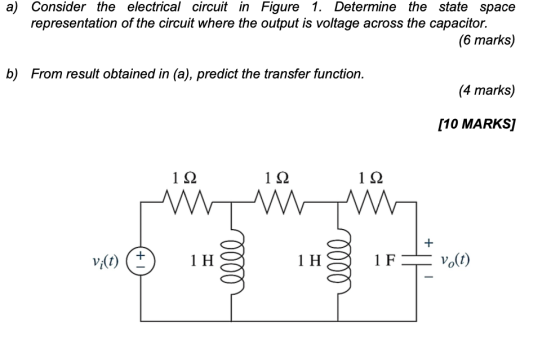

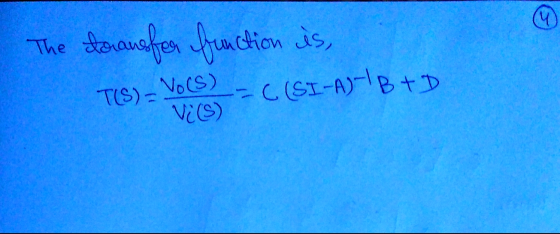

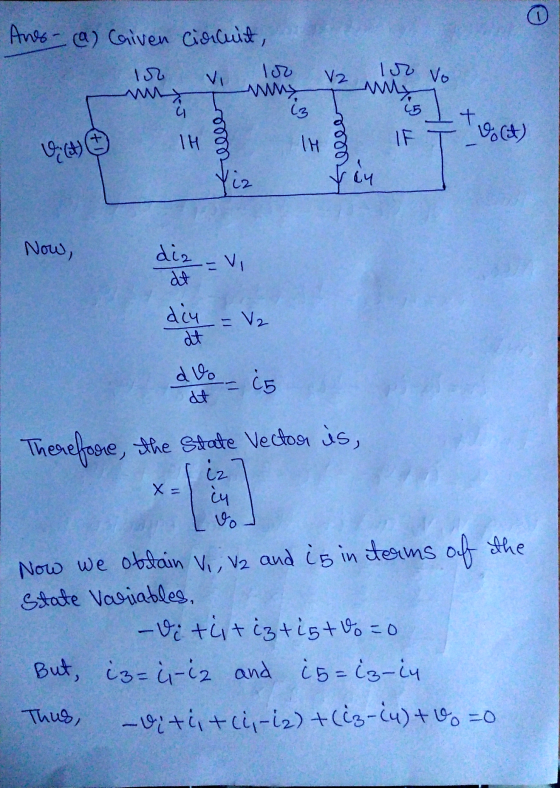

a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) [10 MARKS] 1 Ω 192 112 W vi(t) 1 H elle 1 H Illl 1 F volt) Figure 1
question 3
Question 1 a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) [10 MARKS] 192 192 122 w 1H lell 1H llll 1F vo(t) Figure 1
Question 1 a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) [10 MARKS] 192 192 112 M M w + + Vilt) 1 H sooo 1 H nooo 1F vo(t) Figure 1
Question 1 a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) [10 MARKS] 112 192 112 VAD 1 H 1F Figure 1
Question 1 a) Consider the electrical circuit in Figure 1. Determine the state space representation of the circuit where the output is voltage across the capacitor. (6 marks) b) From result obtained in (a), predict the transfer function. (4 marks) [10 MARKS] 192 192 192 m V:(t) 1 H 1F volt) Figure 1
using mesh analysis method
Whe Find the transfer function output for the electrical circuit below input 2H 2221F 0000 222 22 222 v(t) 232 + vo 21 VLt) 1F 2H WE 0000 llll VL(1) (a) (b)
We want to analyze the following electrical circuit R + + C C R y The output is the voltage across the resistor R,. We assign the state variables like this voltage across C xcurrent through L x3 = voltage across C, Then the state vector is x 1) Obtain the state-space representation of the system 2) Determine the observability of the state equation obtained in (1) 3) Let x(0) [x (0)x,(0) x,(0) =[1 0 o] Derive a control input...
Could someone please write worked solutions? Thanks
R. Figure 1 Consider the filter circuit that is shown in Figure 1 1. Determine the voltage at node a in terms of the passive component variables. (7 marks) 2. Determine the Laplace transfer function H(s) = Vo/Vi. Subsequently, identify the resulting filter type including its order. (9 marks) 3. If R-1k and C-10HF, determine the gain, cut-off frequency, and the quality factor of this filter. (6 marks) 4. If the input signal...
Find the state space representation of the electrical
circuit shown in figure, output is iL, and vL.
M
