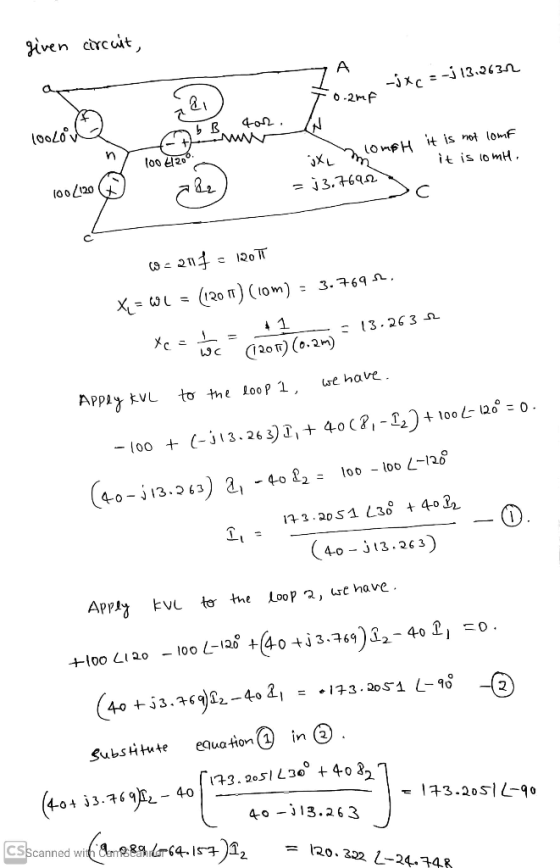

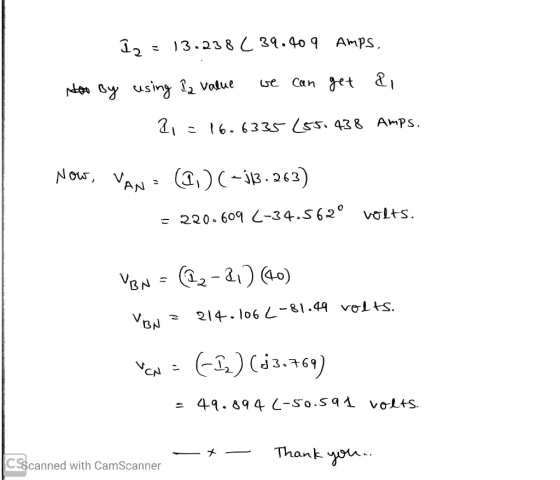

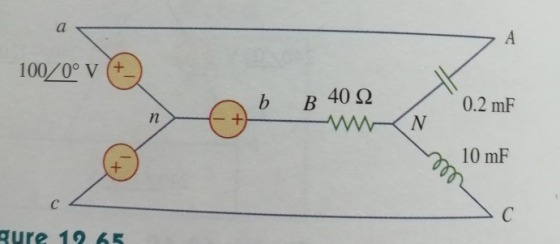

The source is balanced and exhibits a positive phase sequence if f=60 Hz find VAN VBN and VCN
Homework Answers
Add Answer to:
The source is balanced and exhibits a positive phase
sequence if f=60 Hz find VAN VBN...
Van, Vbn, Vcn are the balanced three-phase voltages with positive sequence. (a) Plot the waveforms Vo,...
Van, Vbn, Vcn are the balanced three-phase voltages with positive sequence. (a) Plot the waveforms Vo, Vla, VDi with van- (b) Find the average output Vo + 1 La 4 I,- 20A 6추D 2
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
In a balanced three-phase Y-A system, the source has an ABC phase sequence and Van=114/_43° V...
In a balanced three-phase Y-A system, the source has an ABC phase sequence and Van=114/_43° V rms. The line and load impedances are Z1 = R1 + jX1 = 2 + j1.82 and Zab = Rab + jXab = 54 + j3922, respective А RijX w IAa a VAN n Lab Ica јХca, Rab VON N VBN Rca jXab C B Roc jXbo с b RjX2 Wm Wm R3 jX3 Find the magnitude of the delta current Iab, Ibc, or...
In the Y-Δ system shown in the given figure, the source is a positive sequence with...
In the Y-Δ system shown in the given figure, the source is a
positive sequence with Van = 490∠∠0° V and
phase impedance Zp = 2 – j3 Ω. If
wattmeters W1 and W2 are
properly connected respectively between lines a and
b and lines b and c to measure the power
absorbed by the delta-connected load in the given figure, predict
their readings.
V an а Zp Vbn b + п Zp сп с + The reading of each...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltag...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is...
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is 60Hertz. The source is connected to a A-connected 3-phase balanced load of 100+j750 per phase. The lines are considered perfect. The phase sequence of the source is abc Use the a-phase sequence as a reference. a) Draw the 3-phase circuit b) Give Van, Voor and V, Derive VAB and derive Vec,and VcA c) Calculate lAB and derive Isc and IcA d) Calculate the total...
Q1.A balanced 3-Phase Y-connected generator with positive sequence has an impedance of 0.2 + 0.5j ф...
Q1.A balanced 3-Phase Y-connected generator with positive sequence has an impedance of 0.2 + 0.5j ф and an intemal voltage of 120 V/d. The generator feeds a balanced 3- Phase Y-connected load having an impedance of 39 + 28j Ωφ. The impedance of the line connecting the generator to the load is 0.8 + 1Sj Ωφ. The a-phase internal voltage of the generator is specified as the reference phasor a) Construct the a-phase equivalent circuit of the system b) Calculate...
Van, Vbn, Vcn are the balanced three-phase voltages with positive sequence. (a) Plot the waveforms Vo, Vla, VDi with van- (b) Find the average output Vo + 1 La 4 I,- 20A 6추D 2
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
In a balanced three-phase Y-A system, the source has an ABC phase sequence and Van=114/_43° V rms. The line and load impedances are Z1 = R1 + jX1 = 2 + j1.82 and Zab = Rab + jXab = 54 + j3922, respective А RijX w IAa a VAN n Lab Ica јХca, Rab VON N VBN Rca jXab C B Roc jXbo с b RjX2 Wm Wm R3 jX3 Find the magnitude of the delta current Iab, Ibc, or...
In the Y-Δ system shown in the given figure, the source is a
positive sequence with Van = 490∠∠0° V and
phase impedance Zp = 2 – j3 Ω. If
wattmeters W1 and W2 are
properly connected respectively between lines a and
b and lines b and c to measure the power
absorbed by the delta-connected load in the given figure, predict
their readings.
V an а Zp Vbn b + п Zp сп с + The reading of each...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is 60Hertz. The source is connected to a A-connected 3-phase balanced load of 100+j750 per phase. The lines are considered perfect. The phase sequence of the source is abc Use the a-phase sequence as a reference. a) Draw the 3-phase circuit b) Give Van, Voor and V, Derive VAB and derive Vec,and VcA c) Calculate lAB and derive Isc and IcA d) Calculate the total...
Q1.A balanced 3-Phase Y-connected generator with positive sequence has an impedance of 0.2 + 0.5j ф and an intemal voltage of 120 V/d. The generator feeds a balanced 3- Phase Y-connected load having an impedance of 39 + 28j Ωφ. The impedance of the line connecting the generator to the load is 0.8 + 1Sj Ωφ. The a-phase internal voltage of the generator is specified as the reference phasor a) Construct the a-phase equivalent circuit of the system b) Calculate...
