Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C =...

Question

Question

Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C = 5 mF. The voltage source has a voltage amplitude of 26.0 V

science physics

Answer 1

Answer #1

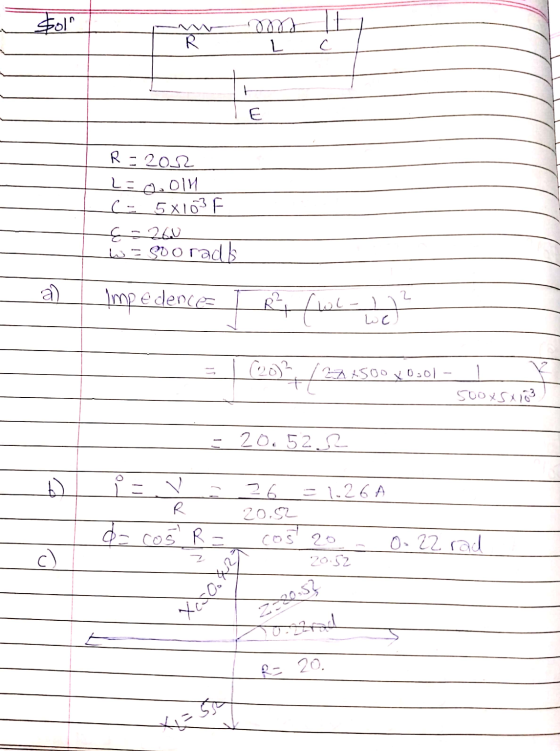

$ol M R L C E R = 202 L: 0.01 (= 5X103F E-260 Soo rad b. 2 Impedences R? اتيل انا (20) 124500X0301 500x5X103 - 20.522 b) R d

Answer 2

Similar Homework Help Questions

Consider an RLC series circuit with R = 600 Ω, L = 3 H, C =...

Consider an RLC series circuit with R = 600 Ω, L = 3 H, C = 4μF, generator voltage V = 20 v, frequency= 60 hz. Find a) the inductive impedance XL, b) capacitive impedance Xc , c) Total impedance Z, d) Line current I , e) Voltage drops VR , VL, ,Vc f) combination voltage VRL , and VLc , g) phase angle φ , h) resonant frequency f0 , i) Power dissipated by circuit.
That's all I was given. 6) A series LRC circuit has resistance 400 Ω, inductance 0.900...

That's all I was given. 6) A series LRC circuit has resistance 400 Ω, inductance 0.900 H, and capacitance 2.50 μF The source voltage has a constant amplitude 90.0 V, but an adjustable frequency a) Determine the impedance of the circuit if the source has angular frequency (i) 1000 rad/s, (i) 750 rad/s, and (ii) 500 rad/s. b) Determine the resonance angular frequency c) Describe (qualitatively) the change in the current amplitude as the 2 angular frequency is slowly adjusted...
1. A series RLC circuit has R = 1009, L = 15 mH and C =...

1. A series RLC circuit has R = 1009, L = 15 mH and C = 10 uF. It is connected to an AC course with f= 60.0Hz and Vmax = 110 V. A. Calculate the phase angle between the current and the voltage. B. What is the maximum value of the current at this frequency? C. What source frequency in Hz) is needed for the series RLC circuit to be at resonance?

An inductor (L = 365 mH), a capacitor (C = 4.43 uF), and a resistor (R...

An inductor (L = 365 mH), a capacitor (C = 4.43 uF), and a resistor (R = 6052) are connected in series. A 50.0 Hz AC source produces a peak current of 250 mA in the circuit. (a) Calculate the required peak voltage AV max (b) Determine the phase angle by which the current leads or lags the applied voltage. Step 1 The total impedance depends on the frequency and the resistance of the circuit. The voltage amplitude is in...
1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1...

1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1 µF is connected to an alternative voltage with maximum voltage of Vm = 24 V and frequency of 300.0 Hz. Find the following: Show the formula for each question. Show your Calculations – put result in a box with its unit. Please write your answer under each question a)Find the value of angular frequency ω . b) Inductive Reactance ( XL) c)Capacitive Reactance (...
In an oscillating RLC circuit, R = 3.8 , L = 7.0 mh, and C =...

In an oscillating RLC circuit, R = 3.8 , L = 7.0 mh, and C = 700 pF. What is the angular frequency of the oscillations in rad/s)? 451 x rad/s

In an oscillating RLC circuit, R = 2.2 Ω, L = 2.0 mH, and C =...

In an oscillating RLC circuit, R = 2.2 Ω, L = 2.0 mH, and C = 200 μF. What is the angular frequency of the oscillations (in rad/s)? X rad/s
(45 pts.) For the circuit shown, R = 50.0 Ω, L 95.0 mH, and C-70.0 pC...

(45 pts.) For the circuit shown, R = 50.0 Ω, L 95.0 mH, and C-70.0 pC The power source has 5, 65.0 V rms and a frequency of 40.0 Hz. a. What is the value of XL? b. What is the value of Xc? c. What is the value of Z? d. What is the rms current? e. What is the rms voltage across the resistor? f. What is the rms voltage across the inductor? g. What is the rms...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...

1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...

A series RLC circuit that has an inductance of 6 mH, a capacitance of 3 μF,...

A series RLC circuit that has an inductance of 6 mH, a capacitance of 3 μF, and a resistance of 7.2 is driven by an ideal ac voltage source that has a peak emf of 110 V (a) Find the resonant frequency 1.19 rad/s (b) Find the root-means-square current at resonance When the frequency is 8000 rad/s, find the following values. (c) the capacitive and inductive reactances (d) the impedance (e) the root-mean square current. (f) the phase angle δ...
