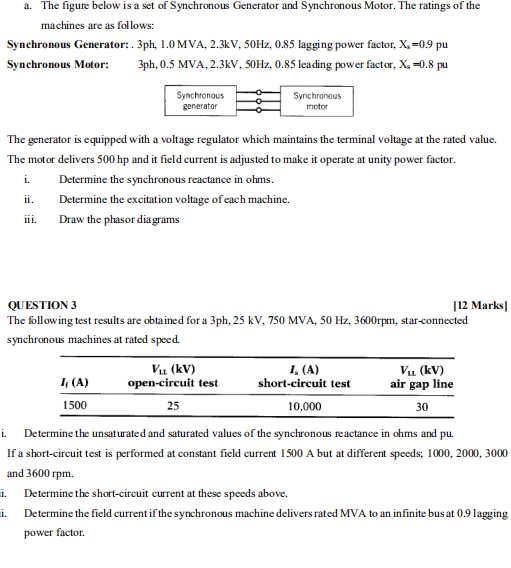

a. The figure below is a set of Synchronous Generator and Synchronous Motor. The ratings of...
A 12 kV, 300 MVA synchronous generator is tested at a field current of 200 A....
A 12 kV, 300 MVA synchronous generator is tested at a field current of 200 A. The open-circuit voltage was found to be 10 kV and the short-circuit current was 7.5 kA. The stator resistance was measured at 0.1 ohms per phase. i) Find the value of the synchronous reactance in per-unit. [ 2 marks ] ii) The synchronous generator is delivering half rated output at a terminal voltage of 5% below rated voltage and a power factor of 0.7...
Problem 2 (50 points): The synchronous generator shown in the figure below is operated at its rat...
Problem 2 (50 points): The synchronous generator shown in the figure below is operated at its rated apparent power (100 MVA), 0.95 pf. lagging, and 5% above rated voltage. Determine the subtransient fault current if a three phase short circuit fault occurs at the terminal of the motor (Bus 2) T1 2 100 MVA 100 MVA 13.8 kV 13.8 kV Δ/138 kVY X" = 0.15 X = 0.10 100 MVA 138 kV Y/13.8 kV Δ X0.10 100 MVA 13.8 kV...
Problem #2: A three-phase synchronous generator is rated 16 kV and 200 MVA, has negligible losses...
Problem #2: A three-phase synchronous generator is rated 16 kV and 200 MVA, has negligible losses and has reactance of 1.65 pu. The generator is operated on an infinite bus of 15 kV voltage and delivers 100 MVA at 0.8 Power Factor, lagging. a)Determine the internal voltage (E_i), the power angle (5), and the line current of the machine. b)If the field current of the machine is reduced by 10%, while the mechanical power input to the machine is maintained...
The following readings were taken during an open-circuit test and short-circuit test on a three-phase, 10...
The following readings were taken during an open-circuit test and short-circuit test on a three-phase, 10 MVA, 13.8 kV, 50 Hz synchronous generator driven at rated speed. Open Circuit Test Field Current 150 A 180 A 200 A 250 A 300 A 350 A Line voltage 11.2 kV 12.0 kV 12.5 kV 13.5 kV 14.3 kV 14.8 kV Short Circuit Test Field Current 150 A 180 A Short Circuit Current 400 A 480 A a) Plot the open-circuit and short-circuit...
A 3φ, 14 kV, 10 MVA, 60 Hz, 2-pole. 0.85 PF lagging, wye-connected, synchronous generator has...
A 3φ, 14 kV, 10 MVA, 60 Hz, 2-pole. 0.85 PF lagging, wye-connected, synchronous generator has X-20 Ω per phase and Ra 2 Ω per phase. The generator is connected to an infinite bus (a) (i) Determine the excitation voltage at the rated condition (ii) Draw the phasor diagram for the condition (b) Determine the torque angle at the rated condition (c) If the field current is kept constant, determine the maximum power the generator can supply (d) (i) For...
QUESTION 5 A 3-phase, 22 kV (phase), 500 MVA star-connected synchronous generator has a per phase...
QUESTION 5 A 3-phase, 22 kV (phase), 500 MVA star-connected synchronous generator has a per phase reactance Xg of 1.5 pu and supplies 0.8 pu per phase real power (P) at the rated voltage, with a lagging power factor of 0.6 to the load. Find the actual excitation voltage Vo in kV (line value). 96.392
Please show all the clearly step A 500 MVA, 24 kV, 60 Hz three-phase synchronous generator...
Please show all the clearly step
A 500 MVA, 24 kV, 60 Hz three-phase synchronous generator is operating at rated voltage and frequency with a terminal power factor of 0.8 lagging. The synchronous reactance X 0.8. Stator coil resistance is negligible. The internally generated voltage E,-18 kv a) Draw the per phase equivalent circuit. b) Determine the torque (power) angle 5, c) the total output power, d) the line current.
A 75 MVA, 25 Kv, three-phase, 60 Hz synchronous generator has a synchronous reactance of X=...
A 75 MVA, 25
Kv, three-phase, 60 Hz synchronous generator
has a synchronous reactance of X= 9
Ω per phase and a negligible resistance.
The generator is delivrimg rated power at a
0.8 power factor lagging at the rated
terminal voltage to an infinitie bus, as shown in the following
figure 1.
Figure 1.The synchronous generator connected to infinite bus
in single phase.
1) The excitation voltage is E = 26.87 KV,
The generator delivring 60 MW. Compute the powe...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2 mechanical. The synchronous reactance of each machine is 10 n/phase and the common busbar voltage is 66kV. Calculs the s cho nisimlengud AN 2 A synchronous generator has a synchronous impedance of 2p and a resist ance of 0.01 p.u. It is connected to an infinite busbar of voltage 1 pu. through a transformer of reactance 01 pou. If the generated (no-load) emfis 1.1...
A 60-MVA, 69.3-kV, three-phase synchronous generator has a synchronous reactance of 15 Ω/phase and negligible armature...
A 60-MVA, 69.3-kV, three-phase synchronous generator has a synchronous reactance of 15 Ω/phase and negligible armature resistance. -a. The generator is delivering rated power at 0.8 power factor lagging at the rated terminal voltage to an infinite bus bar. Determine the magnitude of the generated emfper phase and the power angle δ. -b. If the generated emfis 36 kV per phase, what is the maximum three-phase power that the generator can deliver before losing its synchronism? Winter
Problem 2 (50 points): The synchronous generator shown in the figure below is operated at its rated apparent power (100 MVA), 0.95 pf. lagging, and 5% above rated voltage. Determine the subtransient fault current if a three phase short circuit fault occurs at the terminal of the motor (Bus 2) T1 2 100 MVA 100 MVA 13.8 kV 13.8 kV Δ/138 kVY X" = 0.15 X = 0.10 100 MVA 138 kV Y/13.8 kV Δ X0.10 100 MVA 13.8 kV...
Problem #2: A three-phase synchronous generator is rated 16 kV and 200 MVA, has negligible losses and has reactance of 1.65 pu. The generator is operated on an infinite bus of 15 kV voltage and delivers 100 MVA at 0.8 Power Factor, lagging. a)Determine the internal voltage (E_i), the power angle (5), and the line current of the machine. b)If the field current of the machine is reduced by 10%, while the mechanical power input to the machine is maintained...
A 3φ, 14 kV, 10 MVA, 60 Hz, 2-pole. 0.85 PF lagging, wye-connected, synchronous generator has X-20 Ω per phase and Ra 2 Ω per phase. The generator is connected to an infinite bus (a) (i) Determine the excitation voltage at the rated condition (ii) Draw the phasor diagram for the condition (b) Determine the torque angle at the rated condition (c) If the field current is kept constant, determine the maximum power the generator can supply (d) (i) For...
QUESTION 5 A 3-phase, 22 kV (phase), 500 MVA star-connected synchronous generator has a per phase reactance Xg of 1.5 pu and supplies 0.8 pu per phase real power (P) at the rated voltage, with a lagging power factor of 0.6 to the load. Find the actual excitation voltage Vo in kV (line value). 96.392
Please show all the clearly step
A 500 MVA, 24 kV, 60 Hz three-phase synchronous generator is operating at rated voltage and frequency with a terminal power factor of 0.8 lagging. The synchronous reactance X 0.8. Stator coil resistance is negligible. The internally generated voltage E,-18 kv a) Draw the per phase equivalent circuit. b) Determine the torque (power) angle 5, c) the total output power, d) the line current.
A 75 MVA, 25
Kv, three-phase, 60 Hz synchronous generator
has a synchronous reactance of X= 9
Ω per phase and a negligible resistance.
The generator is delivrimg rated power at a
0.8 power factor lagging at the rated
terminal voltage to an infinitie bus, as shown in the following
figure 1.
Figure 1.The synchronous generator connected to infinite bus
in single phase.
1) The excitation voltage is E = 26.87 KV,
The generator delivring 60 MW. Compute the powe...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2 mechanical. The synchronous reactance of each machine is 10 n/phase and the common busbar voltage is 66kV. Calculs the s cho nisimlengud AN 2 A synchronous generator has a synchronous impedance of 2p and a resist ance of 0.01 p.u. It is connected to an infinite busbar of voltage 1 pu. through a transformer of reactance 01 pou. If the generated (no-load) emfis 1.1...
