A certain network has an input admittance Y(s). The admittance has a pole at s=-5, a...

Question

Question

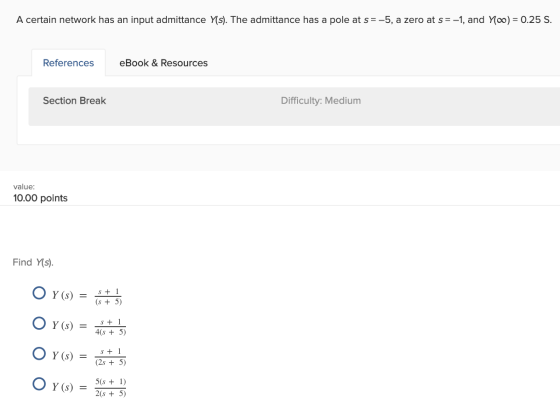

A certain network has an input admittance Y(s). The admittance has a pole at s=-5, a zero at s= -1, and Yoo) = 0.25 S. Refere

engineering Electrical-Engineering

Answer 1

Answer #1

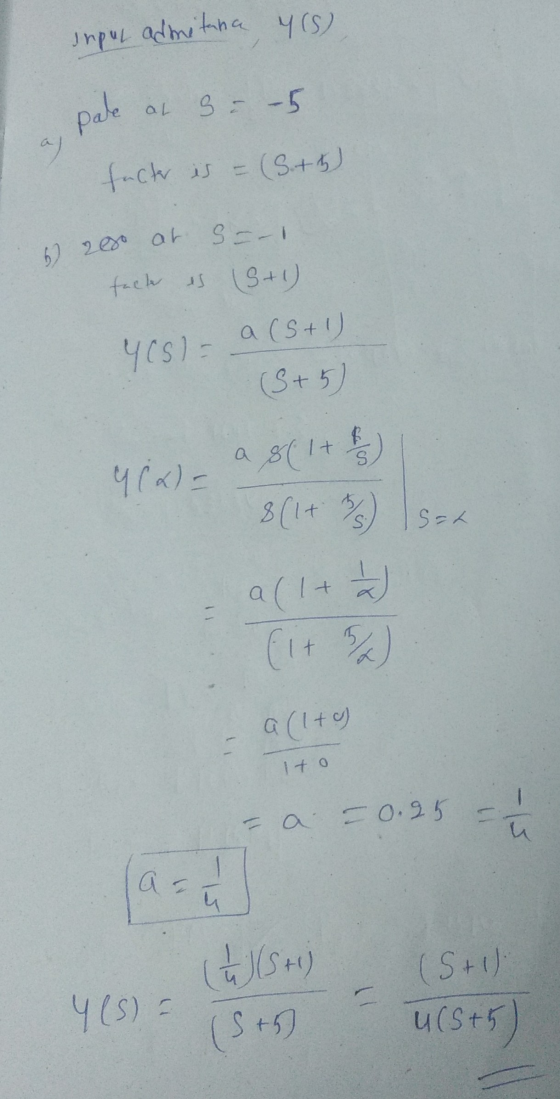

6) 20s at S-– 1. Y(S) Inpul admetana pale at su – 5 a) facter is = (S.+5) fach es S+1) YES) a (5+1) (5+5) $ a 8(1+ 416) 8(1+

Answer 2

Similar Homework Help Questions

A series RLC network has R= 6 k1, L = 40 mH, and C= 1 uF....

A series RLC network has R= 6 k1, L = 40 mH, and C= 1 uF. References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Calculate the impedance at one-fourth of the resonant frequency. The impedance at one-fourth of the resonant frequency is + ke2
Antenna Input (load) A cell phone antenna has an input 500 admittance Yi(0.015j0.015) S that operates...

Antenna Input (load) A cell phone antenna has an input 500 admittance Yi(0.015j0.015) S that operates at a frequency of 1 GHz. It has been proposed that this antenna can be matched using a shunt impedance next to the load followed by a quarter wavelength transformer; as shown in Fig. 3(a) Ys 0.1 Fig. 3. Matching network for cell phone antenna tower antenna a. Compute the required shunt impedance (Y) so that the combined parallel admittance Yi and Ys has...
The circuit shown below has the impedance Z(s) = 800(s +1) (s+ 1 +j50) (s +1...

The circuit shown below has the impedance Z(s) = 800(s +1) (s+ 1 +j50) (s +1 -j50) , S = - jo. R с L Z(s) References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Find the values of R, L, C, and G. The value of R in the circuit is 12. The value of L in the circuit is H. The value of C in the circuit is mF. The value of G in the circuit...

V.(5) V (5 Using the figure given below, realize the transfer function C2 S + 1000...

V.(5) V (5 Using the figure given below, realize the transfer function C2 S + 1000 2(5 + 4000) where G = 8 uF. C R2 Vi VO + w R References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Find the values of R1 and R2. 12. The value of R1 = The value of R2 = Ω.
Consider the liquid shown in figure to be kerosene at 20°C. Given h1 -5 ft and...

Consider the liquid shown in figure to be kerosene at 20°C. Given h1 -5 ft and y 50.3 lbf/ft3 Air p 20 lbfin2 abs Pa 14.7 lbfin2 abs h1 D-1 in References eBook&Resources Section Break Difficulty: Medium value 10.00 points Determine the flow rate from the tank for no losses. Round the final answer to three decimal places ft3/s
References Book & Resources Section Break Difficulty: Medium Required Information x 10.00 points A series RLC...

References Book & Resources Section Break Difficulty: Medium Required Information x 10.00 points A series RLC network has R=40, 240 m and C=1 Calculate the Impedance at resonance The impedance at resonance is Hints References Book & Resources Check my work

flow rate of 82000 cm3/s. For water, take p 998 kg/m3 and u 0.001 kg/m-s. Water...

flow rate of 82000 cm3/s. For water, take p 998 kg/m3 and u 0.001 kg/m-s. Water t 20°C flows in a 30-cm-wide rectangular channel at a depth of 10 cm and eBook & Resources References Section Break Difficulty: Medium value: Required information 10.00 points Estimate the Froude number. Round the final answer two decimal places
The structure shown in the figure has a load P= 280 N acting on it. Neglect...

The structure shown in the figure has a load P= 280 N acting on it. Neglect friction and the radius of the pulley. 150 mm -200 mm SO mm 80 mm References eBook & Resources Section Break Difficulty: Medium 10.00 points Determine the reaction at C. (Round the final answer to two decimal places.) The reaction at Cis C N C
Consider the given beam and loading 4 kips/ft В A С D -5 ft -- 2...

Consider the given beam and loading 4 kips/ft В A С D -5 ft -- 2 ft 8 kips 2 ft $ kips References eBook & Resources Difficulty: Medium Section Break Note: This question will not be automatically graded. It will be sent to your instructor for review 12. value 10.00 points Draw the shear and bending-moment diagrams for the beam and loading shown.

A transfer function is given by H(s) = 40s (s + 10) (s +20) (s +40)...

A transfer function is given by H(s) = 40s (s + 10) (s +20) (s +40) where s= jw. References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Identify the gain HdB. HdB = 20log oljwl – 2010g10/1 + jw/101 – 2010g10/1 + jw/201 – 2010g1011 + jw/40|| HdB = 2010g1|0.0051 + 20log10jwl – 2010g1011 + jw/101 – 2010910/1 + jw/201 – 2010g10|1 + jw/401 HdB = 201091010.0051 – 2010g1oljwl – 2010g1011 + jw/101 – 2010g1011 + jw/201...
