Homework Answers
Add Answer to:

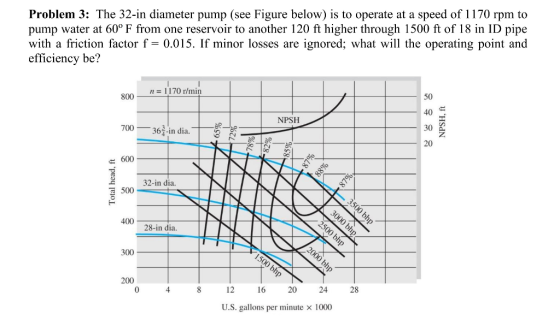

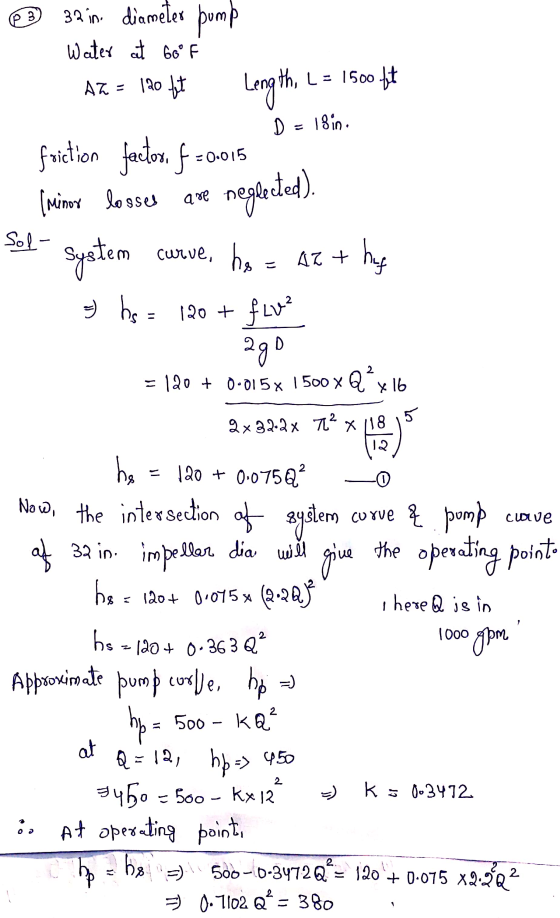

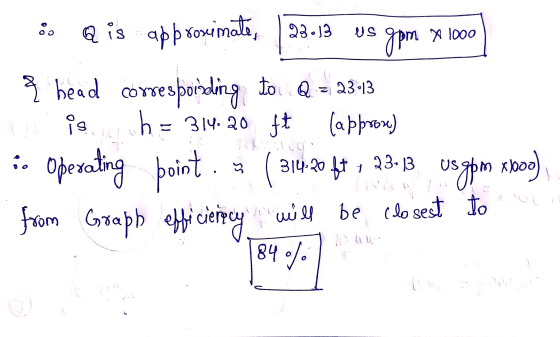

Problem 3: The 32-in diameter pump (see Figure below) is to operate at a speed of...
