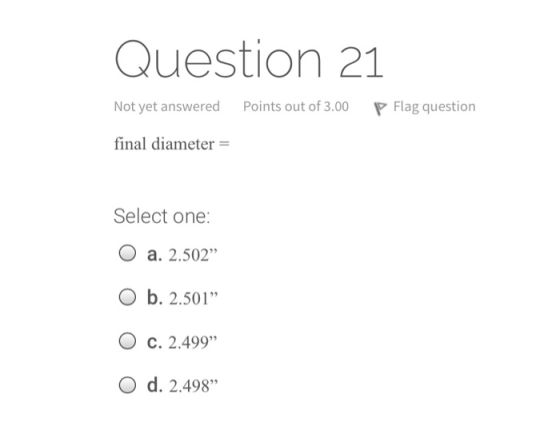

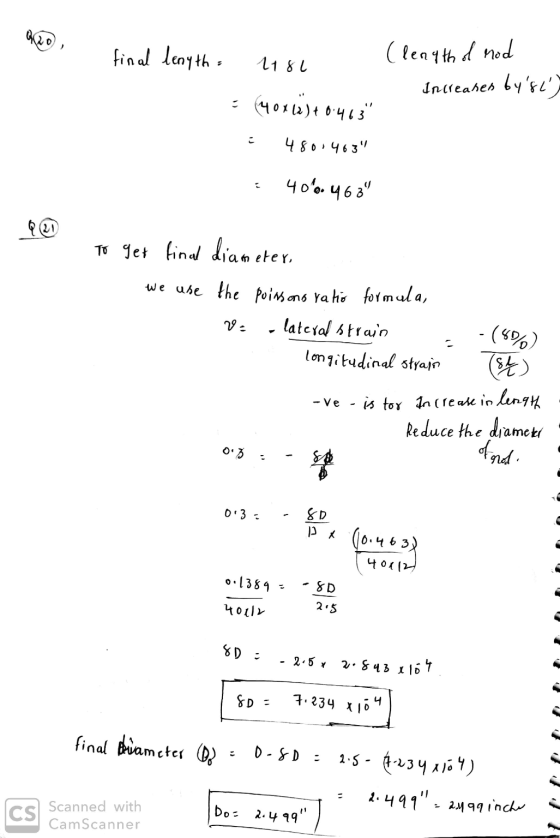

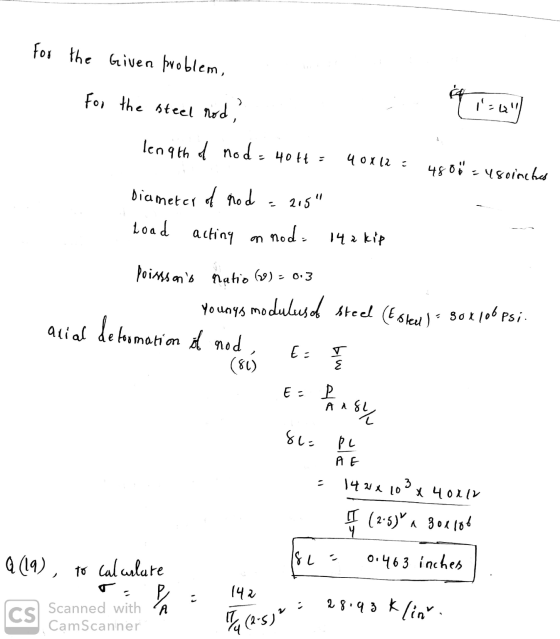

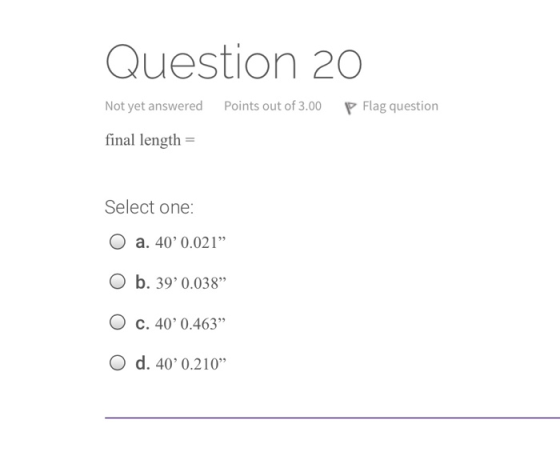

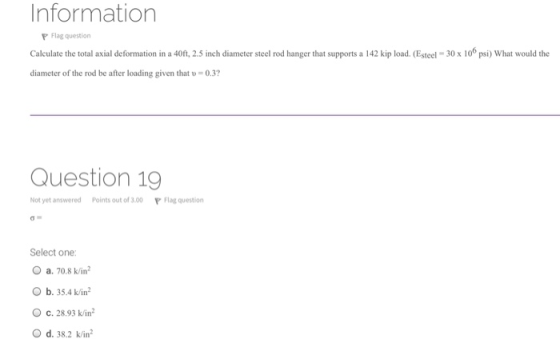

Information P Flag question Calculate the total axial deformation in a 40ft, 2.5 inch diameter steel...
Information P Flag question A Steel rod of • Length = 16 ft • Diameter =...
Information P Flag question A Steel rod of • Length = 16 ft • Diameter = 1.5 inches is subjected to a torque of 600 lb-ft. The shear modulus of the material is 11,200 ksi. What is the angle of rotation of the cross-section at one end in relation to the other end? Question 3 Angle of Rotation (in degrees) = Not yet answered Points out of 1.00 Answer: P Flag question
Information P Flag question An 11 1/2 inch wide plank is cut in such a way...
Information P Flag question An 11 1/2 inch wide plank is cut in such a way that the width is in the tangential direction of the annual rings. Compute the change in width (distance and shrinkage or expansion) as the moisture content changes from 11% to 31%. (The fiber saturation point is 28% and shrinkage is 7.5% in drying from the FSP to oven dry in the tangential direction. Question 28 Not yet answered Points out of 3.00 P Flag...
Information P Flag question Use the stress-strain diagram below to answer questions 10-12. A B a...
Information P Flag question Use the stress-strain diagram below to answer questions 10-12. A B a E Question 10 Not yet answered Points out of 3.00 P Flag question Which material is more brittle? Select one: O a. A O b. B Question 11 Not yet answered Points out of 3.00 P Flag question Which material is stronger? Select one: O a. A O b. B Question 12 Not yet answered Points out of 3.00 P Flag question Which material...
Information P Flag question Questions (24-27) What are the allowable stress values for the following lumber...
Information P Flag question Questions (24-27) What are the allowable stress values for the following lumber sections? (Based on Douglas Fir-Larch - Textbook) Question 24 Not yet answered Points out of 3.00 Potion 2x6 No. 1 - Select one O a. 1200 lb/in? O b. 1300 lb/in O C. 170 bin O d. 877 Ibin Question 25 Not yet answered Points out of 3.00 P Flag question 2x6 No. 1 Ft= Select one: O a. 1200 lb/in? O b. 742...
Information P Flag question A W8x35 is used as a column. The weak axis is braced...
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 Not yet answered Points out of 1.00 Flag question rx = Select one: O a. 5.51 in....
Information P Flag question A W8x35 is used as a column. The weak axis is braced...
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling Total Length - 50ft. Question 24 Not yet answered Points out of 1,00 P Flag question X = Select one: O a. 5.51...
Question 5 Not yet answered Points out of 3.00 P Flag question Soundness of an aggregate...
Question 5 Not yet answered Points out of 3.00 P Flag question Soundness of an aggregate indicates its resistance to weathering. Select one: True False Question 6 Not yet answered Points out of 3.00 P Flag question RAP is an acronym for Residuum Asphaltic Pavement Select one: True O False
also find ry Information P Flag question A W8x35 is used as a column. The weak...
also find ry
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 P Flag question Not yet answered Points out of 1.00 x = Select one:...
Question 7 Not yet answered Points out of 3.00 P Flag question ESAL an acronym for...
Question 7 Not yet answered Points out of 3.00 P Flag question ESAL an acronym for Equivalent Single Axle Load Select one: True False Question 8 Not yet answered Points out of 3.00 p Flag question A pycnometer measures grain size. Select one: True False
help Not yet answered Marked out of 3.00 p Flag question What is the relationship between...
help
Not yet answered Marked out of 3.00 p Flag question What is the relationship between the two molecules? CI CI Select one: O a. conformations o b. diastereomers O c. constitutional isomers d. enantiomers Question 40 Not yet answered Marked out of 3.00 Hag question What is the major product of the reaction below? Br2 hv
Information P Flag question A Steel rod of • Length = 16 ft • Diameter = 1.5 inches is subjected to a torque of 600 lb-ft. The shear modulus of the material is 11,200 ksi. What is the angle of rotation of the cross-section at one end in relation to the other end? Question 3 Angle of Rotation (in degrees) = Not yet answered Points out of 1.00 Answer: P Flag question
Information P Flag question An 11 1/2 inch wide plank is cut in such a way that the width is in the tangential direction of the annual rings. Compute the change in width (distance and shrinkage or expansion) as the moisture content changes from 11% to 31%. (The fiber saturation point is 28% and shrinkage is 7.5% in drying from the FSP to oven dry in the tangential direction. Question 28 Not yet answered Points out of 3.00 P Flag...
Information P Flag question Use the stress-strain diagram below to answer questions 10-12. A B a E Question 10 Not yet answered Points out of 3.00 P Flag question Which material is more brittle? Select one: O a. A O b. B Question 11 Not yet answered Points out of 3.00 P Flag question Which material is stronger? Select one: O a. A O b. B Question 12 Not yet answered Points out of 3.00 P Flag question Which material...
Information P Flag question Questions (24-27) What are the allowable stress values for the following lumber sections? (Based on Douglas Fir-Larch - Textbook) Question 24 Not yet answered Points out of 3.00 Potion 2x6 No. 1 - Select one O a. 1200 lb/in? O b. 1300 lb/in O C. 170 bin O d. 877 Ibin Question 25 Not yet answered Points out of 3.00 P Flag question 2x6 No. 1 Ft= Select one: O a. 1200 lb/in? O b. 742...
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 Not yet answered Points out of 1.00 Flag question rx = Select one: O a. 5.51 in....
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling Total Length - 50ft. Question 24 Not yet answered Points out of 1,00 P Flag question X = Select one: O a. 5.51...
Question 5 Not yet answered Points out of 3.00 P Flag question Soundness of an aggregate indicates its resistance to weathering. Select one: True False Question 6 Not yet answered Points out of 3.00 P Flag question RAP is an acronym for Residuum Asphaltic Pavement Select one: True O False
also find ry
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 P Flag question Not yet answered Points out of 1.00 x = Select one:...
Question 7 Not yet answered Points out of 3.00 P Flag question ESAL an acronym for Equivalent Single Axle Load Select one: True False Question 8 Not yet answered Points out of 3.00 p Flag question A pycnometer measures grain size. Select one: True False
help
Not yet answered Marked out of 3.00 p Flag question What is the relationship between the two molecules? CI CI Select one: O a. conformations o b. diastereomers O c. constitutional isomers d. enantiomers Question 40 Not yet answered Marked out of 3.00 Hag question What is the major product of the reaction below? Br2 hv
