Homework Answers
Add Answer to:
Answer and progress.

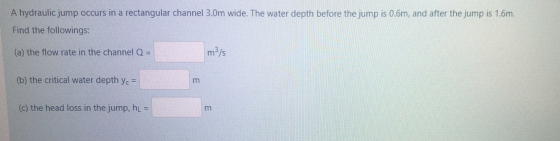

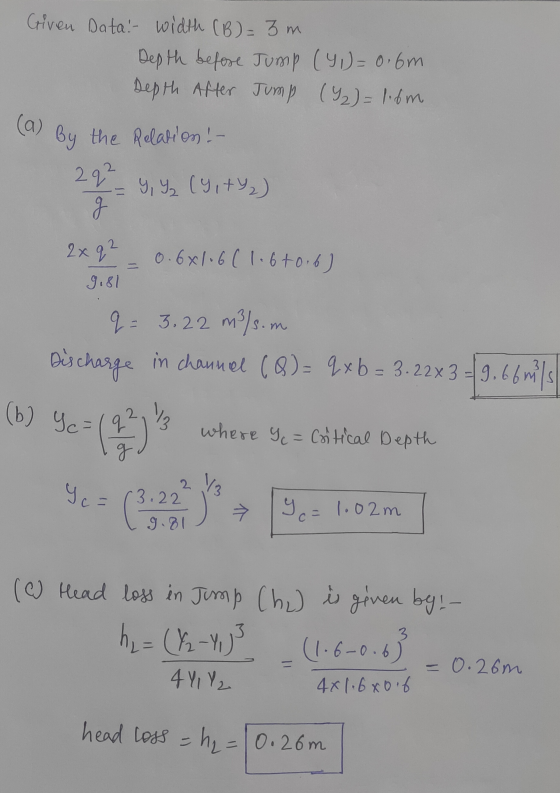

A hydraulic jump occurs in a rectangular channel 3.0m wide. The water depth...
A hydraulic jump is formed in a 5-m wide rectangular channel a short distance downstream of...
A hydraulic jump is formed in a 5-m wide rectangular channel a short distance downstream of a control gate. If the flow depth just downstream of the gate is 2 m and the outlet discharge is 150 m^3/s determine (a) the flow depth downstream of the jump and (b) the head loss in the jump.
Water flows through the 4-ft wide rectangular channel at a rate 30 ft3/s. The depth of...
Water flows through the 4-ft wide rectangular channel at a rate 30 ft3/s. The depth of water upstream the potential hydraulic jump is 1 ft. Show a labelled illustration of the channel based on the information provided. Determine whether the hydraulic jump will form or occur. If the jump occurs, evaluate its depth, y2 and its corresponding Froude number. Evaluate the energy head loss in the jump and relative to initial energy head, do you think this head loss is...
solve all 4 parts please Water discharging into a 12-m-wide rectangular horizontal channel from a sluice...
solve all 4 parts please
Water discharging into a 12-m-wide rectangular horizontal channel from a sluice gate is observed to have undergone a hydraulic jump. The flow depth and velocity before the jump are 0.9 m and 9 m/s, respectively. Determine (i) Froude number before the hydraulic jump. Is it subcritical, critical, or supercritical flow? (4 points) (ii) the flow depth and the Froude number after the jump. Is it subcritical, critical, or supercritical flow? (9 points) (iii) the head...
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec. Manning's n = 0.015 and the bottom slope = 0.002. Calculate/answer the following: a. the uniform (normal) flow depth assuming the channel is wide and shallow. b. the critical flow depth. c. the flow depth upstream of a hydraulic jump with downstream depth = normal depth. d. the type of channel slope at the given normal depth: mild, critical, or steep (select one). f. the basis for your answer in...
Water flows under the partially opened sluice gate, which is in a rectangular channel. If the water has the depth shown, determine if a hydraulic jump forms, and if so, find the depth yc at the downs...
Water flows under the partially opened sluice gate, which is in
a rectangular channel. If the water has the depth shown, determine
if a hydraulic jump forms, and if so, find the depth yc at the
downstream end of the jump.
6 m ус
6 m ус
Supercritical, uniform flow of water occurs in a 5.0 m wide, rectangular, horizontal channel. The depth...
Supercritical, uniform flow of water occurs in a 5.0 m wide, rectangular, horizontal channel. The depth of flow is 1.5 m and the flowrate is 45 cu.m/s. The flow encounters a 0.25 m rise in the channel bottom. What is the new normal depth? Is the flow after the rise subcritical, critical or supercritical? Assume frictionless flow
5. A hydraulic jump occurs in a rectangular channel with the width of 16 m. The...
5. A hydraulic jump occurs in a rectangular channel with the width of 16 m. The flow depth (yı) and velocity (v) at the beginning of the hydraulic jump are 1 m and 10 m/s, respectively. Determine the dissipated energy in the jump. (g= 10 m/s) a) 1.687 (m) b) 2.134 (m) c) 1.258 (m) d) 2.986 (m) e) None of above
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from...
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from a "steep slope" to a 'mild slope", creating a hydraulic jump. The upstream depth of flow is 1.20 m Find the following: (a) the downstream depth of flow, (b) the energy loss in the jump, anid (c) the upstream and downstream velocities 2)
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water...
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water surface profile (dy/dx) as function of Froude number and channel bottom slope in a channel transition assuming that over a short distance Ax, the energy losses can be neglected. b) Using the equation you have obtained, draw the water surface profile if flow is supercritical and if there is a downward step at the channel bed and show your results on the graph of...
Answer and progress. Water flows at 4.3m/s in a rectangular channel of width 3 m and...
Answer and progress.
Water flows at 4.3m/s in a rectangular channel of width 3 m and depth of flow 1m. If the channel width is decreased by 0.75m and the bottom of the channel is raised by 0.25m, Find the followings: The discharge per unit width before the constriction q m3/s/m Discharge per unit width at the constriction q" = m/s/m Water depth of flow in the constriction y2 =
solve all 4 parts please
Water discharging into a 12-m-wide rectangular horizontal channel from a sluice gate is observed to have undergone a hydraulic jump. The flow depth and velocity before the jump are 0.9 m and 9 m/s, respectively. Determine (i) Froude number before the hydraulic jump. Is it subcritical, critical, or supercritical flow? (4 points) (ii) the flow depth and the Froude number after the jump. Is it subcritical, critical, or supercritical flow? (9 points) (iii) the head...
Water flows under the partially opened sluice gate, which is in
a rectangular channel. If the water has the depth shown, determine
if a hydraulic jump forms, and if so, find the depth yc at the
downstream end of the jump.
6 m ус
6 m ус
Supercritical, uniform flow of water occurs in a 5.0 m wide, rectangular, horizontal channel. The depth of flow is 1.5 m and the flowrate is 45 cu.m/s. The flow encounters a 0.25 m rise in the channel bottom. What is the new normal depth? Is the flow after the rise subcritical, critical or supercritical? Assume frictionless flow
5. A hydraulic jump occurs in a rectangular channel with the width of 16 m. The flow depth (yı) and velocity (v) at the beginning of the hydraulic jump are 1 m and 10 m/s, respectively. Determine the dissipated energy in the jump. (g= 10 m/s) a) 1.687 (m) b) 2.134 (m) c) 1.258 (m) d) 2.986 (m) e) None of above
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from a "steep slope" to a 'mild slope", creating a hydraulic jump. The upstream depth of flow is 1.20 m Find the following: (a) the downstream depth of flow, (b) the energy loss in the jump, anid (c) the upstream and downstream velocities 2)
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water surface profile (dy/dx) as function of Froude number and channel bottom slope in a channel transition assuming that over a short distance Ax, the energy losses can be neglected. b) Using the equation you have obtained, draw the water surface profile if flow is supercritical and if there is a downward step at the channel bed and show your results on the graph of...
Answer and progress.
Water flows at 4.3m/s in a rectangular channel of width 3 m and depth of flow 1m. If the channel width is decreased by 0.75m and the bottom of the channel is raised by 0.25m, Find the followings: The discharge per unit width before the constriction q m3/s/m Discharge per unit width at the constriction q" = m/s/m Water depth of flow in the constriction y2 =
