Homework Answers

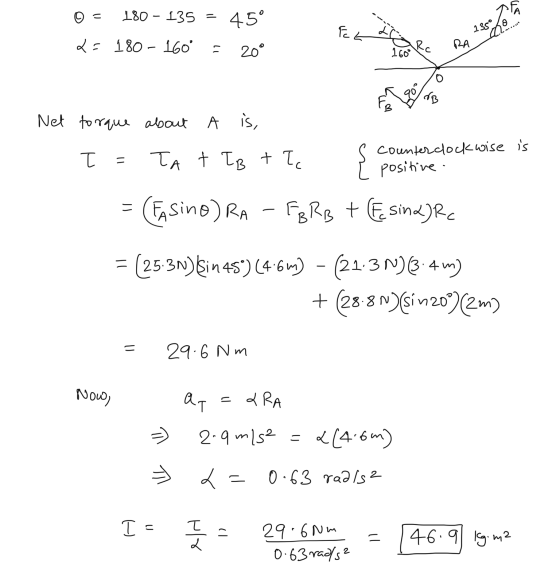

Find the net torque about the given point and use the angular
acceleration to find the moment of inertia as shown below
Add Answer to:

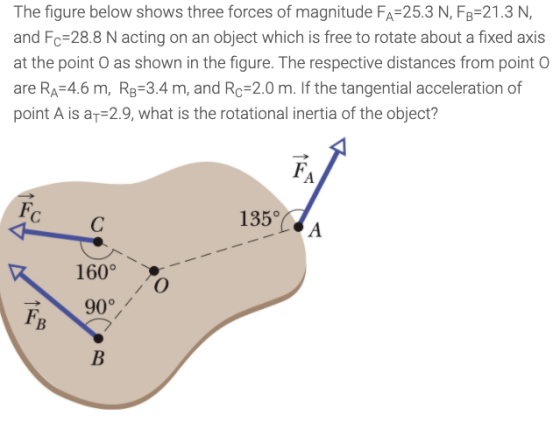

The figure below shows three forces of magnitude FA=25.3 N, F3=21.3 N, and Fc=28.8 N acting...
The figure below shows three forces of magnitude FA=22.1 N, FB=23.1 N, and FC=27.3 N acting...
The figure below shows three forces of magnitude FA=22.1 N,
FB=23.1 N, and FC=27.3 N acting on an object which is free to
rotate about a fixed axis at the point O as shown in the figure.
The respective distances from point O are RA=4.6 m, RB=3.5 m, and
RC=1.0 m. If the tangential acceleration of point A is aT=2.1, what
is the rotational inertia of the object?
The figure below shows three forces of magnitude Fa=22.1 N, FB=23.1 N,...
The figure below shows three forces of magnitude FA=22.1 N, FB=23.1 N, and FC=27.3 N acting...
The figure below shows three forces of magnitude
FA=22.1 N, FB=23.1 N, and FC=27.3
N acting on an object which is free to rotate about a fixed axis at
the point O as shown in the figure. The respective distances from
point O are RA=4.6 m, RB=3.5 m, and
RC=1.0 m. If the tangential acceleration of point A is
aT=2.1, what is the rotational inertia of the
object?
F Fc С 135°C A 160° 90° FB B
Answer saved Points out of 1.00 P Flag question The figure below shows three forces of...
Answer saved Points out of 1.00 P Flag question The figure below shows three forces of magnitude FA=25.3 N, F8-21.3 N, and Fc=28.8 N acting on an object which is free to rotate about a fixed axis at the point as shown in the figure. The respective distances from point o are RA=4.6 m, Rg=3.4 m, and Rc=2.0 m. If the tangential acceleration of point A is a =2.9, what is the rotational inertia of the object? FA FC 135°C2...
