The step-down transformer in a local neighborhood reduces the voltage from a 1,680 V line to...

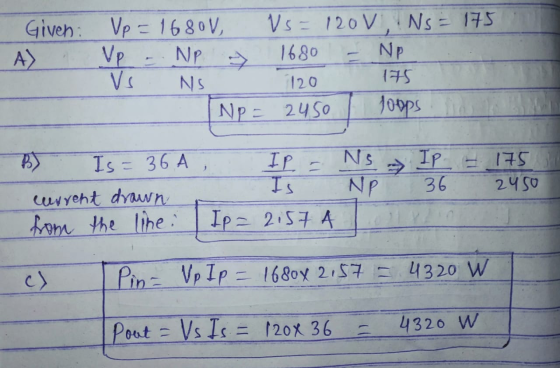

| The step-down transformer in a local neighborhood reduces the
voltage from a
1,680 V line to 120 V. (a) If there are 175 loops on the secondary, how many are on the primary coil? ______ loops (b) What current does the transformer draw from the line if the current in the secondary is 36.0 A? ________ A
_______ W ________ W |
Homework Answers
Add Answer to:
The step-down transformer in a local neighborhood reduces the
voltage from a
1,680 V line to...
Electricity is distributed from electrical substations to neighborhoods at 1.6×104 V . This is a 60Hz...
Electricity is distributed from electrical substations to neighborhoods at 1.6×104 V . This is a 60Hz oscillating (AC) voltage. Neighborhood transformers, seen on utility poles, step this voltage down to the 120V that is delivered to your house. How many turns does the primary coil on the transformer have if the secondary coil has 120 turns? No energy is lost in an ideal transformer, so the output power Pout from the secondary coil equals the input power Pin to the...
0Electricity is distributed from electrical substations to neighborhoods at 1.6×104 V . This is a 60Hzoscillating...
0Electricity is distributed from electrical substations to neighborhoods at 1.6×104 V . This is a 60Hzoscillating (AC) voltage. Neighborhood transformers, seen on utility poles, step this voltage down to the 120V that is delivered to your house. a,) How many turns does the primary coil on the transformer have if the secondary coil has 150 turns? b.) No energy is lost in an ideal transformer, so the output power Pout from the secondary coil equals the input power Pin to...
Electricity is distributed from electrical substations to neighborhoods at 1.3×104 V . This is a 60Hz...
Electricity is distributed from electrical substations to neighborhoods at 1.3×104 V . This is a 60Hz oscillating (AC) voltage. Neighborhood transformers, seen on utility poles, step this voltage down to the 120Vthat is delivered to your house. Express your answer using two significant figures. Q1: How many turns does the primary coil on the transformer have if the secondary coil has 140 turns? Q2: No energy is lost in an ideal transformer, so the output power Pout from the secondary...
Part A: A transformer with turns ratio (primary/secondary) of 18:1 is used to step down the...
Part A: A transformer with turns ratio (primary/secondary) of 18:1 is used to step down the voltage from a 120 V wall socket to be used in a battery charger. What is the voltage supplied to the recharger? Part B: The electric motor in a toy train requires a voltage of 9.0 V. Find the ratio of turns on the primary coil to the turns on the secondary coil in a transformer that will step the 120-V household voltage down...
2. The local transformer shown below provides the last voltage stepdown in a power distribution system....
2. The local transformer shown below provides the last voltage stepdown in a power distribution system. A common sight on utility poles in residential areas, it is a single-phase transformer that typically has a 13.8-LV rms line to neutral on its primary coil, and a center tap secondary coil provides both 120 Vrms and 240 Vrms to service several residences. A typical example of this transformer is shown below. Find the tums ratio necessary to produce the 240-V mms secondary...
A step-down transformer produces a voltage of 6.1 V across the secondary coil when the voltage...
A step-down transformer produces a voltage of 6.1 V across the secondary coil when the voltage across the primary coil is 130 V . What voltage appears across the primary coil of this transformer if 130 V is applied to the secondary coil?
A step-down transformer produces a voltage of 5.4 V across the secondary coil when the voltage...
A step-down transformer produces a voltage of 5.4 V across the secondary coil when the voltage across the primary coil is 140 V. What voltage appears across the primary coil of this transformer if 140 V is applied to the secondary coil?
Electricity is distributed from electrical substations to neighborhoods at 1.4x104 V. This is a 60Hz oscillating...
Electricity is distributed from electrical substations to neighborhoods at 1.4x104 V. This is a 60Hz oscillating (AC) voltage. Neighborhood transformers, seen on utility poles, step this voltage down to the 120V that is delivered to your house. Part A How many turns does the primary coil on the transformer have if the secondary coil has 150 turns? Express your answer using two significant figures. VA - ? neprim turns Submit Request Answer Part B No energy is lost in an...
A 120 V (rms) power line is connected to the primary of a step-down transformer, with...
A 120 V (rms) power line is connected to the primary of a step-down transformer, with a turn ratio of 12 : 1. The transformer’s secondary is connected to a doorbell, which requires 10.2 W of electric power for its operation. What is the peak instantaneous current in the primary?
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 6.00 V. The RMS current delivered to the answering machine is 600 mA. If the primary (input) coil of the transformer has 360 turns, then how many turns are there on the secondary (output) coil? Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Tries 0/20 What...
2. The local transformer shown below provides the last voltage stepdown in a power distribution system. A common sight on utility poles in residential areas, it is a single-phase transformer that typically has a 13.8-LV rms line to neutral on its primary coil, and a center tap secondary coil provides both 120 Vrms and 240 Vrms to service several residences. A typical example of this transformer is shown below. Find the tums ratio necessary to produce the 240-V mms secondary...
Electricity is distributed from electrical substations to neighborhoods at 1.4x104 V. This is a 60Hz oscillating (AC) voltage. Neighborhood transformers, seen on utility poles, step this voltage down to the 120V that is delivered to your house. Part A How many turns does the primary coil on the transformer have if the secondary coil has 150 turns? Express your answer using two significant figures. VA - ? neprim turns Submit Request Answer Part B No energy is lost in an...
