Question

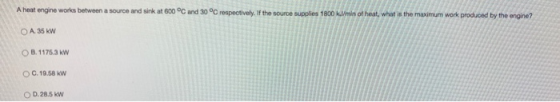

A heat engine works between a source and sink at 600 °C and 30 °C respectively. If the source supplies 1800 kil/min of heat,
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

9 1= 1800 kJ TH 600 c= 873 k min - 30kW 0 - 1800 kJ min W HE we know 1- Ti W y = Q2 TH gi T = 30c W = |- 303 = 303 k 30 873 WI am pretty sure of the answer. Please dear thumpsup for the answer. Thank you

0 0
Add a comment
Know the answer?
Add Answer to:
A heat engine works between a source and sink at 600 °C and 30 °C respectively....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A Carnot heat engine has a source at 1000 °C and sink at 200 °C. If...

    A Carnot heat engine has a source at 1000 °C and sink at 200 °C. If the source supplies 7200 kJ/min of heat, how much heat is rejected to the sink? O A 56.76 kW O B.24 kW O C. 18.85 kW OD. 44.58 kW

  • 2. A heat engine operates between a source at 1250 K and a sink at 300...

    2. A heat engine operates between a source at 1250 K and a sink at 300 K and is supplied with heat at a rate of 800 kJ/min. (a) What is the maximum thermal efficiency this heat engine could have? (b) What power output can one expect from this heat engine? You need to provide more than a numerical answer here!

  • 20.00 points 1 out of 3 attempts Assistance A heat engine operates between a source at...

    20.00 points 1 out of 3 attempts Assistance A heat engine operates between a source at 990°C and a sink at 3°C. If heat is supplied to the heat engine at a steady rate of900 kJ/min, determine the maximum power output of thisCheck My Work heat engine. View Hint View Question Print Question Help Report a Problem kW (Round to two decimal places) max,out

  • Question #1 : A heat engine operates at a steady state between a source at 500...

    Question #1 : A heat engine operates at a steady state between a source at 500 K and a sink at 200 K. Determine the maximum power output of the device if heat of 50,000 KJ/ min is supplied to the heat engine.

  • thermodynamics ne operating between the heat source and heat sink temperatures of 16000K and 4000K. It...

    thermodynamics ne operating between the heat source and heat sink temperatures of 16000K and 4000K. It draws 100 A heat engi MW of energy from the heat source and rejects 60 MW of energy to the heat sink. (a) What is the work output of this heat engine if the thermal efficiency is 40% (b) What is the second law efficiency of this heat engine (c) Is this heat engine compliant with the Second Law of Thermodynamics and the increase...

  • Fall 2019 PChem 2. A certain heat engine operates between 590 °C and 170 °C. (a)...

    Fall 2019 PChem 2. A certain heat engine operates between 590 °C and 170 °C. (a) What is the maximum efficiency of the engine? (b) How much heat is needed from the hot source for each 1.0 kJ of maximum work done? (c) For each 1.0 kJ of heat discharged into the cold sink, how much heat is supplied by the hot source? How much heat is discharged into the cold sink in a reversible process for each 1.0 kJ...

  • Fall 2019 PChem 7. A certain heat engine operates between 590 °C and 170 °C. (a)...

    Fall 2019 PChem 7. A certain heat engine operates between 590 °C and 170 °C. (a) What is the maximum efficiency of the engine? (b) How much heat is needed from the hot source for each 1.0 kJ of maximum work done? (c) For each 1.0 kJ of heat discharged into the cold sink, how much heat is supplied by the hot source? How much heat is discharged into the cold sink in a reversible process for each 1.0 kJ...

  • A Carnot heat engine works between 450oC and 25oC. The work output is used to drive...

    A Carnot heat engine works between 450oC and 25oC. The work output is used to drive a Carnot refrigerator that removes heat from -15oC space at a rate of 400kJ/min and rejects the heat to 25 oC environment. (a) Find the rate of heat supplied to the heat engine (b) Find the total rate of heat rejection to the environment

  • A heat engine operating between 30°C and 450°C has 22 % of maximum possible efficiency. If...

    A heat engine operating between 30°C and 450°C has 22 % of maximum possible efficiency. If its power output is 125 kW, at what rate does the engine absorb heat?

  • A Carnot heat engine works between 450oC and 25oC. The work output is used to drive...

    A Carnot heat engine works between 450oC and 25oC. The work output is used to drive a Carnot refrigerator that removes heat from -15oC space at a rate of 400kJ/min and rejects the heat to 25 oC environment. Find the rate of heat supplied to the heat engine Find the total rate of heat rejection to the environment ii) In the steady state of a steam turbine operation, steam enters a turbine at a rate of 25000 kg/hr at 4MPa...
