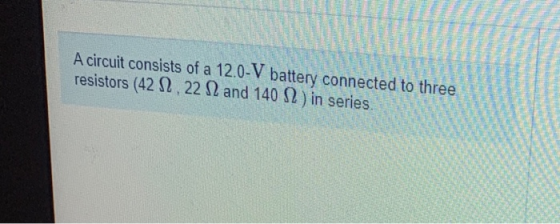

A circuit consists of a 12.0-V battery connected to three resistors (42 82.22 1 and 140 12 ) in series

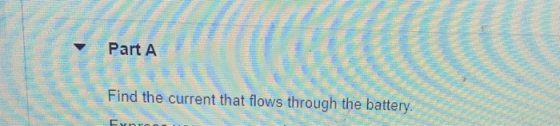

Part A Find the current that flows through the battery. Ford

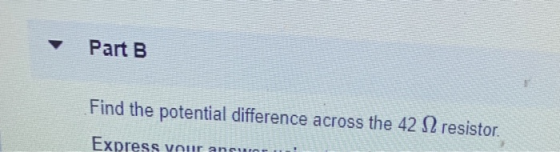

Part B Find the potential difference across the 42 S2 resistor. Express your aneu

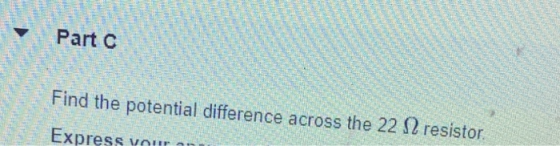

Part 0 Find the potential difference across the 22 12 resistor. Express your A
Part D Find the potential difference across the 140 N resistor. Express your an ein
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

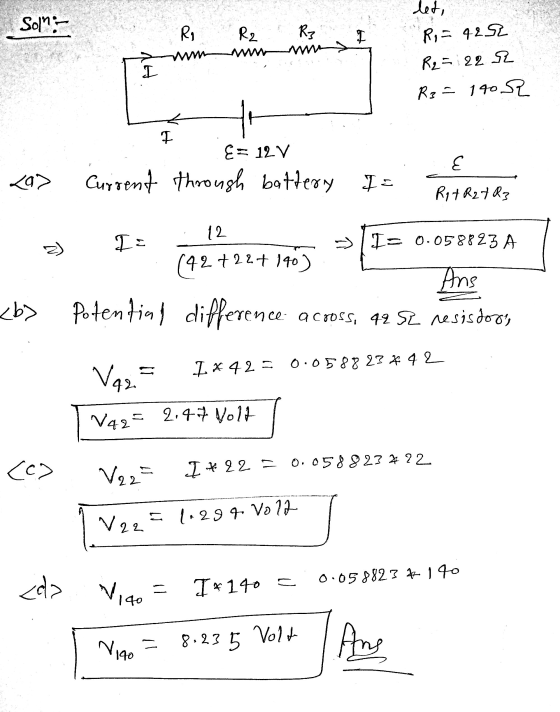

let, Solni. Ri R2 R3 + w we R1 = 4252 R2 = 222 R3= 140 R th I E = 12V Current through battery I = E 297 RitR2 7R3 12 11 I= 0.

0 0
Add a comment
Know the answer?
Add Answer to:
A circuit consists of a 12.0-V battery connected to three resistors (42 82.22 1 and 140...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • - A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16...

    - A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16 Ω and 140 Ω ) in series. - Find the current that flows through the battery in mA. - Find the potential difference across the 44 Ω resistor in V. - Find the potential difference across the 16 Ω resistor in V. - Find the potential difference across the 140 Ω resistor in V.

  • Problem 21.43 A circuit consists of a 12.0-V battery connected to three resistors (43? , 18?...

    Problem 21.43 A circuit consists of a 12.0-V battery connected to three resistors (43? , 18? and 110? ) in series. Part A Find the current that flows through the battery. Express your answer using two significant figures. I =   mA   SubmitMy AnswersGive Up Part B Find the potential difference across the 43? resistor. Express your answer using two significant figures. V1 =   V   SubmitMy AnswersGive Up Part C Find the potential difference across the 18? resistor. Express your answer...

  • A circuit consists of a 9.0 V battery connected to three resistors (42 W, 17 W,...

    A circuit consists of a 9.0 V battery connected to three resistors (42 W, 17 W, and 110 W) in series. (a) Find the current that flows through the battery (b) Find the potential difference across each resistor.

  • A circuit consists of a 12.0-VV battery connected to three resistors (44 ΩΩ , 19 ΩΩ...

    A circuit consists of a 12.0-VV battery connected to three resistors (44 ΩΩ , 19 ΩΩ and 110 ΩΩ ) in series. 1. Find the current that flows through the battery. 2.Find the potential difference across the 44 Ω resistor. 3.Find the potential difference across the 19 Ω resistor. 4.Find the potential difference across the 110 Ω resistor.

  • a circuit consists of a 12.0v battery connected to three resistors (42 ohms, 17 ohms, and...

    a circuit consists of a 12.0v battery connected to three resistors (42 ohms, 17 ohms, and 110 ohms) in series. Find (a) the current that flows through the battery and (b) the potential difference across each resistor.

  • You connect five identical resistors in series to a battery whose EMF is 12.0 V and...

    You connect five identical resistors in series to a battery whose EMF is 12.0 V and whose internal resistance is negligible. You measure the current that the circuit draws from the battery and find 0.981 A. What are the resistance of each resistor and the potential difference across each resistor?

  • Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

    Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...

  • Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a...

    Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?

  • Two resistors are connected in parallel across an ideal 12.0 Volts battery. Resistor A has a...

    Two resistors are connected in parallel across an ideal 12.0 Volts battery. Resistor A has a value of 28 ohm and resistor B carries a current of 1.0169 A. 1.) What is the potential difference across resistor A? 2.) What is the potential difference across resistor B? 3.)What is the current in resistor A? 4.)What is the resistance of B? 5.)What is the total power dissipated in the circuit?

  • PHYSICS II: 4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery;...

    PHYSICS II: 4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery; c) the potential difference across the 10 ohm resistor. 9 p /A we 100C 5) Two resistors with resistances of 12.0 2 and 6.0 are connected in parallel. An 8.0-12 resistor is then connected in series with this parallel combination. An ideal 12.0-V battery is then connected across the series- parallel combination. A) Draw a diagram of this circuit. B) Find...
