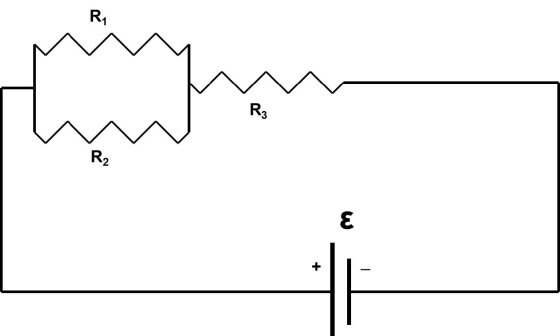

The next two questions pertain to the following circuit, where the voltage ε delivered by the battery is 60V, and R1=20Ω, R2=5Ω, and R3=6Ω.
The current through R3 is
Group of answer choices
A 15A.
B 12A.
C 10A.
D 8A.
E 6 A.
Homework Answers
Add Answer to:
The next two questions pertain to the following circuit, where
the voltage ε delivered by the...
10. The next two questions pertain to the following circuit, where the voltage ε delivered by...
10. The next two questions pertain to the following circuit,
where the voltage ε delivered by the battery is 60V, and
R1=20Ω, R2=5Ω, and R3=6Ω.
The voltage across R2 is
Group of answer choices
60V.
48V.
36V.
24V.
12V.
R1 R3 R2 ६ +
Figure 2 - 12-3A R2= 102 R1=50 R3-152 F Question 11 Questions 11 through 20 pertain...
Figure 2 - 12-3A R2= 102 R1=50 R3-152 F Question 11 Questions 11 through 20 pertain to figure 2 What is the total power of this circuit? 270w 330w 180w 290w Question 12 1 Questions 11 through 20 pertain to figure 2 What is the power for resistor 1? 180w 270w 60w 90w Question 13 Questions 11 through 20 pertain to figure 2 What is the power for resistor 2? 180w 270w 60w D 90w Question 14 1 Questions 11...
This circuit applies to the next several questions. We are at the t→∞ limit, where everything...
This circuit applies to the next several questions. We are at
the t→∞ limit, where everything is constant but time.
Calculate the energy in the capacitor, in μJ.
ℰ = 7 Volts
R1 = 19 Ω
R2 = 37 Ω
R3 = 45 Ω
C = 4.5 μF
Calculate the power through R3 in Watts.
ℰ = 7 Volts
R1 = 13 Ω
R2 = 21 Ω
R3 = 42 Ω
C = 4.1 μF
At a certain time, the...
Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω ,...
Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω ,
and R3 = 90 Ω . When a battery with unknown voltage is hooked up
between points A and B, the current through the resistor R1 is I1
= 0.050 A
What is the voltage across R3? What is the current through the
resistor R3?
What is the total current produced by the battery hooked between
points A and B?
What is the voltage...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
Consider the electric circuit shown in the figure. Assume that the voltage of the battery is...
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
Hi I need help with answers 11-15. thank you The next three questions are about this...
Hi I need help with answers 11-15. thank you
The next three questions are about this circuit. The voltage of
the battery is 12 V, and the values of the resistances are:
R1 = 5 ohms, R2 = 10 ohms, R3 = 15
ohms, and R4 = 20 ohms.
The next three questions pertain to the following situation.
11) R1 and R4
are in:
parallel
series
neither
12) Compare the magnitude of the
voltage across R2 and R4
V2 > V4
V2...
the voltage of the battery is 12V, and the values of the resistances are R1=5 ohms,...
the voltage of the battery is 12V, and the values of
the resistances are R1=5 ohms, R2=10 ohms, R3= 15 ohms, and R4= 20
ohms.
Answer the following questions:
1. R1 and R3 are in :
2. R2 and R4 are in:
3 Compare the magnitude of the current through R2 and R3. which is
greater?
4. Compare the magnitude of the voltage across R1 and R3. which is
greater?
5. Compare the magnitude of the voltage across R2 and...
8. A simple circuit is composed of an ideal 100 v battery in series with three resistors (R1 = 10Ω, R2 = 20Ω, R3 = 30Ω). Which of the following statements is true? Statement A: Each resistor carries t...
8. A simple circuit is composed of an ideal 100 v battery
in series with three resistors (R1 = 10Ω, R2 = 20Ω, R3 = 30Ω).
Which of the following statements is true?
Statement A: Each resistor carries the same current.
Statement B: Each resistor has the same voltage.
Statement C: Each resistor dissipates the same amount energy per
second.
Statement D: The battery power output is greater than the power
output of Resistor 1.
a. Only A is true....
In the circuit below the voltage supplied by the battery is 3.0 V and the resistance...
In the circuit below the voltage supplied by the battery is 3.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 19.0 Ω respectively, what is the current through the resistor R1? R1 R2 Rs 0.214 A Submit Answer Incorrect. Tries 4/10 Previous Tries What is the current through the resistor R2? Submit Answer Tries 0/10 What is the current through the resistor R3? Submit Answer Tries 0/10
10. The next two questions pertain to the following circuit,
where the voltage ε delivered by the battery is 60V, and
R1=20Ω, R2=5Ω, and R3=6Ω.
The voltage across R2 is
Group of answer choices
60V.
48V.
36V.
24V.
12V.
R1 R3 R2 ६ +
Figure 2 - 12-3A R2= 102 R1=50 R3-152 F Question 11 Questions 11 through 20 pertain to figure 2 What is the total power of this circuit? 270w 330w 180w 290w Question 12 1 Questions 11 through 20 pertain to figure 2 What is the power for resistor 1? 180w 270w 60w 90w Question 13 Questions 11 through 20 pertain to figure 2 What is the power for resistor 2? 180w 270w 60w D 90w Question 14 1 Questions 11...
This circuit applies to the next several questions. We are at
the t→∞ limit, where everything is constant but time.
Calculate the energy in the capacitor, in μJ.
ℰ = 7 Volts
R1 = 19 Ω
R2 = 37 Ω
R3 = 45 Ω
C = 4.5 μF
Calculate the power through R3 in Watts.
ℰ = 7 Volts
R1 = 13 Ω
R2 = 21 Ω
R3 = 42 Ω
C = 4.1 μF
At a certain time, the...
Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω ,
and R3 = 90 Ω . When a battery with unknown voltage is hooked up
between points A and B, the current through the resistor R1 is I1
= 0.050 A
What is the voltage across R3? What is the current through the
resistor R3?
What is the total current produced by the battery hooked between
points A and B?
What is the voltage...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
Hi I need help with answers 11-15. thank you
The next three questions are about this circuit. The voltage of
the battery is 12 V, and the values of the resistances are:
R1 = 5 ohms, R2 = 10 ohms, R3 = 15
ohms, and R4 = 20 ohms.
The next three questions pertain to the following situation.
11) R1 and R4
are in:
parallel
series
neither
12) Compare the magnitude of the
voltage across R2 and R4
V2 > V4
V2...
the voltage of the battery is 12V, and the values of
the resistances are R1=5 ohms, R2=10 ohms, R3= 15 ohms, and R4= 20
ohms.
Answer the following questions:
1. R1 and R3 are in :
2. R2 and R4 are in:
3 Compare the magnitude of the current through R2 and R3. which is
greater?
4. Compare the magnitude of the voltage across R1 and R3. which is
greater?
5. Compare the magnitude of the voltage across R2 and...
8. A simple circuit is composed of an ideal 100 v battery
in series with three resistors (R1 = 10Ω, R2 = 20Ω, R3 = 30Ω).
Which of the following statements is true?
Statement A: Each resistor carries the same current.
Statement B: Each resistor has the same voltage.
Statement C: Each resistor dissipates the same amount energy per
second.
Statement D: The battery power output is greater than the power
output of Resistor 1.
a. Only A is true....
In the circuit below the voltage supplied by the battery is 3.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 19.0 Ω respectively, what is the current through the resistor R1? R1 R2 Rs 0.214 A Submit Answer Incorrect. Tries 4/10 Previous Tries What is the current through the resistor R2? Submit Answer Tries 0/10 What is the current through the resistor R3? Submit Answer Tries 0/10
