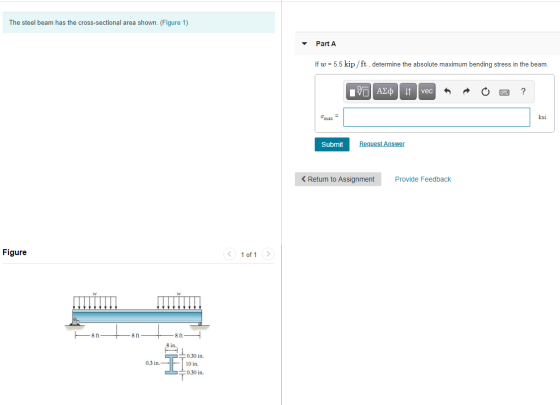

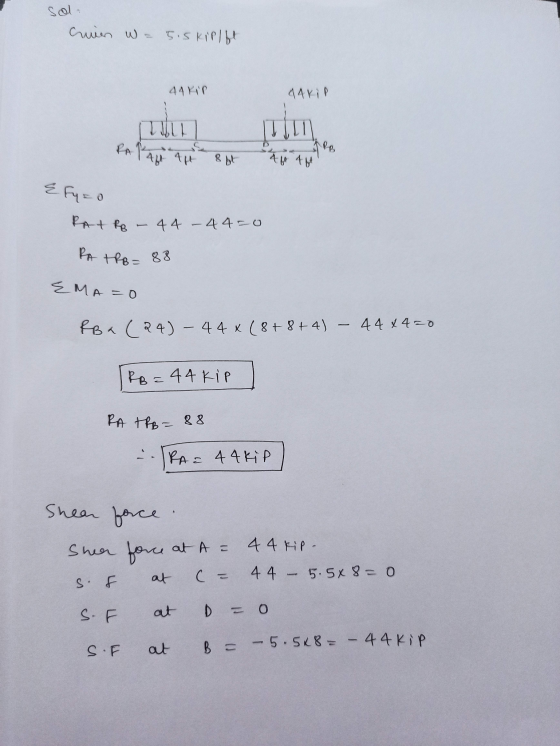

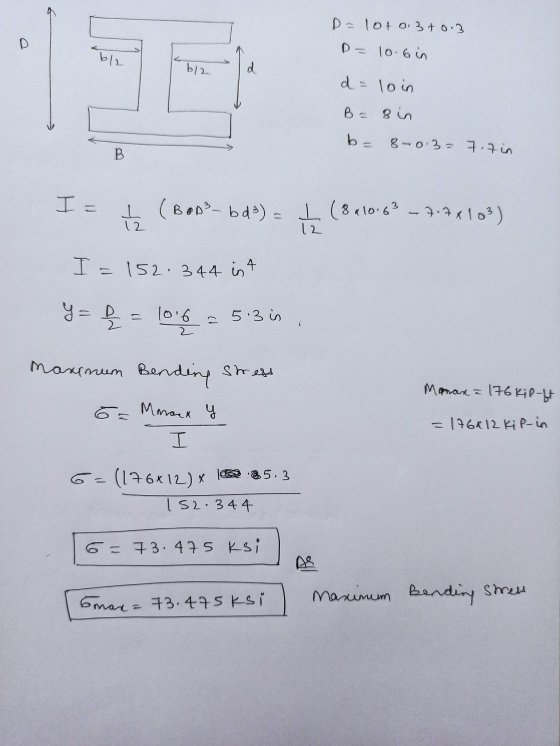

The steel beam has the cross-sectional area shown. (Figure 1) Part A If w = 5.5...
The steel beam has the cross-sectional area shown in (Figure 1) Part A Determine the largest...
The steel beam has the cross-sectional area shown in (Figure 1) Part A Determine the largest intensity of the distributed load to that the beam can support so that the maximum bending stress in the beam does not exceed 160 MPa Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units Submit Request Answer Provide Feedback
The steel beam has the configuration, loading pattern and cross-sectional area shown in Figure 8. Assuming w = 5 kN/m, d...
The steel beam has the configuration, loading pattern and
cross-sectional area shown in Figure 8.
Assuming w = 5 kN/m, determine:
a) the reactions at each end of the beam
b) the second moment of area of the section about the relevant
axis of bending
c) the maximum shear stress and associated distribution of shear
stresses in the beam
d) the maximum bending stress and distribution of bending
stresses in the beam
0.8 m 0.8 m 0.8 m 8 cm...
olids Mechanics I ov 16-Fall 2018 Last four digits of Banner # : The steel beam...
olids Mechanics I ov 16-Fall 2018 Last four digits of Banner # : The steel beam has the cross-sectional area shown. If w 5 kip/ft, determine the absolute maximum bending stress in the beam. 8 in. 0.30 in 10 in. 0.3 in. 0.30 in.
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
The cross-sectional dimensions of the beam shown in the figure are a = 4.8 in, b...
The cross-sectional dimensions of the beam shown in the figure are a = 4.8 in, b = 5.8 in, d = 4.5 in., and t = 0.30 in. The internal bending moment about the z centroidal axis is Mz-4.40 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. typ.) Answers (a) ƠmaxT- psi psi
P8.012 The cross-sectional dimensions of a beam are shown. The internal bending moment about the z...
P8.012 The cross-sectional dimensions of a beam are shown. The internal bending moment about the z centroidal axis is M-+3.96 kip-ft. Assume b-7.625 in., d-6.5 in. and t-0.25 in. Determine: (a) the maximum tension bending stress ?T in the beam. (b) the maximum compression bending stress ? c in the beam. ksi ksi.
The cross-sectional dimensions of the beam shown in the figure are a = 4.9 in., b...
The cross-sectional dimensions of the beam shown in the figure are a = 4.9 in., b = 6.4 in., d = 4.4 in., and t = 0.31 in. The internal bending moment about the z centroidal axis is My = -4.30 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. Answers: (a) Omax T = (6) Omax C =
The steel beam has the cross section shown. The beam length is L = 24 ft,...
The steel beam has the cross section shown. The beam length is L = 24 ft, and the cross-sectional dimensions are d = 18.6 in., bf = 9.1 in., tf = 0.615 in., and tw 0.305 in. Calculate the maximum bending stress in the beam if wo = 7.5 kips/ft. у В Answer: omax ksi = the tolerance is +/-2%
Incorrect The cross-sectional dimensions of the beam shown in the figure are a 4.4 in., b-5.4...
Incorrect The cross-sectional dimensions of the beam shown in the figure are a 4.4 in., b-5.4 in, d 5.0 in, and t 0.34 in. The internal bending moment about the z centroidal axis is M,--3.95 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam (b) the maximum compression bending stress (a negative number) in the beam. (typ.) CL CI Answers: (a) Omax T=T4355 psi (b) Ơmax C-T-2887 psi
The cross-sectional dimensions of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d = 4.2 in., and t = 0.31 in. The internal bending moment about the z centroidal axis is Mz = -3.60 kip-ft....
The cross-sectional dimensions
of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d =
4.2 in., and t = 0.31 in. The internal bending moment about the z
centroidal axis is Mz = -3.60 kip-ft. Determine (a) the maximum
tension bending stress (a positive number) in the beam. (b) the
maximum compression bending stress (a negative number) in the beam.
Answers: (a) σmax T = psi (b) σmax C = psi
P8.012 The...
The steel beam has the cross-sectional area shown in (Figure 1) Part A Determine the largest intensity of the distributed load to that the beam can support so that the maximum bending stress in the beam does not exceed 160 MPa Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units Submit Request Answer Provide Feedback
The steel beam has the configuration, loading pattern and
cross-sectional area shown in Figure 8.
Assuming w = 5 kN/m, determine:
a) the reactions at each end of the beam
b) the second moment of area of the section about the relevant
axis of bending
c) the maximum shear stress and associated distribution of shear
stresses in the beam
d) the maximum bending stress and distribution of bending
stresses in the beam
0.8 m 0.8 m 0.8 m 8 cm...
olids Mechanics I ov 16-Fall 2018 Last four digits of Banner # : The steel beam has the cross-sectional area shown. If w 5 kip/ft, determine the absolute maximum bending stress in the beam. 8 in. 0.30 in 10 in. 0.3 in. 0.30 in.
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
The cross-sectional dimensions of the beam shown in the figure are a = 4.8 in, b = 5.8 in, d = 4.5 in., and t = 0.30 in. The internal bending moment about the z centroidal axis is Mz-4.40 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. typ.) Answers (a) ƠmaxT- psi psi
P8.012 The cross-sectional dimensions of a beam are shown. The internal bending moment about the z centroidal axis is M-+3.96 kip-ft. Assume b-7.625 in., d-6.5 in. and t-0.25 in. Determine: (a) the maximum tension bending stress ?T in the beam. (b) the maximum compression bending stress ? c in the beam. ksi ksi.
The cross-sectional dimensions of the beam shown in the figure are a = 4.9 in., b = 6.4 in., d = 4.4 in., and t = 0.31 in. The internal bending moment about the z centroidal axis is My = -4.30 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. Answers: (a) Omax T = (6) Omax C =
The steel beam has the cross section shown. The beam length is L = 24 ft, and the cross-sectional dimensions are d = 18.6 in., bf = 9.1 in., tf = 0.615 in., and tw 0.305 in. Calculate the maximum bending stress in the beam if wo = 7.5 kips/ft. у В Answer: omax ksi = the tolerance is +/-2%
Incorrect The cross-sectional dimensions of the beam shown in the figure are a 4.4 in., b-5.4 in, d 5.0 in, and t 0.34 in. The internal bending moment about the z centroidal axis is M,--3.95 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam (b) the maximum compression bending stress (a negative number) in the beam. (typ.) CL CI Answers: (a) Omax T=T4355 psi (b) Ơmax C-T-2887 psi
The cross-sectional dimensions
of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d =
4.2 in., and t = 0.31 in. The internal bending moment about the z
centroidal axis is Mz = -3.60 kip-ft. Determine (a) the maximum
tension bending stress (a positive number) in the beam. (b) the
maximum compression bending stress (a negative number) in the beam.
Answers: (a) σmax T = psi (b) σmax C = psi
P8.012 The...
