![# using Faradays lau be.de de dl = al- 2 •Bt $ = B.A. - Boe AR? Efde BOAR d [eßt] dt 2 = ßt EX 24R BoTR² ße Bt E Bob e at t=](http://img.homeworklib.com/questions/8a615460-0666-11eb-bb12-25080ac0dc02.png?x-oss-process=image/resize,w_560)
Add Answer to:
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in...

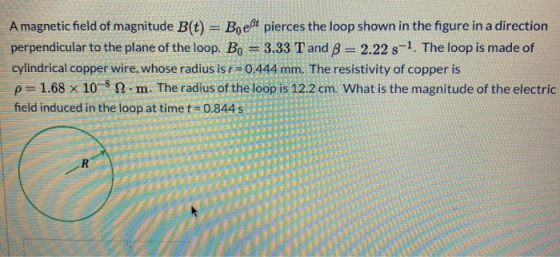

A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B= 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t = 0.844 s?...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 2. m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the loop at time...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. B. = 3.33 T and B = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the loop at time t =...
Question 3 6.25 pts - A magnetic field of magnitude B(t) = Boeßt pierces the loop...
Question 3 6.25 pts - A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo 3.33 T and ß = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius isr=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 12. m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the...
Question 13 6.25 pts Amagnetic field of magnitude B(t) = Boeßt pierces the loop shown in...
Question 13 6.25 pts Amagnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and ß = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p 1.68 x 10-8 12. m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop...
A magnetic field of magnitude B(t) = Boest pierces the loop shown in the figure in...
A magnetic field of magnitude B(t) = Boest pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B= 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r = 0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t =...
A magnetic field of magnitude B(t) = B, et pierces the loop shown in the figure...
A magnetic field of magnitude B(t) = B, et pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and 8 = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p=1.68 x 1089.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t = 0.844...
A rectangular conducting loop of dimensions L = 3.55 m and d = 2.11 mis pulled...
A rectangular conducting loop of dimensions L = 3.55 m and d = 2.11 mis pulled to the right at a speed of v = 5.46 m/s out of a magnetic field of magnitude B = 0.766 T which points into the page, as shown. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 22.m. What thermal power is dissipated in the loop? REK ELE WIN *...
A circular wire loop of radius 1.1 cm is placed in a magnetic field of magnitude...
A circular wire loop of radius 1.1 cm is placed in a magnetic field of magnitude 2.2 T. If the magnetic field goes to zero in a time of 5 s, what is the magnitude of the current induced in the loop? The wire has a diameter of 2 mm, and the resistivity of copper is 1.7 x 10-8 Ohm-m. ______________A
a circular loop of wire radius r is perpendicular to a magnetic field whose magnitude as...
a circular loop of wire radius r is perpendicular to a magnetic
field whose magnitude as a function of time t is given by the
equations B=bt^2 + ct, where b and c are positive, nonzero
constants. What is the magnitude of the emf induced in the loop as
a function of time t?
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B= 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t = 0.844 s?...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 2. m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the loop at time...
A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. B. = 3.33 T and B = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the loop at time t =...
Question 3 6.25 pts - A magnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo 3.33 T and ß = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius isr=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 12. m. The radius of the loop is 12.2 cm. What is the magnitude of the electric field induced in the...
Question 13 6.25 pts Amagnetic field of magnitude B(t) = Boeßt pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and ß = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p 1.68 x 10-8 12. m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop...
A magnetic field of magnitude B(t) = Boest pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and B= 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r = 0.444 mm. The resistivity of copper is p= 1.68 x 10-812.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t =...
A magnetic field of magnitude B(t) = B, et pierces the loop shown in the figure in a direction perpendicular to the plane of the loop. Bo = 3.33 T and 8 = 2.22 s-1. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p=1.68 x 1089.m. The radius of the loop is 12.2 cm. What is the magnitude of the emf induced in the loop at time t = 0.844...
A rectangular conducting loop of dimensions L = 3.55 m and d = 2.11 mis pulled to the right at a speed of v = 5.46 m/s out of a magnetic field of magnitude B = 0.766 T which points into the page, as shown. The loop is made of cylindrical copper wire, whose radius is r=0.444 mm. The resistivity of copper is p= 1.68 x 10-8 22.m. What thermal power is dissipated in the loop? REK ELE WIN *...
a circular loop of wire radius r is perpendicular to a magnetic
field whose magnitude as a function of time t is given by the
equations B=bt^2 + ct, where b and c are positive, nonzero
constants. What is the magnitude of the emf induced in the loop as
a function of time t?
