Question

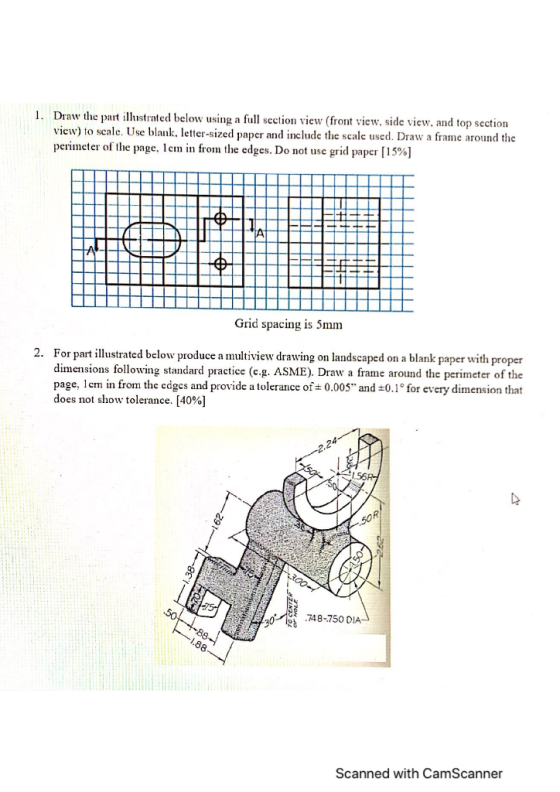

1. Draw the part illustrated below using a full section view (front view, side view, and top section view) to scale. Use blank, letter-sized paper and include the scale used. Draw a frame around the perimeter of the page, 1cm in from the edges. Do not use grid paper (15%) Grid spacing is 5mm 2. For part illustrated below produce a multiview drawing on landscaped on a blank paper with proper dimensions following standard practice (e.g. ASME). Draw a frame around the perimeter of the page, 1 cm in from the edges and provide a tolerance of+0.005" and +0.1° for every dimension that does not show tolerance. (40%) 156 :50R 00 .50-88- .748-750 DIA 1.88 Scanned with CamScanner

Answer 1

Please go through images given for complete drawing for Q.1

Q.1

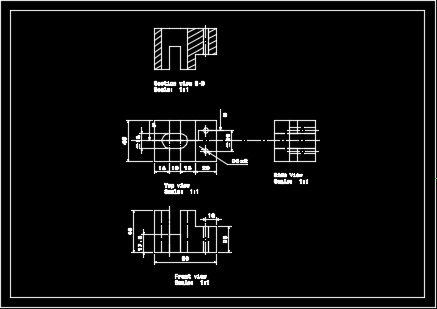

111 الا داد اولا ضe w fii ملا 111 الة TIT : به ق E 1

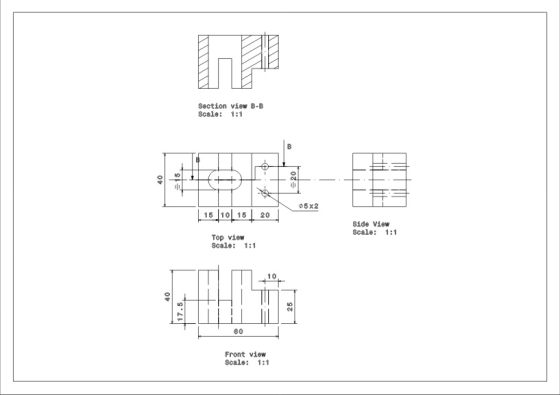

Section view B-B Scale: 1:1 B 40 = 15 = 20 05x2 15 10 15 20 Side View Scale: 1:1 Top view Scale: 1:1 10 HA 80 Front view Scale: 1:1

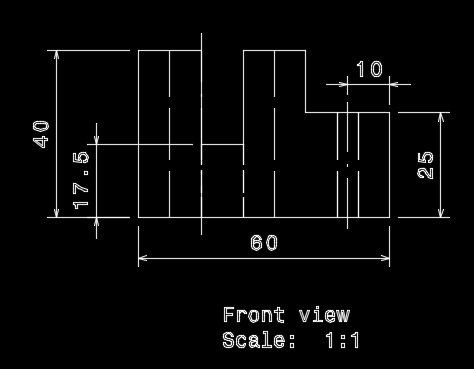

10. 40 25 17.5 60 Front view Scale: 1:1

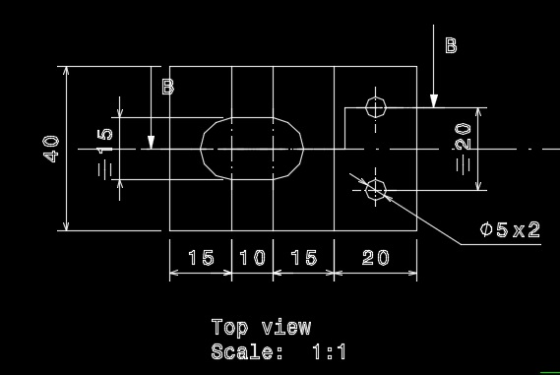

B £ 40 = 15 = 20 05x2 15 10 15 20 Top view Scale: 1:1

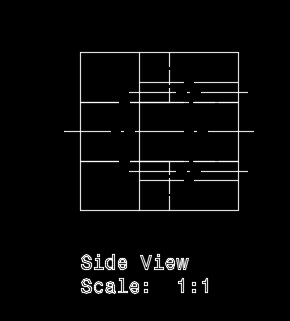

Side View Scale: 1:1

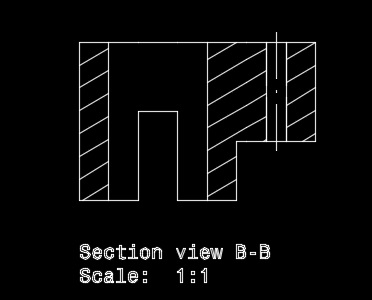

Section view B-B Scale: 1:1
