Homework Answers
Add Answer to:

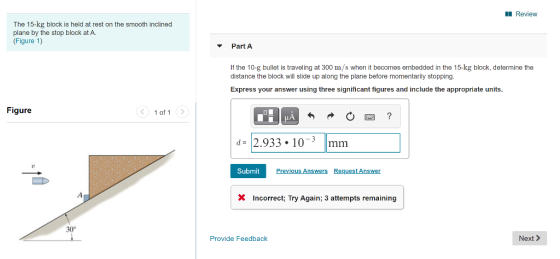

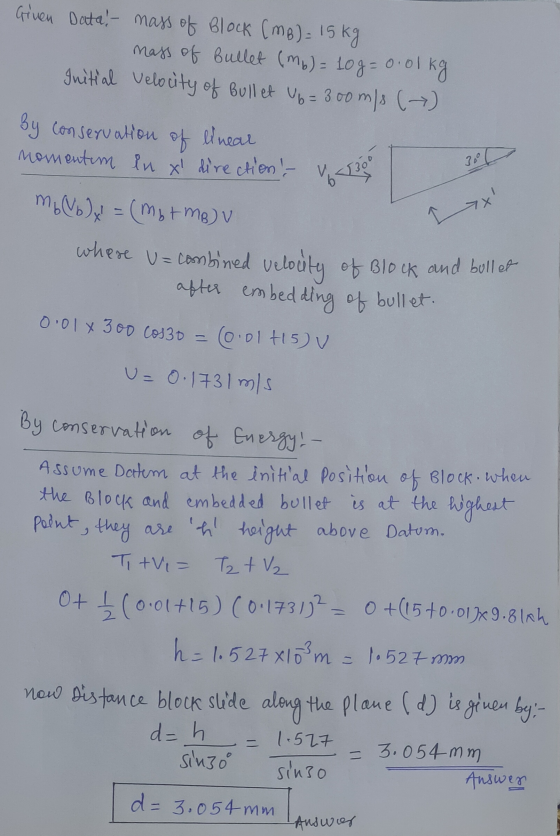

Review The 15-kg block is held at rest on the smooth inclined plane by the stop...
The 8-kg block is held at rest on the smooth inclined plane by the stop block...
The 8-kg block is held at rest on the smooth inclined plane by the stop block at A (Figure 1) Part A the 10-g builet is traveling at 320 m/s when it becomes embedded in the 8-kg block, detemine the dstance the block will slide up along the plane before momentarily stopping Figure Express your answer using three significant figures and include the appropriate units 1 of 1 dValue Units Submit tAne Provide Feedback Next
Problem 8.24 29 of 36 n Review | Constants A 6.00 g bullet is fired horizontally...
Problem 8.24 29 of 36 n Review | Constants A 6.00 g bullet is fired horizontally into a 1.40 kg wooden block resting on a horizontal surface. The coefficient of kinetic friction between block and surface is 0.200. The bullet remains embedded in the block, which is observed to slide 0.200 m along the surface before stopping. Part A What was the initial speed of the bullet? AEO ? v = 222.617 m/s Submit Previous Answers Request Answer X Incorrect;...
Problem 15.43 5 of 13 Review The 20-g bullet is travelling at 400 m/s when it...
Problem 15.43 5 of 13 Review The 20-g bullet is travelling at 400 m/s when it becomes embedded in the 2-kg stationary block. The coefficient of kinetic friction between the block and the plane is Me = 0.2. (Figure 1) Part A Determine the distance the block will slide before it stops. Express your answer to three significant figures and include the appropriate units. A ? S = Value Units Submit Request Answer Provide Feedback Next > Figure < 1...
Review The 6-kg smooth collar has a speed of 3 m/s when it is at s...
Review The 6-kg smooth collar has a speed of 3 m/s when it is at s = 0. The spring has an unstretched length of 1 m. (Figure 1) Part A Determine the maximum distance s the collar travels before it stops momentarily. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > Å ? * o O m -1.5 m 8 = 1.50 3 m/s Submit Previous Answers Request Answer k...
KAssignment 3 Problem 14.76 Part A The 2-kg smooth collar has a speed of 3 m/s...
KAssignment 3 Problem 14.76 Part A The 2-kg smooth collar has a speed of 3 m/s when it is at 80. The spring has an unstretched lenath of 1 m Determine the maximum distance s the collar travels before it stops momentarily Express your answer to three significant figures and include the appropriate units. he o fes keyboard shortcuts heip 2.18 s = m Previous Answers Request Answer Submit X Incorrect: Try Again; 5 attempts remaining Figure 1 of 1>...
3. Each block on the inclined plane weighs 100 kg. (a) For what maximum angle the...
3. Each block on the inclined plane weighs 100 kg. (a) For what maximum angle the blocks will not slide if the coefficient of static friction between the blocks and the inclined surface is 0.2? (b) Will the inclined angle calculated in part (a) increase, decrease or remain same if the block weights increase to 200 kg each? Simply circle the right answer, no need to justify. (c) If the coefficient of static friction between block B and the surface...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
Problem 13.22 The 50 kg block A is released from rest. (Figure 1) Part A Determine...
Problem 13.22 The 50 kg block A is released from rest. (Figure 1) Part A Determine the velocity of the 13-kg block B in 4 s Express your answer to three significant figures and include the appro velocity is downward. NA m U Value S Figure C1 of 1 > Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining Provide Feedback
Problem 14.32 < 10 of 10 > Review The block has a mass of 0.81 kg...
Problem 14.32 < 10 of 10 > Review The block has a mass of 0.81 kg and moves within the smooth vertical slot. It starts from rest when the attached spring is in the unstretched position at A. SB = 0.15 m. Neglect the size and mass of the pulley. Hint: The work of F can be determined by finding the difference Alin cord lengths AC and BC and using UF=FAL (Figure 1) Part A Determine the magnitude of the...
Problem 17.18 The block has a mass of 4 kg, and the semicylinder has a mass...
Problem 17.18 The block has a mass of 4 kg, and the semicylinder has a mass of 6 kg . (Figure 1) Part A Determine the moment of inertia of the assembly about an axis perpendicular to the page and passing through point O. Express your answer to three significant figures and include the appropriate units. UA ? 10 = 0.656 kg.m? Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Provide Feedback Figure 1 of 1...
The 8-kg block is held at rest on the smooth inclined plane by the stop block at A (Figure 1) Part A the 10-g builet is traveling at 320 m/s when it becomes embedded in the 8-kg block, detemine the dstance the block will slide up along the plane before momentarily stopping Figure Express your answer using three significant figures and include the appropriate units 1 of 1 dValue Units Submit tAne Provide Feedback Next
Problem 8.24 29 of 36 n Review | Constants A 6.00 g bullet is fired horizontally into a 1.40 kg wooden block resting on a horizontal surface. The coefficient of kinetic friction between block and surface is 0.200. The bullet remains embedded in the block, which is observed to slide 0.200 m along the surface before stopping. Part A What was the initial speed of the bullet? AEO ? v = 222.617 m/s Submit Previous Answers Request Answer X Incorrect;...
Problem 15.43 5 of 13 Review The 20-g bullet is travelling at 400 m/s when it becomes embedded in the 2-kg stationary block. The coefficient of kinetic friction between the block and the plane is Me = 0.2. (Figure 1) Part A Determine the distance the block will slide before it stops. Express your answer to three significant figures and include the appropriate units. A ? S = Value Units Submit Request Answer Provide Feedback Next > Figure < 1...
Review The 6-kg smooth collar has a speed of 3 m/s when it is at s = 0. The spring has an unstretched length of 1 m. (Figure 1) Part A Determine the maximum distance s the collar travels before it stops momentarily. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > Å ? * o O m -1.5 m 8 = 1.50 3 m/s Submit Previous Answers Request Answer k...
KAssignment 3 Problem 14.76 Part A The 2-kg smooth collar has a speed of 3 m/s when it is at 80. The spring has an unstretched lenath of 1 m Determine the maximum distance s the collar travels before it stops momentarily Express your answer to three significant figures and include the appropriate units. he o fes keyboard shortcuts heip 2.18 s = m Previous Answers Request Answer Submit X Incorrect: Try Again; 5 attempts remaining Figure 1 of 1>...
3. Each block on the inclined plane weighs 100 kg. (a) For what maximum angle the blocks will not slide if the coefficient of static friction between the blocks and the inclined surface is 0.2? (b) Will the inclined angle calculated in part (a) increase, decrease or remain same if the block weights increase to 200 kg each? Simply circle the right answer, no need to justify. (c) If the coefficient of static friction between block B and the surface...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
Problem 13.22 The 50 kg block A is released from rest. (Figure 1) Part A Determine the velocity of the 13-kg block B in 4 s Express your answer to three significant figures and include the appro velocity is downward. NA m U Value S Figure C1 of 1 > Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining Provide Feedback
Problem 14.32 < 10 of 10 > Review The block has a mass of 0.81 kg and moves within the smooth vertical slot. It starts from rest when the attached spring is in the unstretched position at A. SB = 0.15 m. Neglect the size and mass of the pulley. Hint: The work of F can be determined by finding the difference Alin cord lengths AC and BC and using UF=FAL (Figure 1) Part A Determine the magnitude of the...
Problem 17.18 The block has a mass of 4 kg, and the semicylinder has a mass of 6 kg . (Figure 1) Part A Determine the moment of inertia of the assembly about an axis perpendicular to the page and passing through point O. Express your answer to three significant figures and include the appropriate units. UA ? 10 = 0.656 kg.m? Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Provide Feedback Figure 1 of 1...
