3) For the beam and loading shown in figure, E = 30 x 106 psi, I...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

3) ANSWER :

The answer is shown in the below handwritten notes :

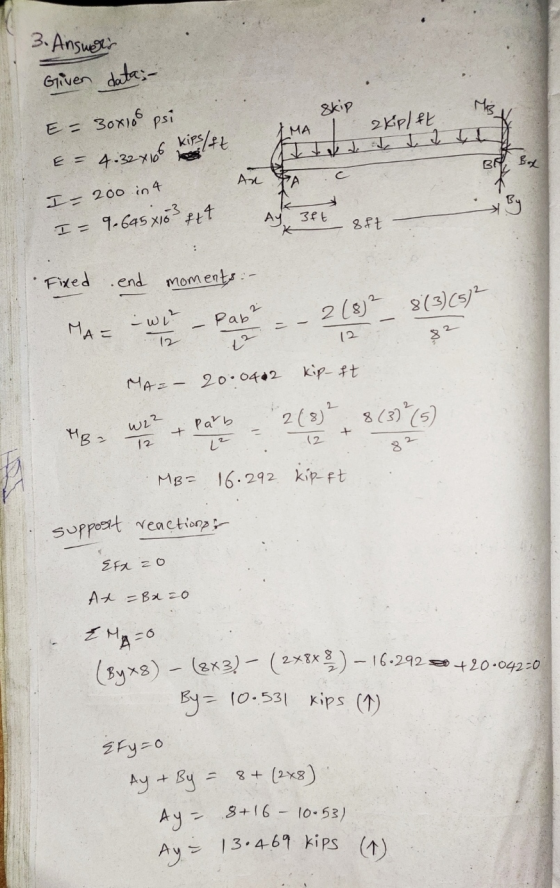

3. Answers Given data;- skip MA ekiplet E = 30x108 psi = 4.32x106 kips/++ BF Bg An PA By I= 200 in 4 I= 9.645 x103 444 Ay 3ft

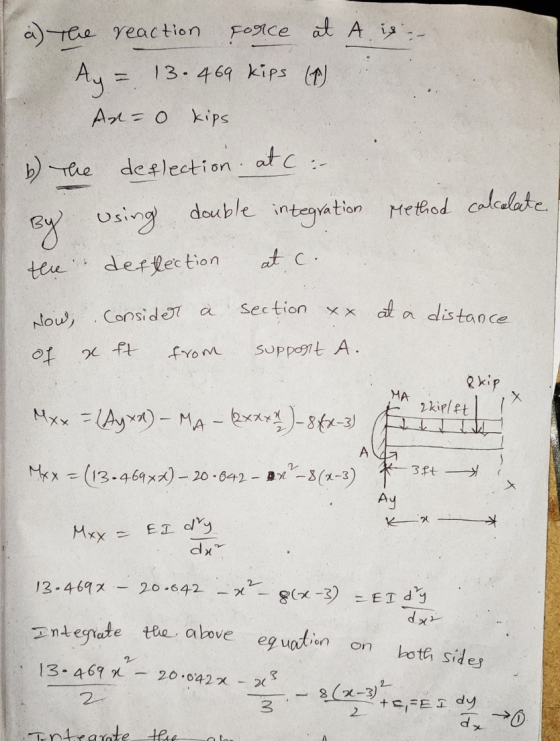

a) The reaction force at A is Ay = 13.469 kips (1) An- 0 tips b) The deflection at C: By using double integration Method calc

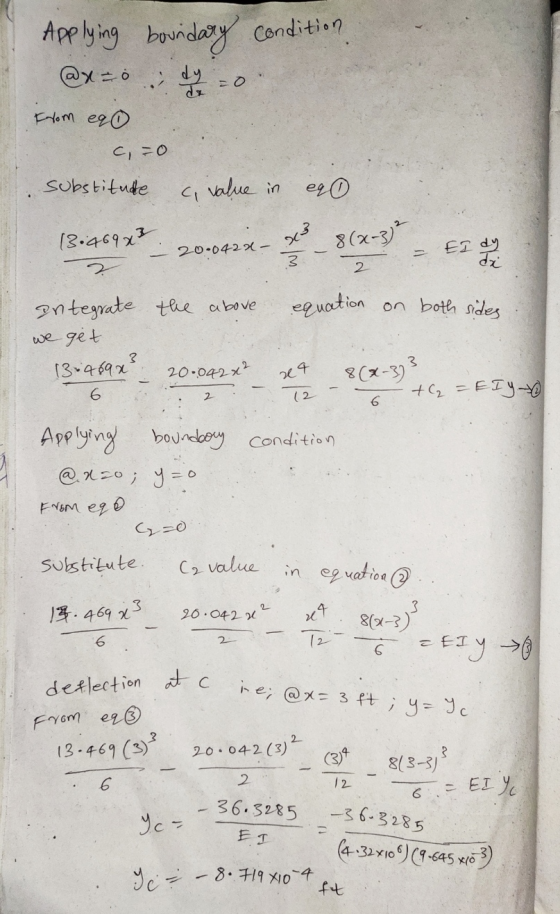

boundary condition Applying @xzoeken From ea =0 c=0 substitute c value in eq قر 8(x-3)? (3.469x². 20.0422- 2 3 El dy EI di 2

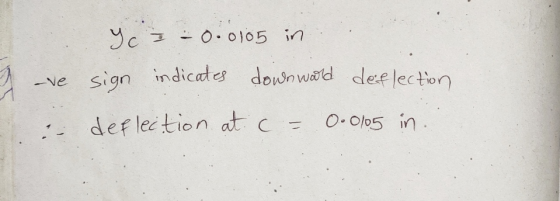

Yc 0.0105 in ave sign indicates downwoorld deflection deflection at c = 0.0/05 in.

Answer 2

Similar Homework Help Questions

3) For the beam and loading shown in figure, E = 30 x 106 psi, I...

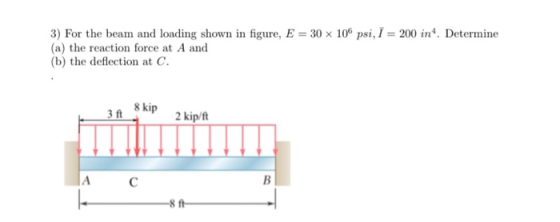

3) For the beam and loading shown in figure, E = 30 x 106 psi, I = 200 in. Determine (a) the reaction force at A and (b) the deflection at C. 3 ft 8 kip 2 kipit IA с В | -8 ft
