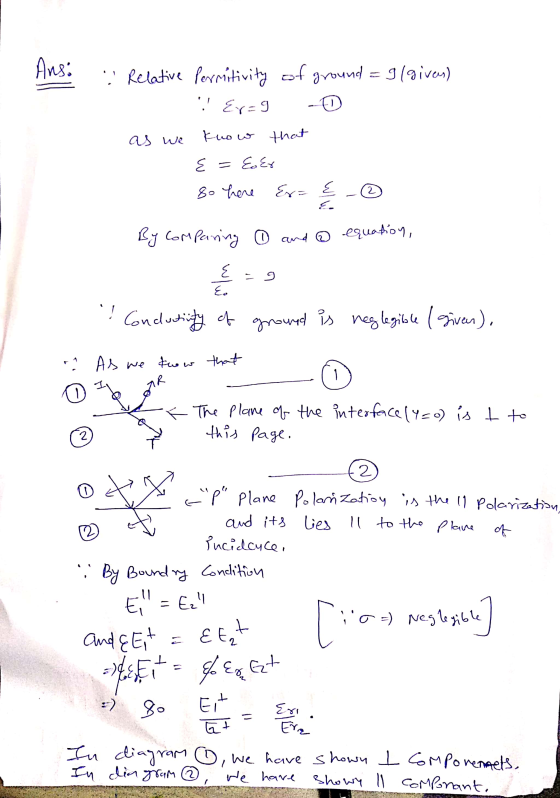

if the relative permittivity of a ground is 9 and the conductivity is very small and...
if the relative permittivity of a ground is 9 and the
conductivity is very small and negligible, plot the
reflection
coefficient as a function of the incident angle for both
parallel
and perpendicular polarisations
Homework Answers
Add Answer to:
if the relative permittivity of a ground is 9 and the
conductivity is very small and...
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and...
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients. Does a Brewster angle exist for this case where the reflection coefficient vanishes for a particular angle of incidence? Show all necessary illustration, and assumptions made.
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients....
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2....
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2. The wave reaches the interface between this medium and air at an angle of incidence 60°. The wave's electric field vector is parallel to the plane of incidence. What percentage of the incident power is transmitted in air? 20. A plane electromagnetic wave traveling in vacuum is normally incident onto a vacuum/dielectric boundary. 36% of the incident power is carried by the reflected wave....
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(...
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(4 Ver) and λο is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration of the problem,...
6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave ...
6. Write the phasor expressions for the incident waves described
in problems 4 and 5 if the wave has a frequency of 100 MHz.
A perpendicularly polarized wave has an angle of incidence of 30 degrees. The dielectric boundary between air and a medium with relative dielectric permittivity of 4 is at z 4. 0. a. Find the angle of the refracted wave b. Find the reflection coefficient If the wave in problem 4 had parallel polarization, what would be...
please show clear steps A plane wave is incident on a dielectric slab of permittivity er and thickness d at an inciden...
please show clear steps
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θ0, where d λο/(4vRr) and X0 is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary between air and a medium with relative dielectric permittivity of 4 is at z-0. a. b. Find the angle of the refracted wave Find the reflection coefficient 5. If the wave in problem 4 had parallel polarization, what would be the Brewster angle? 6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave has a frequency...
EI kr Hi Er Hr Et r2-81 Ht kt A planar interface forms a boundary between air and water (assume t...
EI kr Hi Er Hr Et r2-81 Ht kt A planar interface forms a boundary between air and water (assume that this interface is flat and infinite in extent). Both materials have fh -1 and σ :: 0 S/m, where the relative permittivity of air is 1 (Er": 1) and the relative permittivity of pure water is 81 ( = 81). The coordinate system is indicated in the figure above. A uniform plane wave is obliquely incident to the interface,...
a small pumpkin is launched from a very versatile catapult at a variety of speeds and...
a
small pumpkin is launched from a very versatile catapult at a
variety of speeds and angles. The angles are measured relative to
the horizontal. Rank each of the following trials by the maximum
height reached by the pumpkin . (1=highest)consider air resistance
to be negligible .
A small pumpkin is launched from a very versatile catapul reached by the pumplén, (i=highest) Consider air resista Speed: 45.8m/s, Angle: 39.6° Speed: 21.2m/s, Angle: 74.40 Speed: 18.6m/s, Angle: 33 Speed: 28.6m/s, Angle:...
A small toy airplane is flying in the xy-plane parallel to the ground. In the time...
A small toy airplane is flying in the xy-plane parallel to the ground. In the time interval t=0 to t=10.0 s, its velocity as a function of time is given by υ⃗ =(1.30m/s2)ti^+[12.0m/s−(2.00m/s2)t]j^ 1-At what value of t is the velocity of the plane perpendicular to its acceleration? Express your answer to three significant figures and include the appropriate units.
A small toy airplane is flying in the xy-plane parallel to the ground. In the time...
A small toy airplane is flying in the xy-plane parallel to the ground. In the time interval t=0 to t=10.0 s, its velocity as a function of time is given by υ⃗ =(1.30m/s2)ti^+[12.0m/s−(2.00m/s2)t]j^υ→=(1.30m/s2)ti^+[12.0m/s−(2.00m/s2)t]j^. At what value of t is the velocity of the plane perpendicular to its acceleration? Express your answer to three significant figures and include the appropriate units.
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients. Does a Brewster angle exist for this case where the reflection coefficient vanishes for a particular angle of incidence? Show all necessary illustration, and assumptions made.
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients....
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2. The wave reaches the interface between this medium and air at an angle of incidence 60°. The wave's electric field vector is parallel to the plane of incidence. What percentage of the incident power is transmitted in air? 20. A plane electromagnetic wave traveling in vacuum is normally incident onto a vacuum/dielectric boundary. 36% of the incident power is carried by the reflected wave....
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(4 Ver) and λο is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration of the problem,...
6. Write the phasor expressions for the incident waves described
in problems 4 and 5 if the wave has a frequency of 100 MHz.
A perpendicularly polarized wave has an angle of incidence of 30 degrees. The dielectric boundary between air and a medium with relative dielectric permittivity of 4 is at z 4. 0. a. Find the angle of the refracted wave b. Find the reflection coefficient If the wave in problem 4 had parallel polarization, what would be...
please show clear steps
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θ0, where d λο/(4vRr) and X0 is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary between air and a medium with relative dielectric permittivity of 4 is at z-0. a. b. Find the angle of the refracted wave Find the reflection coefficient 5. If the wave in problem 4 had parallel polarization, what would be the Brewster angle? 6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave has a frequency...
EI kr Hi Er Hr Et r2-81 Ht kt A planar interface forms a boundary between air and water (assume that this interface is flat and infinite in extent). Both materials have fh -1 and σ :: 0 S/m, where the relative permittivity of air is 1 (Er": 1) and the relative permittivity of pure water is 81 ( = 81). The coordinate system is indicated in the figure above. A uniform plane wave is obliquely incident to the interface,...
a
small pumpkin is launched from a very versatile catapult at a
variety of speeds and angles. The angles are measured relative to
the horizontal. Rank each of the following trials by the maximum
height reached by the pumpkin . (1=highest)consider air resistance
to be negligible .
A small pumpkin is launched from a very versatile catapul reached by the pumplén, (i=highest) Consider air resista Speed: 45.8m/s, Angle: 39.6° Speed: 21.2m/s, Angle: 74.40 Speed: 18.6m/s, Angle: 33 Speed: 28.6m/s, Angle:...
