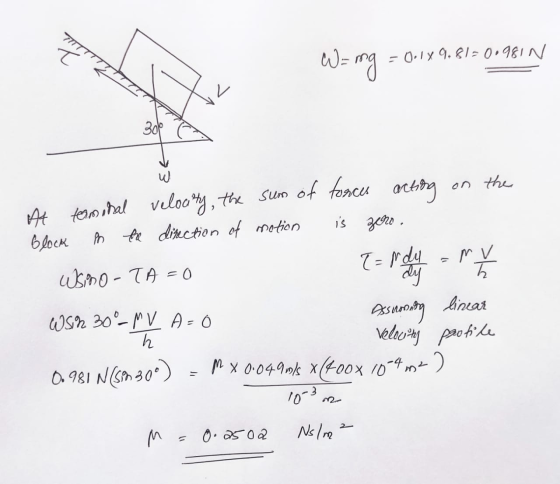

Viscosity of an oil film when an object with a mass of m=0.1 kg and a cross section of 400 cm2 slides at a constant speed V= 0.049 m/s on an oil film 1 mm thick on a plate inclined 30° to the horizontal line as shown in the figure. How many N·s/m2 is the coefficient?
