Question

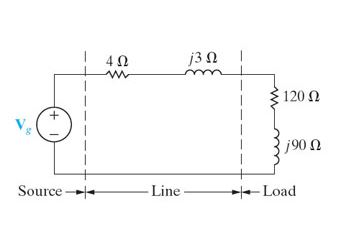

Consider the circuit shown in (Figure 1). Suppose that V, = 415 0°V (rms).

4 Ω ν j3ΩΙ 120 Ω + j90 Ω Source- Line - Load

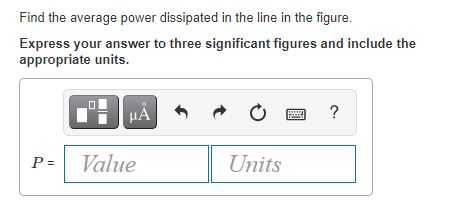

Find the average power dissipated in the line in the figure. Express your answer to three significant figures and include the

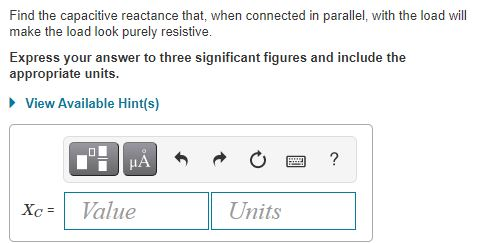

Find the capacitive reactance that, when connected in parallel, with the load will make the load look purely resistive. Expre

What is the equivalent impedance of the load in Part B? Express your answer to three significant figures and include the appr

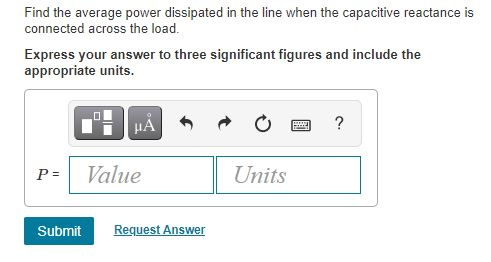

Find the average power dissipated in the line when the capacitive reactance is connected across the load. Express your answer

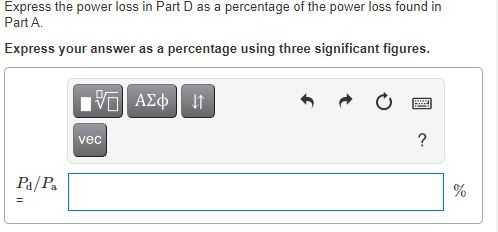

Express the power loss in Part D as a percentage of the power loss found in Part A. Express your answer as a percentage using

0 0
Add a comment Improve this question Transcribed image text
Answer #1

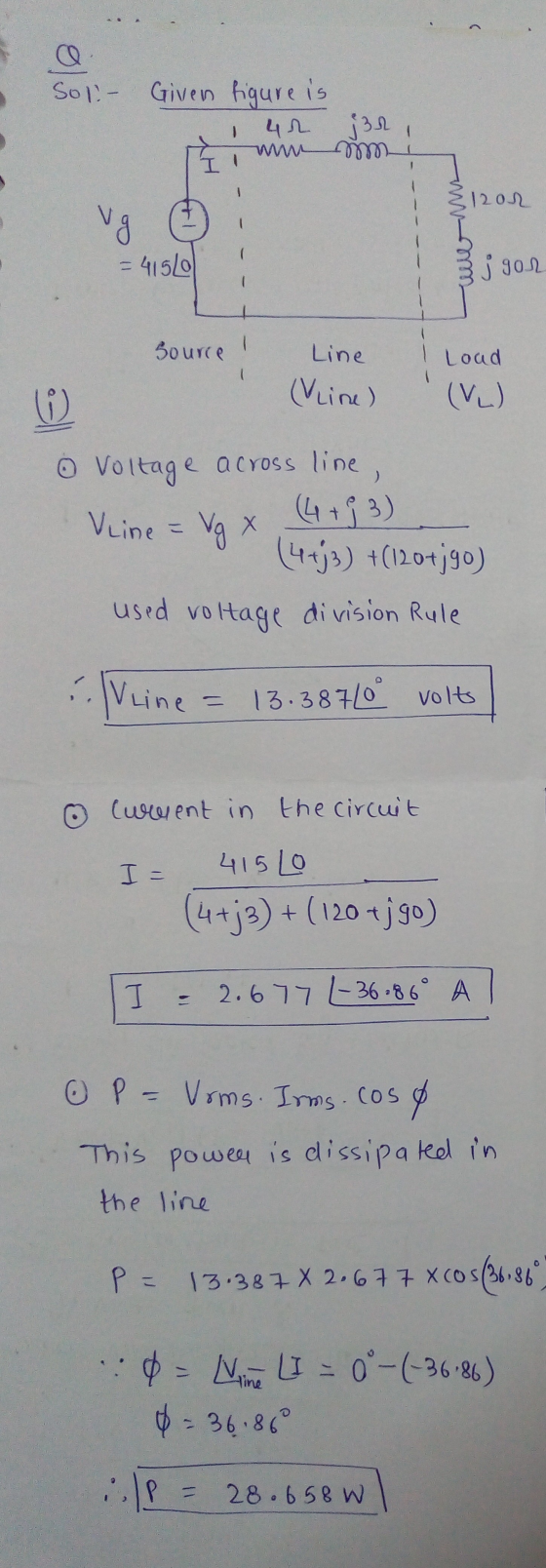

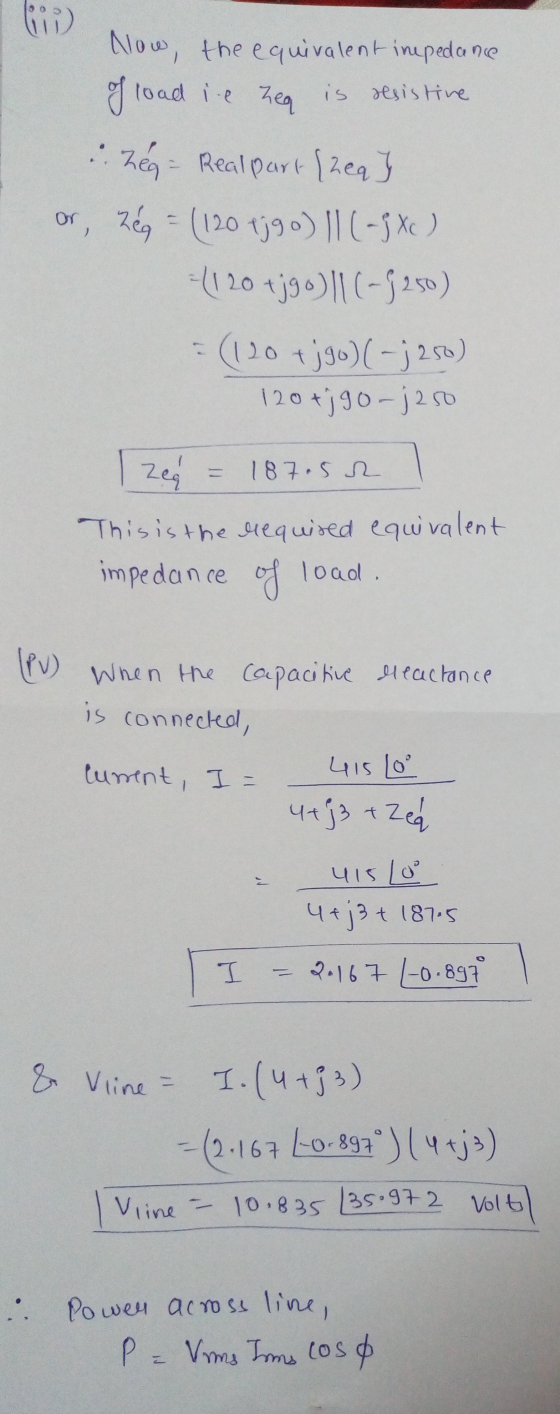

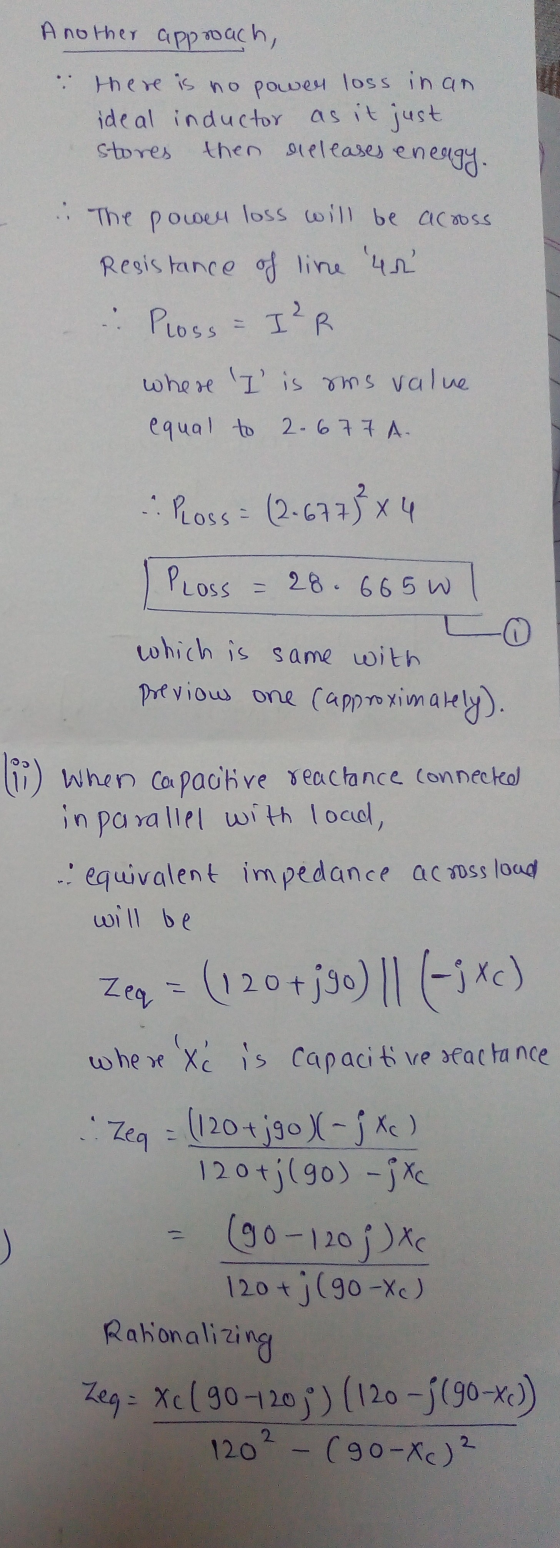

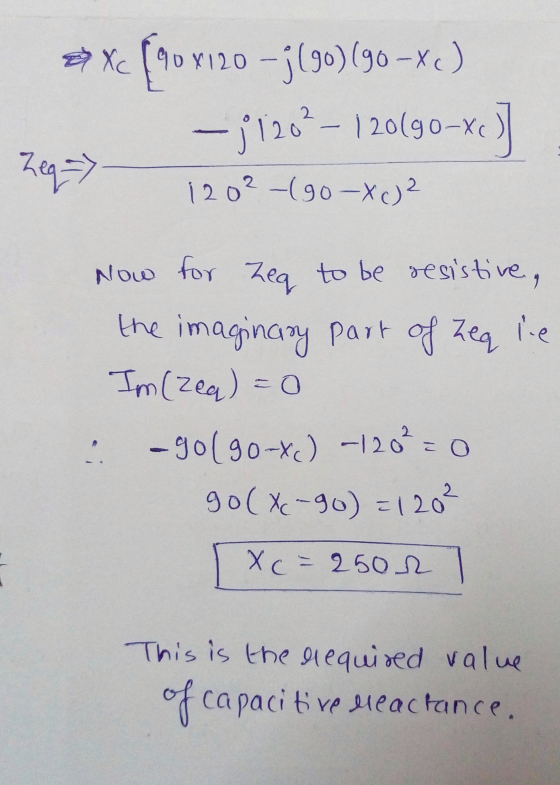

page1
