QUESTION 4 A +1 C charge is placed at the origin. A-1 C charge is placed...

Question

Question

science physics

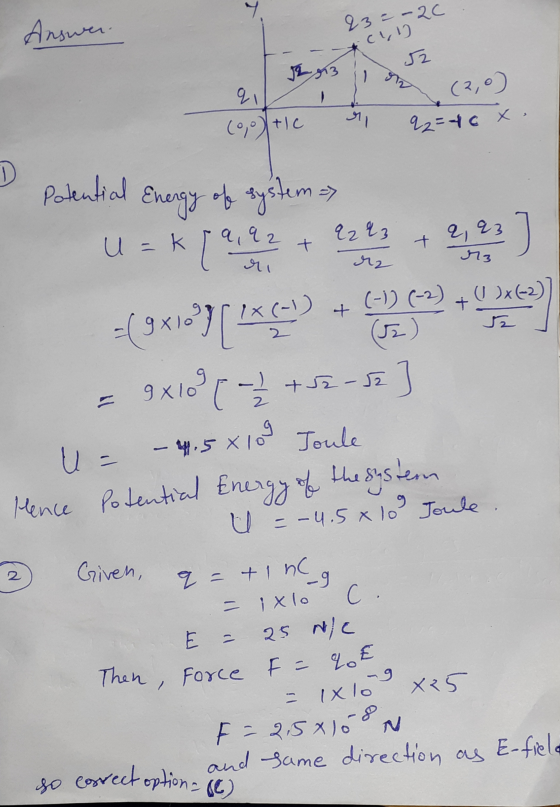

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1) A -1 nC charge is placed in a uniform electric field of strength 25 N/C....

1) A -1 nC charge is placed in a uniform electric field of strength 25 N/C. What force (in N) (magnitude and direction) will the charge feel due to this field? 2) A + 1 C charge is placed at the origin. A -1 C charge is placed at position (x,y)=(2 m, 0), and a -2 C is placed at (x,y)=(1 m, 1 m). What is the electric potential energy (in J) of this charge configuration?
c. Positive d. Negative QUESTION 3 A +1 C charge is placed at the origin. A-1...

c. Positive d. Negative QUESTION 3 A +1 C charge is placed at the origin. A-1 C charge is placed at position (xv)-(1m, O). What is the electric potential energy of this charge configuration? 3.4.5x10^9) w b.-4.5x10^9) -9.9x1091 d. 2.25x10^9)
When a test charge qo 7 nC is placed at the origin, it experiences a force...

When a test charge qo 7 nC is placed at the origin, it experiences a force of 8 x 104 N in the positive y direction. (a) What is the electric field at the origin? N/C j D what would be the force on a charge of -4 nC placed at the aign N j (c) If this force is due to a charge on the y axis at y 3 cm, what is that charge (magnitude and sign)? nc...

When a test charge qo 2 nC is placed at the origin, it experiences a force...

When a test charge qo 2 nC is placed at the origin, it experiences a force of 8 x 10-4 N in the positive y direction (a) What is the electric field at the origin? N/Cj (b) What would be the force on a charge of -4 nC placed at the origin? Nj (c) If this force is due to a charge on the y axis at y-3 cm, what is that charge (magnitude and sign)? eBook
Three charges are configured as shown. A 3.0 nC charge is located at the origin. A -5.0 nC charge is located at a point on the y axis 0.1 m from the origin.

Problem 1 Charge Configuration Three charges are configured as shown. A 3.0 nC charge is located at the origin. A -5.0 nC charge is located at a point on the y axis 0.1 m from the origin. The third charge of 4 nC is located on the x axis at a distance of 0.3 m from the origin. a) What is the magnitude and direction of the electric field at the origin? b) What is the magnitude and direction of the force on...
Question 4 A 3.86 nC charge is placed at the origin (x 0.0, y 0.0). What...

Question 4 A 3.86 nC charge is placed at the origin (x 0.0, y 0.0). What is the y-component of the electric field at the location (x -6.0 m, y 8.0 m) due to the charge at the origin? . У Enter answer here N/C 0.2N/CX Answer Your

Question 4 A 4.31 nC charge is placed at the origin ( 0.0,y0.0). What is the...

Question 4 A 4.31 nC charge is placed at the origin ( 0.0,y0.0). What is the y-component of the electric field at the location (z -6.0 m, y 8.0 m) due to the charge at the origin?
Question #7-4 points) A point charge, Qi, of 220 nC is located at the origin, and...

Question #7-4 points) A point charge, Qi, of 220 nC is located at the origin, and a second point charge, Q2, of-450 nC is located at y -0.55 m, as shown in the figure. We want to determine the x and y components of the electric field at point P, located 0.35 m to the right of Q as shown. E, 0.35 m -220 nC Sketch the electric field contributions at point P resulting from the individual charges, Qi and...
3. [20 min] Particles of charge a, and q2, are placed as shown below. 2d 91...

3. [20 min] Particles of charge a, and q2, are placed as shown below. 2d 91 -92 Follow the steps below to determine the answers to the following: (a) If G = +12 nC and -6 nC, and d = 1 cm, find the net electric field Enet at the point P, both magnitude and direction. (b) What force will a charge q3 -6 nC feel at point P? Please specify magnitude and direction.

In a rectangular coordinate system, a positive point charge q = 7.00 nC is placed at...

In a rectangular coordinate system, a positive point charge q = 7.00 nC is placed at the point x=0.150m , y=0, and an identical point charge is placed at x=−0.150m , y=0. Find the x and y components and the magnitude and direction of the electric field at the following points. a. Find the x and y components of the electric field at the origin. b. Find the magnitude of the electric field at the origin c. Find the x...
