11. Find a left-linear grammar for the language L((aaabba)).

Question

Question

-Find a left-linear grammar for the language L((aaab*ba)*).

-Find a regular grammar that generates the language L(aa* (ab + a)*).

-Construct an NFA that accepts the language generated by the grammar.

S → abS|A,

A → baB,

B → aA|bb

Answer 1

Answer #1

Lets take G-. (v.TS P), where P: ****Please mention if u got any doubts,thank you

Answer 2

Answer #2

answered by: Gavin

Answer 3

Answer #3

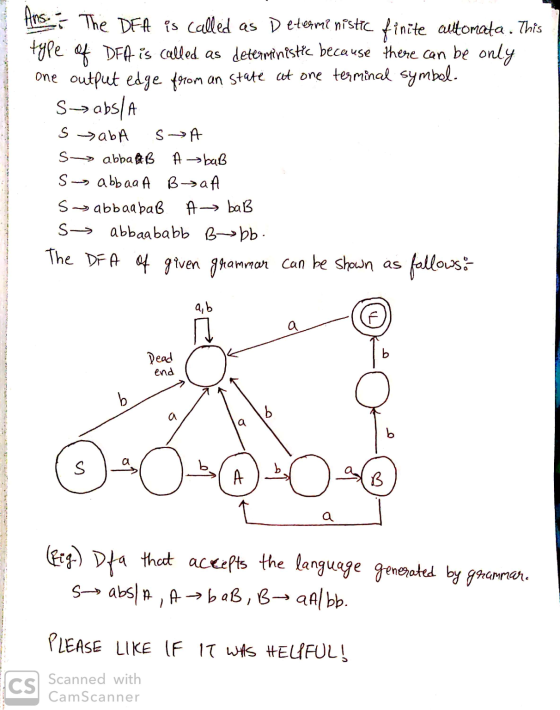

g Ans i The DFA is called as Deterministic finite alltomata. This type of Def is called as deterministic because there can be

Answer 4
