Three resistors with resistance values of 8Ω, 10Ω and 40Ω are connected in parallel. The value...

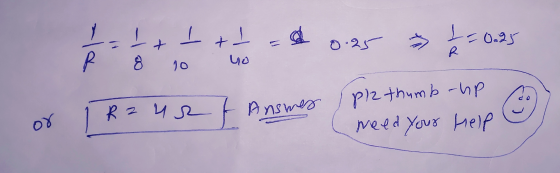

Three resistors with resistance values of 8Ω, 10Ω and 40Ω are connected in parallel. The value of the equivalent resistance of the three-resistor combination must be
Group of answer choices
4Ω.
5Ω.
6Ω.
12Ω.
50Ω.
Homework Answers
Add Answer to:
Three resistors with resistance values of 8Ω, 10Ω and 40Ω are
connected in parallel. The value...
10Ω 2.0Ω For the group of resistors connected as shown in the diagram. (a) Find the...
10Ω 2.0Ω For the group of resistors connected as shown in the diagram. (a) Find the equivalent resistance. (b) Calculate the current and voltage on each24 resistor. (c) Calculate the total power in this nctwork 60Ω 40Ω 12Ω 10Ω 50Ω
A 10Ω resistor is connected in parallel to another resistor R. The equivalent resistance of the...
A 10Ω resistor is connected in parallel to another resistor R. The equivalent resistance of the pair is 8Ω. What is the resistance R? a. 10Ω b. 20Ω c. 30Ω d. 40Ω
Two resistors connected in series have an equivalent resistance of 580 Ω. When they are connected...
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Consider the combination of resistors shown in the figure below. Please show your work (picture below)....
Consider the combination of resistors shown in the figure below.
Please show your work (picture below).
-110 points SerCP10 18.P.006 Consider the combination of resistors shown in the figure below 12.0 Ω 4.00 Ω 5.00 Ω 6.00 Ω 8.00 Ω (a) Find the equivalent resistance between point a and b. (b) If a voltage of 60.6 V is applied between points a and b, find the current in each resistor. 12 Ω 6Ω 5Ω 4Ω 8Ω Need Help?Read It
(a) The equivalent resistance of a group of resistors connected in parallel is (i) greater than...
(a) The equivalent resistance of a group of resistors connected in parallel is (i) greater than any of the resistors in the group, (ii) less than any of the resistors in the group, or (iii) neither of the above. (b) The equivalent resistance of a group of resistors connected in series is (i) greater than any of the resistors in the group, (ii) less than any of the resistors in the group, or (iii) neither of the above. Justify your...
Given a network of N resistors connected in series, as shown below, prove that the voltage...
Given a network of N resistors connected in series, as shown below, prove that the voltage d the fh resistor is given by: vjo rop, , across R1+R2+ RN R2 Calculate 12 in the circuit below 24 V 6Ω 1262 Given a network of N resistors connected in parallel, as shown below, prove that the current,列flowing in the fh resistor is given by: ij - is T- G1+G2+GN eq R/ R2 Calculate i in thecicit below 6 A 4Ω 4Ω...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Two resistors of values 6.0 and 14.0 Ω are connected in parallel. This combination in turn...
Two resistors of values 6.0 and 14.0 Ω are connected in parallel. This combination in turn is hooked in series with a 2.0-Ω resistor. What is the overall resistance of this combination?
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V...
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V is maintained between points a and b. (A) Calculate the equivalent resistance of the circuit 18.0 V 3.00 (2] 6.00 Ω| 9.00 Ω (B) Find the current in each resistor (C) Calculate the power delivered to each resistor and the total power delivered to the combination of resistors
10Ω 2.0Ω For the group of resistors connected as shown in the diagram. (a) Find the equivalent resistance. (b) Calculate the current and voltage on each24 resistor. (c) Calculate the total power in this nctwork 60Ω 40Ω 12Ω 10Ω 50Ω
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Consider the combination of resistors shown in the figure below.
Please show your work (picture below).
-110 points SerCP10 18.P.006 Consider the combination of resistors shown in the figure below 12.0 Ω 4.00 Ω 5.00 Ω 6.00 Ω 8.00 Ω (a) Find the equivalent resistance between point a and b. (b) If a voltage of 60.6 V is applied between points a and b, find the current in each resistor. 12 Ω 6Ω 5Ω 4Ω 8Ω Need Help?Read It
Given a network of N resistors connected in series, as shown below, prove that the voltage d the fh resistor is given by: vjo rop, , across R1+R2+ RN R2 Calculate 12 in the circuit below 24 V 6Ω 1262 Given a network of N resistors connected in parallel, as shown below, prove that the current,列flowing in the fh resistor is given by: ij - is T- G1+G2+GN eq R/ R2 Calculate i in thecicit below 6 A 4Ω 4Ω...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V is maintained between points a and b. (A) Calculate the equivalent resistance of the circuit 18.0 V 3.00 (2] 6.00 Ω| 9.00 Ω (B) Find the current in each resistor (C) Calculate the power delivered to each resistor and the total power delivered to the combination of resistors
