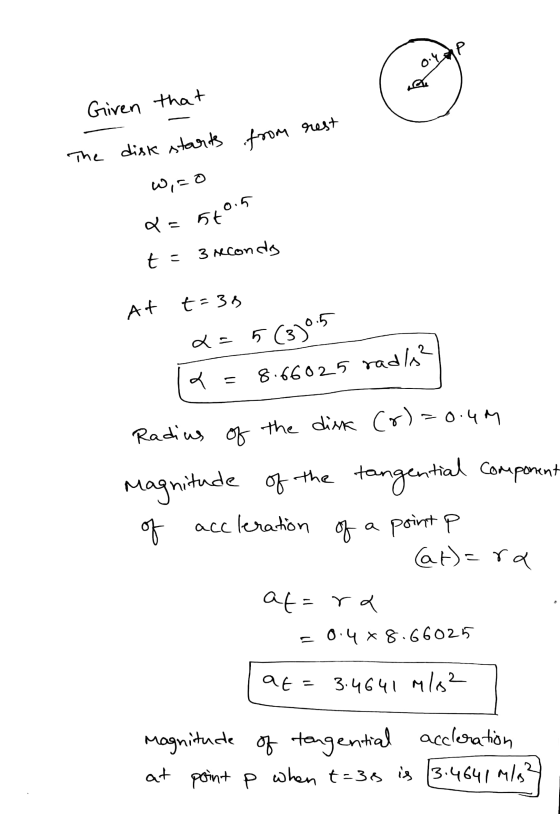

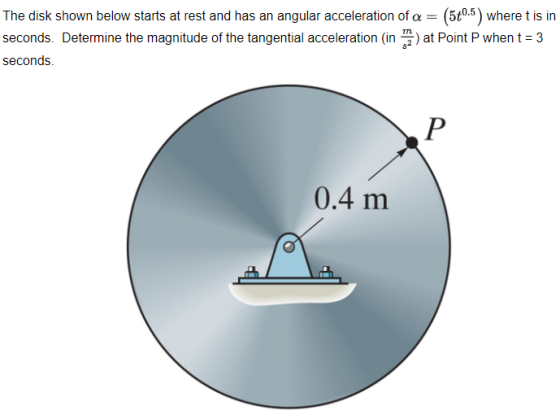

The disk shown below starts at rest and has an angular acceleration of where t is in seconds. Determine the magnitude of the tangential acceleration (in ) at Point P when t is equal to 3 seconds.
Please include four significant figures in the final answer.
Thank you! :)
Homework Answers
Add Answer to:
The disk shown below starts at rest and has an angular
acceleration of where t is in...
2. A disk starts from rest and is given an angular acceleration of a (3 t/3)...
2. A disk starts from rest and is given an angular acceleration of a (3 t/3) rad/s2 where t is in seconds. Determine the magnitudes of the normal and tangential components of acceleration of a point P on the rim of the disk whent-5s. 04 m
16-25. The disk starts from rest and is given an angular acceleration a = (1001/3) rad/s?,...
16-25. The disk starts from rest and is given an angular acceleration a = (1001/3) rad/s?, where @ is in radians. Determine the magnitudes of the normal and tangential components of acceleration of a point P on the rim of the disk when t = 4 s. 0.4 m
Question 1 points Save Answer The disk starts from rest and is given an angular acceleration...
Question 1 points Save Answer The disk starts from rest and is given an angular acceleration g 9 radswhere t is in seconds and n is a constant 2. Detemine the magnitude of the angular velocity (in rad/s) of the disk when t 3 s. 0.4 m
3. The gear with a radius of 1 inch shown below starts from rest. The angular...
3. The gear with a radius of 1 inch shown below starts from rest. The angular position of point P is given by: 0 = 2t? - t, where 0 is in radians and t in seconds. The magnitude of the acceleration of point P when t=1 second is: (10 pts) Р A) 4 in/s2 B) 5 rad/s2 C) 9 in/ sa D) 6.32 in/s? E) None of the Above ллллля T +0 D
A 39.2-cm diameter disk rotates with a constant angular acceleration of 2.8 rad/s2. It starts from rest at t = 0, a...
A 39.2-cm diameter disk rotates with a constant angular acceleration of 2.8 rad/s2. It starts from rest at t = 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) Find the angular speed of the wheel at t 2.30 s. rad/s 2.30 s (b) Find the linear velocity and tangential acceleration of P at t...
2. The disk starts from rest and is given an angular acceleration a = (21) rad/s,...
2. The disk starts from rest and is given an angular acceleration a = (21) rad/s, where 1 is in seconds. Determine the angular velocity of the disk and its angular displacement when 1 = 4 s.
The angular velocity of the disk is w = (5a + 2) rad/s where t is...
The angular velocity of the disk is w = (5a + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. A 0.8 m
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is...
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. t A 0.8 m
A disk starts spinning from rest at t=0, with a constant angular acceleration of 1.2 rad/s2....
A disk starts spinning from rest at t=0, with a constant angular acceleration of 1.2 rad/s2. The radius of the disk is 0.4 m. Consider a bug clinging to the outer edge of the disk. What is the magnitude of the acceleration felt by this bug at t=1 s? Choose the closest answer.
A 41.0-cm diameter disk rotates with a constant angular acceleration of 2.80 rad/s2. It starts from...
A 41.0-cm diameter disk rotates with a constant angular acceleration of 2.80 rad/s2. It starts from rest at t = 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) At t = 2.50 s, find the angular speed of the wheel. ______??____rad/s (b) At t = 2.50 s, find the magnitude of the linear velocity...
2. A disk starts from rest and is given an angular acceleration of a (3 t/3) rad/s2 where t is in seconds. Determine the magnitudes of the normal and tangential components of acceleration of a point P on the rim of the disk whent-5s. 04 m
16-25. The disk starts from rest and is given an angular acceleration a = (1001/3) rad/s?, where @ is in radians. Determine the magnitudes of the normal and tangential components of acceleration of a point P on the rim of the disk when t = 4 s. 0.4 m
Question 1 points Save Answer The disk starts from rest and is given an angular acceleration g 9 radswhere t is in seconds and n is a constant 2. Detemine the magnitude of the angular velocity (in rad/s) of the disk when t 3 s. 0.4 m
3. The gear with a radius of 1 inch shown below starts from rest. The angular position of point P is given by: 0 = 2t? - t, where 0 is in radians and t in seconds. The magnitude of the acceleration of point P when t=1 second is: (10 pts) Р A) 4 in/s2 B) 5 rad/s2 C) 9 in/ sa D) 6.32 in/s? E) None of the Above ллллля T +0 D
A 39.2-cm diameter disk rotates with a constant angular acceleration of 2.8 rad/s2. It starts from rest at t = 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) Find the angular speed of the wheel at t 2.30 s. rad/s 2.30 s (b) Find the linear velocity and tangential acceleration of P at t...
2. The disk starts from rest and is given an angular acceleration a = (21) rad/s, where 1 is in seconds. Determine the angular velocity of the disk and its angular displacement when 1 = 4 s.
The angular velocity of the disk is w = (5a + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. A 0.8 m
= The angular velocity of the disk is w (5t2 + 2) rad/s where t is in seconds. Determine the magnitude of the tangential component of acceleration at point A (in) when t = 0.5 seconds. t A 0.8 m
