Two parallel lengths of why are separated by 14 cm and connected at the left edge...

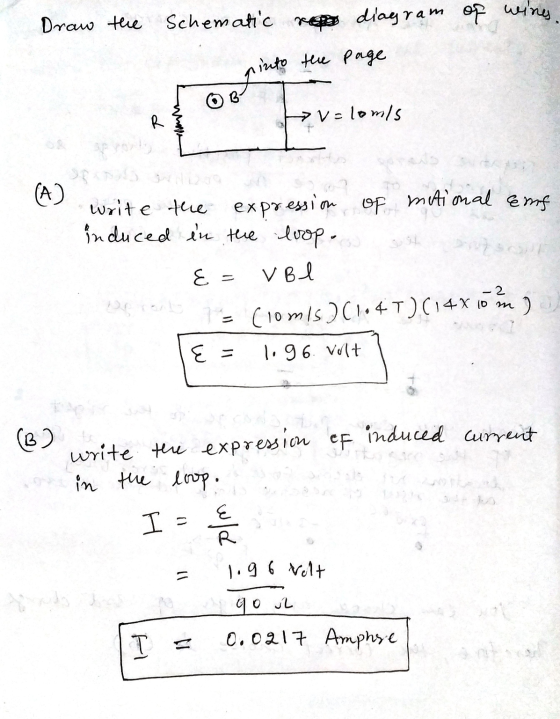

Two parallel lengths of why are separated by 14 cm and connected at the left edge by a 90 ohm resistor. Conducting bar rests on the wires perpendicular to both, and is pulled to the right at 10 m/s. A magnetic field of 1.4T points into the page through the coil, such that the magnetic field is perpendicular to the plane at the loop. A)What is the EMF induced in the loop?b) What is the current in the loop? C)What direction does a current flow through the resistor?
Homework Answers
