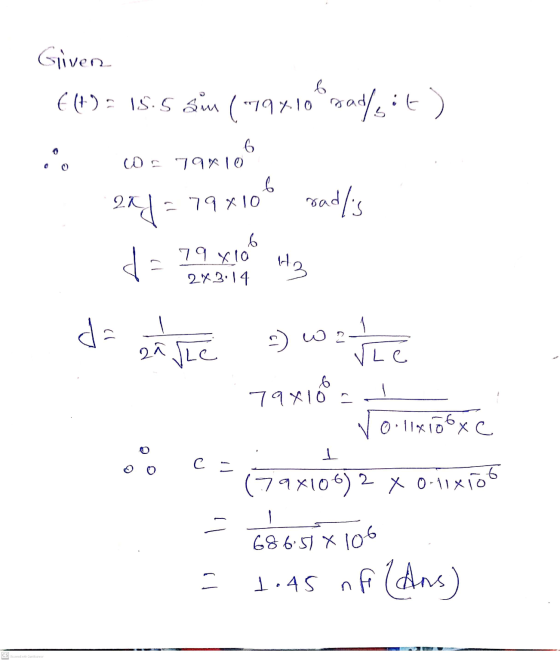

b Given f(1) = 15.5 áin (119710sady, it ) co xle and/s de H3 6 on 79810 6 244= 79x10 6 79 x 10 2%3:14 da entre wolle -) W2 V

Answer 2

Similar Homework Help Questions

[6]19. A series RLC circuit is caused to oscillate by applying an alternating emf of E(t)...

[6]19. A series RLC circuit is caused to oscillate by applying an alternating emf of E(t) = 15.5 V sin((79.0 x 106 rad/s-1)t] to it. R = 7.43 milli ohm and L = 0.11 mH. What value of capacitance would make this circuit be in resonance? Give your answer in the form "a.bc x 10^(x) F". Remember, DO NOT include the"." symbols in your answer.
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R =...

= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R = 753 12, the capacitance C L 15.0 mH. Determine the resonance frequency 0 of the circuit. 00 rad/s What is the maximum current Imax when the circuit is at resonance, if the amplitude of the AC driving voltage is 60.0 V? Imax = A
Question #6 (10%): 6.1) In a series RLC resonance circuit used for Radio, C = 150...

Question #6 (10%): 6.1) In a series RLC resonance circuit used for Radio, C = 150 pF, L = 250 uH, what is the resonance frequency (in Hz)? 6.2) In a parallel RLC resonance circuit, L = 500 uH, R=10 Ohm, resonance frequency f = 1 MHz. What is the capacitance? 6.3) In a series RLC resonance circuit, L = 30 uH, R=9.4 Ohm, C = 211 pF, input voltage V_in = 0.1 mV. What are the resonance frequency f...

An alternating source drives a series RLC circuit with an emf amplitude of 6.0 V. The...

An alternating source drives a series RLC circuit with an emf amplitude of 6.0 V. The following three elements are connected in series: a resistor of 1812, a 24 mH inductor, and a 0.50 pF capacitor. What is the amplitude of the potential difference across the inductor, in V, at resonance?
A series RLC circuit is driven by an alternating source at a frequency of 296 Hz...

A series RLC circuit is driven by an alternating source at a frequency of 296 Hz and an emf amplitude of 78.2 V. The resistance is 27.1 Ω, the capacitance is 10.5 µF, and the inductance is 25.5 mH. What is the rms potential difference across (a) the resistor, (b) the capacitor, and (c) the inductor? (d) What is the average rate at which energy is dissipated?
A series RLC circuit that has an inductance of 6 mH, a capacitance of 3 μF,...

A series RLC circuit that has an inductance of 6 mH, a capacitance of 3 μF, and a resistance of 7.2 is driven by an ideal ac voltage source that has a peak emf of 110 V (a) Find the resonant frequency 1.19 rad/s (b) Find the root-means-square current at resonance When the frequency is 8000 rad/s, find the following values. (c) the capacitive and inductive reactances (d) the impedance (e) the root-mean square current. (f) the phase angle δ...

A series RLC circuit with L = 17.5 mH, C = 3 µF, and R =...

A series RLC circuit with L = 17.5 mH, C = 3 µF, and R = 15 Ω is driven by a generator with a maximum emf of 120 V and a variable angular frequency ω. Find the resonant frequency ω0. Answer in units of rad/s.
6. (11 pts) Determine the values of R, L, and C in a series RLC circuit...

6. (11 pts) Determine the values of R, L, and C in a series RLC circuit if. 100-e3100cos(40t)+ 75sin(40t)] V and 30t Vc(t) i(t) 0.125e 30'sin(40t) A
An RLC series circuit is constructed with R = 190.0 Ω, C = 6.00 µF, and...

An RLC series circuit is constructed with R = 190.0 Ω, C = 6.00 µF, and L = 0.54 H. The circuit is connected to an AC generator with a frequency of 60.0 Hz that delivers a maximum current of 2.30 A to the circuit. (a) What is the impedance of this circuit? ___ Ω (b) What are the maximum potential differences across each of the three circuit elements (R, L, and C)? VR, max =___ V VL, max =___...

Help A series RLC circuit has components with the following values: L = 16.0 mH. C...

Help A series RLC circuit has components with the following values: L = 16.0 mH. C = 82.0 nF, R = 15.0 ohm, and Delta V_max = 100 V, with Delta v = Delta V_max sin omega t. Find the resonant frequency of the circuit. 4.3939e03 Resonance occurs when the impedance is at a minimum. kHz Find the amplitude of the current at the resonant frequency. 6.67 A Find the Q of the circuit. 2.68 How is the Q related...
