A body is experiencing a translation of {10 i} m/s and a rotation of {2 k}...

Question

Question

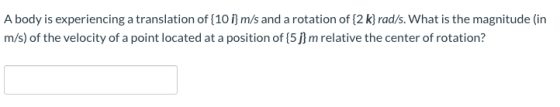

A body is experiencing a translation of {10 i} m/s and a rotation of {2 k} rad/s. What is the magnitude (in m/s) of the veloc

engineering Mechanical-Engineering

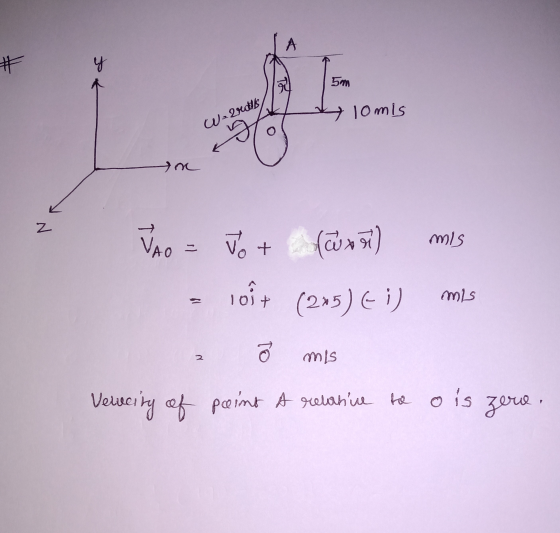

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A body is experiencing a translation of {10 i} m/s and a rotation of {2 k}...

A body is experiencing a translation of {10 i} m/s and a rotation of {2 k} rad/s. What is the magnitude (in m/s) of the velocity of a point located at a position of {5 j} m relative the center of rotation?
The instantaneous center of zero velocity for the body is located at point IC (0.5 m,...

The instantaneous center of zero velocity for the body is located at point IC (0.5 m, 2 m). If the body has an angular velocity of 4 rad/s, as shown, determine the velocity of B with respect to A. 10. IC ω= 4 rad/s 0.5 m 1.5 m be 0.5 m 1.5 m
In pure rotation, what is the velocity (in m/s) of a point on the edge of...

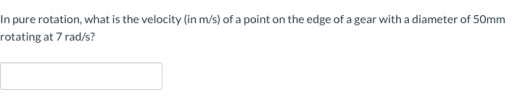

In pure rotation, what is the velocity (in m/s) of a point on the edge of a gear with a diameter of 50mm rotating at 7 rad/s?
